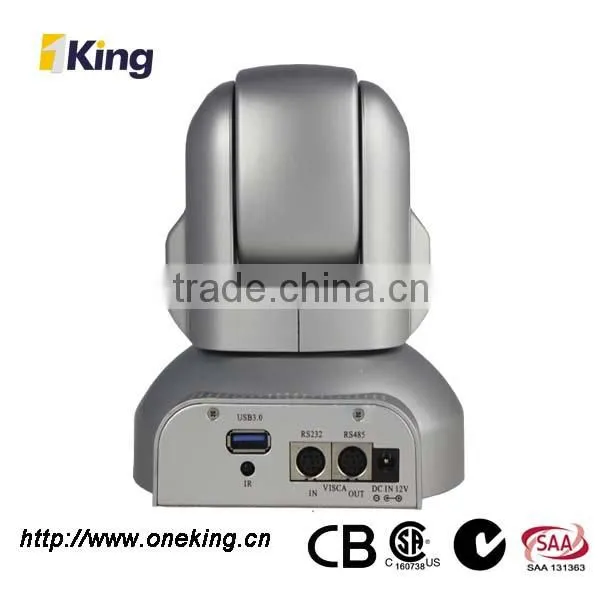

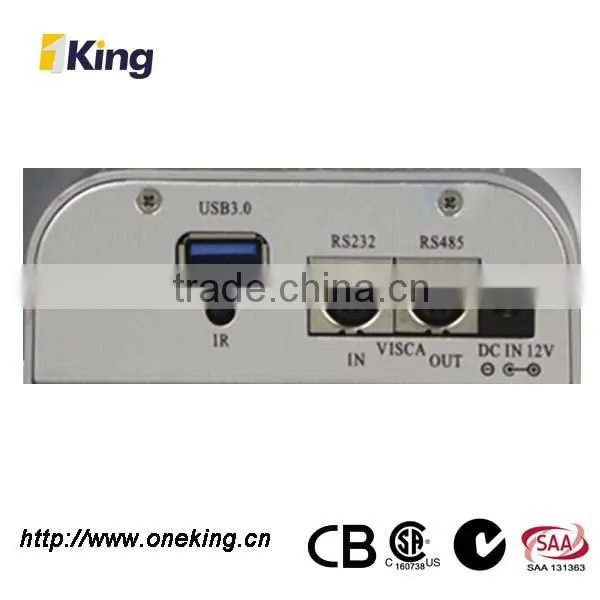

Help CenterUSB3.0 Web Conference PTZ 1080p@30fps | UVC/VISCA Control| 10x Optical Zoom | HOV 51.8 Degree| USB3.0 YUY2,micro Usb Camera
Related Products
-
HD 1080p PTZ Video Conference Camera Compatible With W7 W8 Linux MAC OS Web Video Conference SystemNegotiableMOQ: 1 Piece -
HD SDI Video Conference PTZ Camera With 20x Optical Zoom For Web Conferencing SystemUS$ 2199.00 - 2199.00MOQ: 1 Piece
-
HD HDMI Conference Camera Compatible With W7 W8 Linux MAC OS Web Video Conference SystemNegotiableMOQ: 1 Piece
-
HD PTZ Conference Camera With 20x Optical Zoom For Web Conferencing SystemUS$ 2199.00 - 2199.00MOQ: 1 Piece
-
HD PTZ Video Camera Supports VISCA Protocol For PTZ Control Using RS232 RS485 ProtocolsUS$ 899.00 - 899.00MOQ: 1 Piece
TelePresence Precision Camera for tele conference room and distance learning
Features:
- Private Tooling design High Definition PTZ camera
- Fast and smooth video handling
- Work & Standby LED indicator
- Speed Match
- Auto/Manual focus/brightness/WB
- RS-232C/VISCA Protocol
- Lens/Dome OSD menu
- Boundary scanning
- Swap video format button
- USB3.0 Video output
- Pin 6 to receive IR signal
Performance:
- 1/2.5"Primary CMOS, 2.1 M compatible
- 10xoptica zoom
- f = 4.5 –45 mm F1.8 – 2.2
- HOV 51.8° degree
- 1920x1080p@30
- Pan ±175°
- Tilt±120°
- 64 preset positions
- 4 cruise lines
- DC 12V, 2A
Dimension:
- L 124mm x W 120mm x H145mm
- 220x175x220mm (Package)
- N. Weight: 1.4kgs
- G. Weight: 1.7kgs
Installation:
- Desktop
- Ceiling mount
- Standard Tripod accessory
video conference camera specifications:
|
Image Sensor |
Sensor |
1/3" Primary CMOS, 2.1 M compatible |
Minimum Scene illumination |
0.1Lux at |
|
White Balance |
AUTO/Manual |
|
Gain Control |
AUTO |
|
Back-light compensation |
ON/OFF |
|
Electronic shutter |
1/5~1/4000S |
|
S/N Ratio |
>50db |
|
Lens |
Focus |
AUTO |
Iris |
AUTO/Manual |
|
Zoom |
10 X Optical ZOOM |
|
f = 5 – 50mm F1.8 – 2.2 | ||
Horizontal Angle of view |
51.8 |
|
Video Output |
USB3.0 |
|
Video format |
1080P@30,1080P@25, 1080I@60,1080I@50,720P@60,720P@50 |
|
Control Decoder |
EIA/RS-485 |
|
Communication |
EIA/RS-232(Bidirectional) |
|
PTZ Control Protocol |
VISCA,PELCO-P,PELCO-D |
|
Baud Rate |
9600/38400 bps |
|
Patrol tours |
4 |
|
Preset |
64 |
|
Save status after Power off |
Support |
|
Speed Matching Function |
Support |
|
OSD Menu |
Support |
|
Image Auto Flip |
Support |
|
Pan Speed |
0-100 degrees/s |
|
Tilt Speed |
0-80 degrees/s |
|
Pan Rotation Angle |
359degrees |
|
Tilt Rotation Angle |
240degrees |
|
Auto Pan Scan |
Support |
|
Boundary Scan |
0-359degrees(Programmable) |
|
Remoter Control |
IR Wireless remote control P/T/Z |
|
Power |
DC12V ±10% 1.2A |
|
Operation Temperature |
-10~60 |
|
Environmental humidity |
0-95%RH(non-condensation) |
|
Length X width X high |
124x120x145mm/220x175x220mm(NET/PACKAGE) |
|
Weight |
800g/1300g(NET/PACKAGE) |
|
Accessories kits in package:
- 1x HD 380 Video Camera
- 1x DC 12V/2A Power Adaptor
- 1x User’s manual
- 1x Installation brackets & screws
- 1xIR Remote Controller
