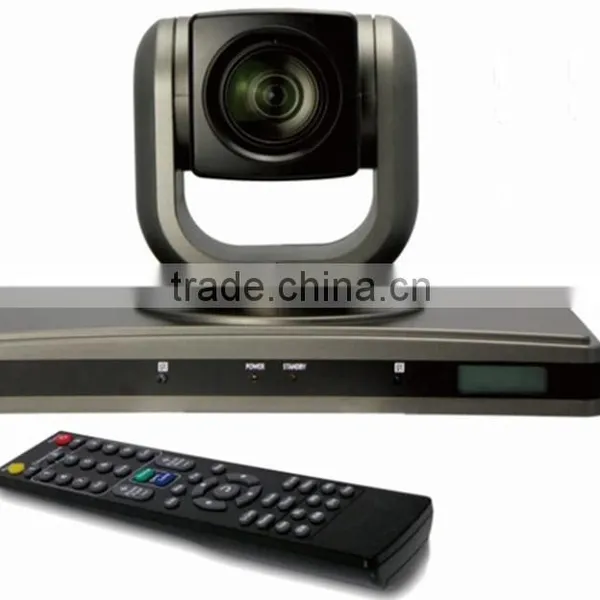

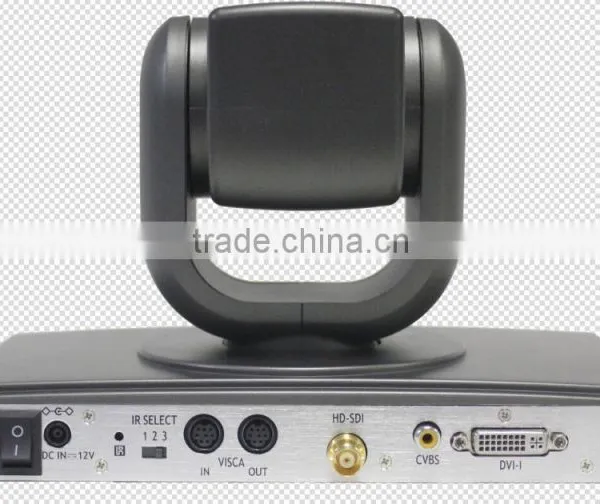

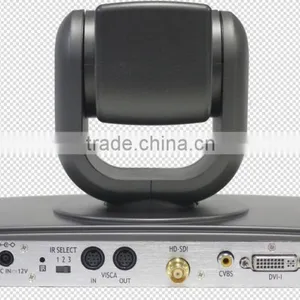

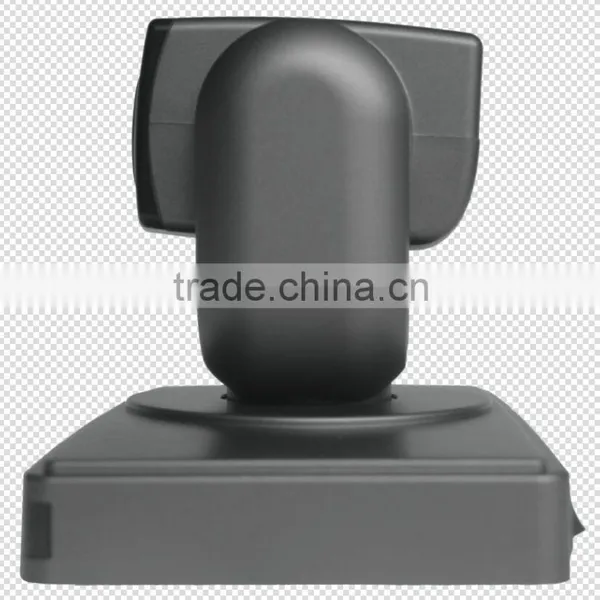

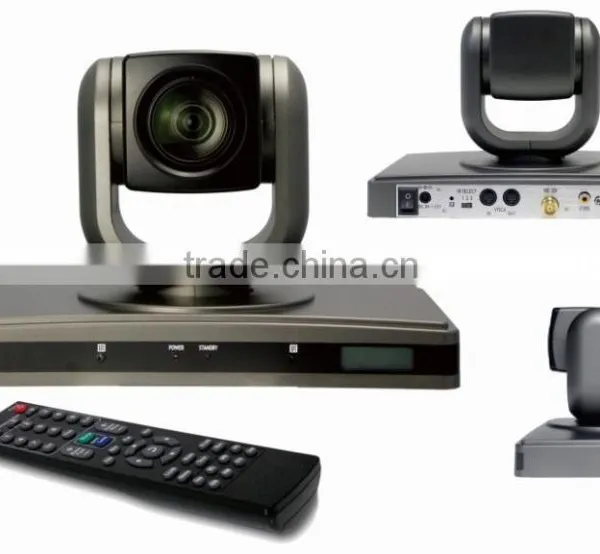

1080P60/50 HD830 Series Full HD High Performance Wide View Angle Video Conference Camera
Features:
- Private Tooling design High Definition PTZ camera
- Fast and smooth video handling
- Power ON-OFF switch
- Work & Standby LED indicator
- Speed Match
- Auto/Manual focus/brightness/WB
- RS-232C/VISCA Protocol
- Lens/Dome OSD
- Boundary scanning
- Standby & wakeup status
- Swap video format
- DVI/HDMI Video output
Performance:
- 1920x1080pixels progressive @30fps
- 30x optical, 12x digital zoom
- F=4.3-129mmF1.6-4.7
- HOV 63.7 degree
- 1/2.8” Type Exmor CMOS 2.14 Mega Pixel Sensor
- Pan ±177.5 degree
- Tilt +90 degree, -45degree
- 64 preset positions
- 4 cruise lines
- DC 12V, 2A
Dimension:
- L 250mm x W 140mm x H154mm
- N. Weight: 2.6kgs
- G. Weight: 4.8kgs
Installation:
- Desktop
- Ceiling mount
- Standard Tripod accessory
Video conference camera specifications:
Model No. |
HD830-HDMI-SN7500 |
|
Image |
Image Sensor |
1/2.8" Type Exmor CMOS |
Effective Pix |
2.14 Megapixel |
|
Min. Illumination |
0.05Lux |
|
White balance |
Auto/Manual |
|
Gain control |
Auto/Manual |
|
Backlight compensation |
On/Off |
|
Shutter speed |
1/1 - 1/10,000S |
|
S/N ratio |
>50db |
|
Lens |
Focus |
f=4.3-129mmF1.6-4.7 |
Iris |
Auto/Manual |
|
Lens |
30 Optical x 12 digital zoom |
|
Horizontal view angle |
63.7 |
|
Video output |
HDMI,DVI |
|
Signal system |
1080P@60,1080P@50, 1080P@30,1080P@25, |
|
Control terminal |
EIA/RS232C,EIA/RS485(Bidirectional) |
|
Control Protocol |
VISCA,PELCO-D |
|
baud rate |
9600/38400bps |
|
Patrol line |
4 cruise sequence |
|
Preset position |
64 preset positions |
|
Speed Match |
Pan/Tilt movement speed depends on camera module zoom in/out |
|
OSD Menu |
Access to OSD Menu and adjust camera module parameters |
|
Image auto flip |
Support Horizontal/Vertical image flip |
|
Pan movement speed |
1-200°/Second |
|
Tilt movement speed |
1-150°/Second |
|
Pan movement range |
Pan: 0-355° |
|
Tilt movement range |
Up: 90°, Down: 45° |
|
Pan scanning automatically |
Support Pan scanning automatically |
|
Boundary scanning |
0-355°(programmable) |
|
Remote controller |
IR Wireless Remote controller P/T/Z |
|
Power supply |
DC12V,2A |
|
Work Temperature |
0-50°C |
|
Humidity |
0-95%RH |
|
LxWxH |
250mm x 140mm x 154mm |
|
Weight |
1380g |
|
Accessories kits in package:
- 1x HD 830-HDMI Video Camera
- 1x DC 12V/2A Power Adaptor
- 1x User’s manual
- 1x Installation brackets & screws
- 1xIR Remote Controller
