PTZ Dome Full HD Video Conference Camera With HDMI/HD-SDI Interface

Name: PTZ Dome Full HD Video Conference Camera With HDMI/HD-SDI Interface
Brand: Oneking/OEM
SKU: 110425933
Availability: InStock

US$ 99 - 999 MOQ: 10 Sets

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Oneking/OEM

Model Number:

HD-380

Shenzhen Oneking Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Oneking/OEM

Model Number HD-380

Type Other, HD Video Conference Camera

Style Other, PTZ Speed Dome

Sensor Other, 1/2.5 model,primary color CMOS,2.1M compatible, CMOS

Technology Pan / Tilt / Zoom

Special Features Other, For Video Conference system

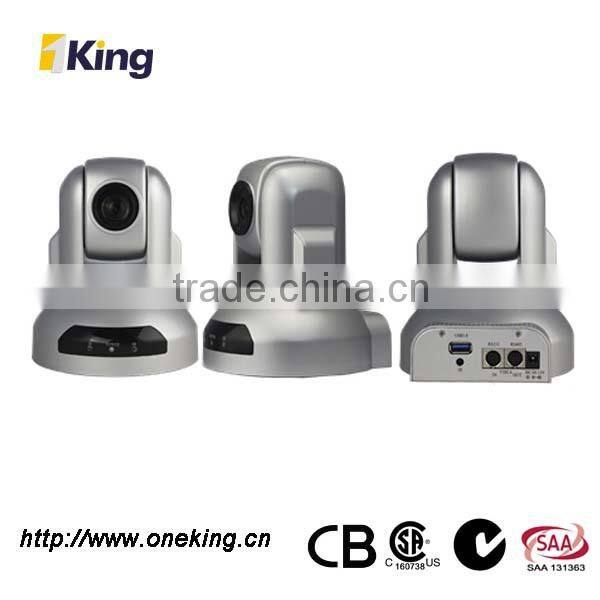

PTZ Dome Full HD Video Conference Camera with HDMI/HD-SDI Interface

Product Description

Image Sensor	Sensor	1/2.5" Primary CMOS, 2.1 M compatible
	Minimum Scene illumination	1.0Lux at F1.8
	White Balance	AUTO/Manual
	Gain Control	AUTO
	Back-light compensation	ON/OFF
	Electronic shutter	1/5~1/4000S
	S/N Ratio	>50db
Lens	Focus	AUTO
	Iris	AUTO/Manual
	Zoom	10 X Optical ZOOM
		f = 4.5 – 45mm F1.8 – 2.2
Horizontal Angle of view		48.4

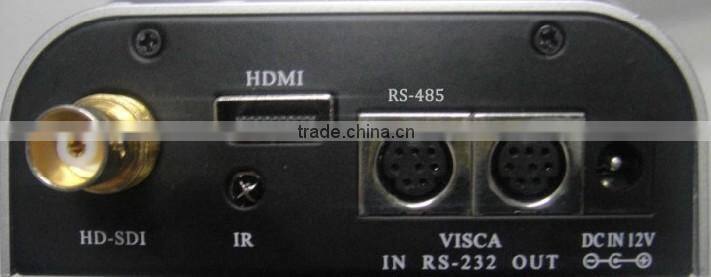

Video Output		HD-SDI
		HDMI
Video format		1080P@30,1080P@25, 1080I@60,1080I@50,720P@60,720P@50
Control Decoder		EIA/RS-485
Communication		EIA/RS-232(Bidirectional)
PTZ Control Protocol		VISCA,PELCO-P,PELCO-D
Baud Rate		9600/38400 bps
Patrol tours		4
Preset		64
Save status after Power off		Support
Speed Matching Function		Support
OSD Menu		Support
Image Auto Flip		Support
Pan Speed		0-100 degrees/s
Tilt Speed		0-80 degrees/s
Pan Rotation Angle		359degrees
Tilt Rotation Angle		240degrees
Auto Pan Scan		Support
Boundary Scan		0-359degrees(Programmable)
Remoter Control		IR Wireless remote control P/T/Z
Power		DC12V ±10% 1.2A
Operation Temperature		-10~60
Environmental humidity		0-95%RH(non-condensation)
Length X width X high		124x120x145mm/220x175x220mm(NET/PACKAGE)
Weight		800g/1300g(NET/PACKAGE)
