Wide angle high quality hd video conference network auto tracking ptz ip camera
Features of Bluetooth web video conference camera :
{ Private Tooling design
{ High Definition PTZ camera
{ Fast and smooth video handling
{ Power ON-OFF switch
{ Work & Standby LED indicator
{ Speed Match
{ Auto/Manual focus/brightness/WB
{ RS-232C/VISCA Protocol
{ Lens/Dome OSD
{ Boundary scanning
{ HD-SDI, DVI-I Video output
Performance of Bluetooth web video conference camera :
{ 1920x1080 pixels@60fps
{ 20x optical ZOOM
{ F=4.7-94 mm F1.6-F3.5
{ HOV 3.2-58.7 degree
{ 1/2.8” Type CMOS 2.0 Mega Pixel Sensor
{ Pan ±177.5 degree
{ Tilt +90 degree, -45 degree
{ 64 preset positions
{ 4 cruise lines
{ DC 12V, 2A
Dimension of Bluetooth web video conference camera :
{ L 145mm x W 148mm x H161mm
{ N. Weight: 1.2 kgs
{ G. Weight: 2.4 kgs
Installation of Bluetooth web video conference camera :
{ Desktop
{ Ceiling mount
{ Standard Tripod accessory
Bluetooth web video conferencing camera specifications:
Model No. |
HD920-SDI-K5 |
|
Image |
Image Sensor |
1/2.8” Progressive CMOS |
Effective Pix |
2.0 Megapixel |
|
Min. Illumination |
0.5 Lux at F1.6 |
|
White balance |
Auto/Manual |
|
Gain control |
Auto/Manual |
|
Backlight compensation |
On/Off |
|
Shutter speed |
1/1 - 1/10,000S |
|
S/N ratio |
>50 db |
|
Lens |
Focus |
f=4.7-94 mm |
Iris |
Auto/Manual |
|
Lens |
20x Optical zoom |
|
Horizontal view angle |
3.2°(T) ~ 58.7°(W) |
|
Video output |
HD-SDI, DVI |
|
Signal system |
1080P60, 1080P50,1080P30,1080P25,1080I60,1080I50, 720P60,720P50,720P30,720P25, |
|
Control terminal |
EIA/RS232C,EIA/RS485(Bidirectional) |
|
Control Protocol |
VISCA, PELCO-D |
|
baud rate |
9600/ 38400 bps |
|
patrol line |
4 cruise sequence |
|
preset position |
64 preset positions |
|
Speed Match |
Pan/Tilt movement speed depends on camera module zoom in/out |
|
OSD Menu |
Access to OSD Menu and adjust camera module parameters |
|
Image auto flp |
Support Horizontal/Vertical image flip |
|
Pan movement speed |
1-200°/Second |
|
Tilt movement speed |
1-150°/Second |
|
Pan movement range |
Pan: 0-355° |
|
Tilt movement range |
Up: 90°, Down: 45° |
|
Pan scanning automatically |
Support Pan scanning automatically |
|
Boundary scanning |
0-355°(programmable) |
|
Remote controller |
IR Wireless Remote controller P/T/Z |
|
Power supply |
DC12V,2A |
|
Work Temperature |
0-50℃ |
|
Humidity |
0-95%RH |
|
LxWxH |
145mm x 148mm x 160mm |
|
Weight |
915g |
|

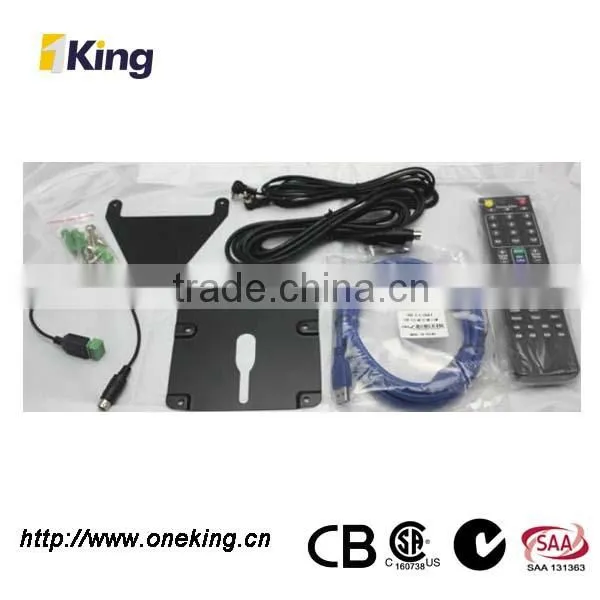

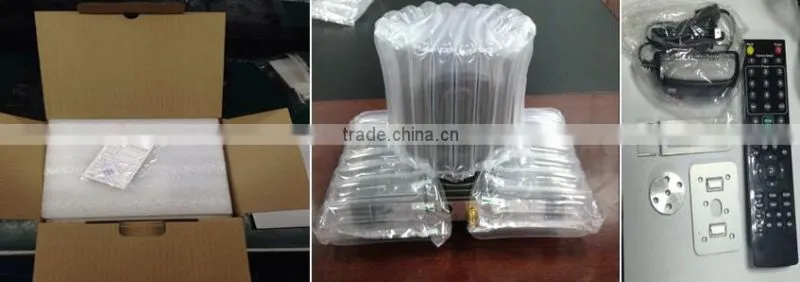

Accessories kits in package of Bluetooth web video conference camera :
1x HD920 PTZ Camera
1x DC 12V/2A Power Adaptor
1x User’s manual
1x 1.5 m DVI-HDMI Cable
1x Installation brackets & screws
1x IR Remote Controller
We are the professional manufacturer of Color Video Full HD PTZ Camera----
Symptom |
Cause |
Remedy |
The power of the camera is not turned on. |
The supplied AC power adaptor is not connected to the DC IN 12V jack firmly, or the AC power cord is not inserted firmly into the AC power adaptor or the AC outlet. |
Insert the power cord firmly as far as it will go. |
Not Turn On the Power switch as “ON”. |
Turn On the Power switch as “ON”. |
|
Insufficient frame rate detected |
Cannot recognize USB 3.0 connection, but the USB 2.0 speed. |
Make sure you connected USB 3.0 Cable, USB 3.0 connect, and firmly connect to USB 3.0 interface. |
Pan,tilt or zoom cannot be operated. |
Any menu is displayed on the monitor screen. |
Press the “Dome OSD” OR “Lens OSD” on the Camera remote control Unit to turn off the menu from the monitor screen. |
The panning or tilting range is limited |
Pan/Tilt movement range is ± 45 degree. |
|
The Remote Commander does not work. |
The Camera Select button you pressed on the Remote Commander does not match the number set with the IR SELECT switch on the camera. |
Press the Camera Select button corresponding to the IR SELECT SWITCH setting on the Camera. |
Used out of battery |
Change new battery (AA x 2) |
|

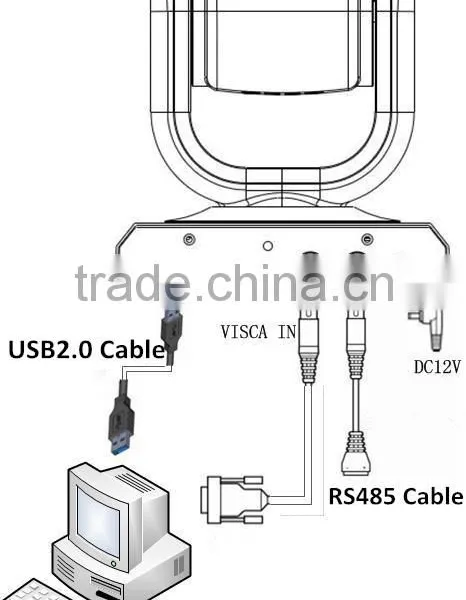

The VISCA control is not available with a computer connected to the camera. |
The computer is not correctly connected to the camera. |
Make sure the connection between the computer and camera is made correctly. Check that the VISCA control setting (RS-232C or RS-422) and the baud rate setting (9600 bps or 38,400 bps) are properly made with the BOTTOM switch on the bottom of camera and the COM Port which configured in your computer. |
The camera cannot be operated at all. |
Pull out the plug of the power cord from the AC outlet, then reinsert it into the AC outlet after a while. |
