Home > Products > Tractor 30hp-60hp > 18hp-45hp Small Mini Tractors

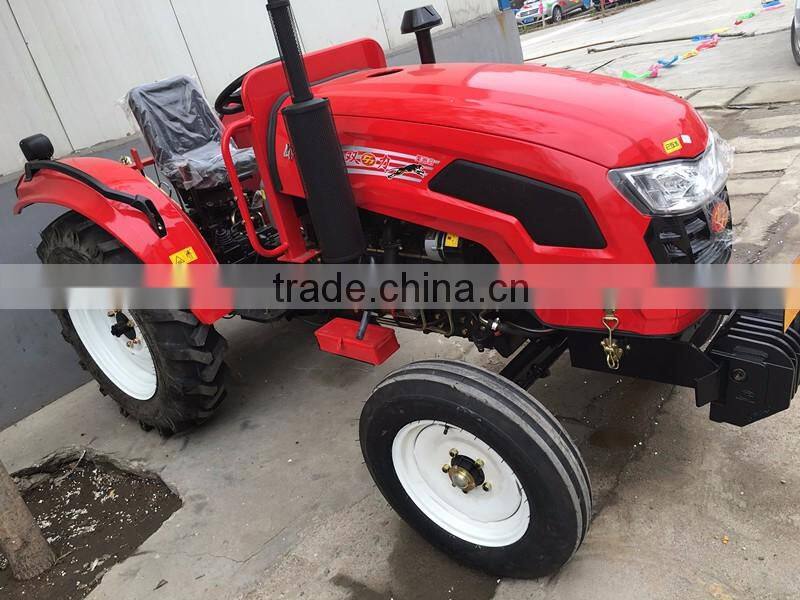

18hp-45hp Small Mini Tractors
US$ 7,000 - 14,000
/ Set
1 Set(Min. Order)
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hot!!! Small 4 Wheel Drive Tractors 35hp With Best Price
-
4WD Farm Tractor Wheel Type 4x4 Compact Tractor With Loader
-
China 50 hp Tractor Mini Garden Tractors and Equipments
-
Jinan Lianyi 4x4 Mini 60 hp Tractor Parts Suppliers High Quality
-
Reliable Supplier 60 hp Tractor Mini Garden Tractors With Cabin From China Lianyi
-
Professional Manufacturer 50 hp Tractor Chinese Tractors Prices
Product Details
| Condition | New | Type | Wheel Tractor | |
| By wheel | 4WD | Usage | Farm Tractor | |
| Drive Type | Gear Drive | Power(W) | 25.7kW | |
| Certificate | CE | Brand Name | mini tractors | |
| Model Number | LY354 mini tractors china | Place of Origin | Shandong, China | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Top qulaity 30hp-40hp Mini tractor
Features of mini tractor
1. Domestic famous diesel engine, strong power, low fuel consumption.
2. Double clutch, more reliable usage, adopting to different operating circumstances.
3. Advanced reliable gearbox has has a reasonable velocity distribution, synchronized shift, convenient operation, and high work efficiency.
4. Apoting full hydraulic steering, reliable air brake system, which are very easy and simple to handle.
5. Wheel track is adjustable, which can meet the special needs of various regions.
6. Reliable front and rear axle design.
7. This series of products has suitable power, compact structure, high transmission effciency, light weight, and simple maintenance. Its super performance could meet your requirements.
Technical specification
| MODEL | LY300 | LY304 | LY350 | LY354 | LY400 | LY404 |
| Drive type | 4*2 | 4*4 | 4*2 | 4*4 | 4*2 | 4*4 |
| GENERAL SPECIFICATION | ||||||
| Length×Width×Heigh (mm) | 3085*1352*1258 | 3085*1190*(1267-1358) | 3185*1352*1258 | 3185*1190*(1267-1358) | 3185*1352*1258 | 3185*1190*(1267-1358) |
| Constructional weight(KG) | 1070 | 1210 | 1150 | 1290 | 1150 | 1290 |
| Ttraction force (KN) | ≥6.5 | ≥7.0 | ≥7.0 | ≥8.0 | ≥7.5 | ≥9.0 |
| Wheel base (mm) | 1880 | 1880 | 1880 | 1880 | 1880 | 1880 |
| Front wheel tread (mm) | 1315 | 1315 | 1315 | 1315 | 1315 | 1315 |
| Rear wheel tread (mm) | 930-1200 | |||||
| P.T.O Max.power (Kw) | 18.8 | 18.8 | 21.8 | 21.8 | 25 | 25 |
| Ground clearance (mm) | 2WD:below of transmission case238.5(332.5);4WD:below of transmission case 210(304) | |||||
| ENGINE | ||||||
| Type | 3T30 | 3T30 | 4L22BT | 4L22BT | 4L23BT | 4L23BT |
| Rated power | 22.1 | 25.7 | 29.4 | |||
| Rated revolution (r/min) | 2350 | 2350 | 2400 | |||
| Max.torque (n.m) | ≥100 | ≥124 | ≥135 | |||
| TRANSMISSION | ||||||
| Clutch | 9 inch,single,dry,often combined,double-clutch, foot pedal contral | |||||
| The number of gearbox | 12F+4R,12F+12F | |||||
| WORKING DEVICE | ||||||
| Lifter tilling depth control | Position control and floating control | |||||
| Max.lifting capacity (KN) | ≥6.62 | |||||
| Suspension type | 1 class ,rear 3 point suspension | |||||
| Speed of P.T.O.(r/min) | 540,760,850,1000 for choicing | |||||
| | | |
| 18hp-45hp without cab | 120hp-150hp with cab or wihtout cab | Mini excavator | OEM/ODM farm implements |
