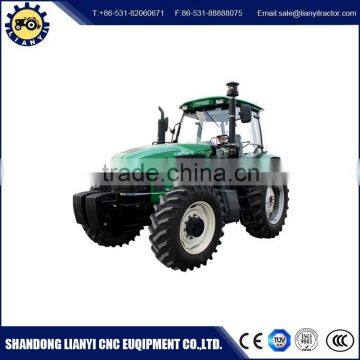

Hot!!1304 tractor china supplier
Features of 1304 tractor
1. Domestic famous diesel engine, strong power, low fuel consumption.
2. Double clutch, more reliable usage, adopting to different operating circumstances.
3. Advanced reliable gearbox has has a reasonable velocity distribution, synchronized shift,
convenient operation, and high work efficiency.
4. Apoting full hydraulic steering, reliable air brake system, which are very easy and simple to handle.
5. Wheel track is adjustable, which can meet the special needs of various regions.
6. Reliable front and rear axle design.
7. This series of products has suitable power, compact structure, high transmission effciency, light weight,
and simple maintenance. Its super performance could meet your requirements.
| Technical Specification | ||||||
| TRACTOR MODEL | LY1204 | LY1254 | LY1304 | LY1354 | LY1404 | LY1504 |
| Drive type | 4*4 | 4*4 | 4*4 | 4*4 | 4*4 | 4*4 |
| GENERAL SPECIFICATION | ||||||
| Length×Width×Heigh (mm) |
4700*2160 *2870 |
4700*2160 *2870 |
4925*2335 *3160 |
4925*2335 *3160 |
5050*2335 *3070 |
5050*2335 *3070 |
| Ttraction force (KN) | 25.8 | 26.8 | 28 | 29 | 30 | 32 |
| Steering | Hydraulic | |||||
| Wheel base (mm) | 2520 | 2520 | 2560 | 2560 | 2560 | 2560 |
| Front wheel tread (mm) | 1610-1950 |
1610-1950 | 1784-2202 | 1784-2202 | 1790-2200 | 1790-2200 |
| Rear wheel tread (mm) | 1608-2020 |
1608-2020 | 1620-2420 | 1620-2420 | 1620-2420 | 1620-2420 |
| P.T.O Max.power (Kw) | 75.6 | 78.8 | 82 | 85.1 | 87.7 | 94 |
| Ground clearance (mm) | 485 | 485 | 485 | 485 | 485 | 485 |
| ENGINE | ||||||
| power (Kw) | 88.2 | 91.8 | 95.6 | 99.2 | 102.9 | 110.3 |
| Bore*Stroke (mm) | ||||||
| Rated revolution (r/min) | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 |
| Max.torque (n.m) | 606 | 606 | 641 | 641 | 676 | 676 |
| Speed of Max.torque | ||||||
| TRANSMISSION | ||||||
| Clutch | Dry,independent operation of cluth dual-stage cluth | |||||
| Gear box | 12F+12R 16F+8R | |||||
| WORKING DEVICE | ||||||
| Lifter tilling depth control | Forced and position buried,floating control | |||||
| Max.lifting capacity (KN) | 21.2 | 21.2 | 22.9 | 22.9 | ≥28 | ≥28 |
| Suspension type | Class 2 or 3-point hitch | |||||
| Speed of P.T.O.(r/min) | Standard:760/1000;optional:540/1000,760/850,540/760 Standard:8teeth;6teeth or 21 teeth | |||||
|
|
|
|
| 18hp-45hp without cab | 120hp-150hp with cab or wihtout cab | Mini excavator | OEM/ODM farm implements |
