We are professional manufacturer of HD-SDI PTZ Indoor Ceiling-
«Product Description»
Product Name: Plug And Play IP Camera Network Security Tracking Surveillance HD-SDI PTZ Indoor Ceiling
Brief Description Of HD-SDI PTZ Indoor Ceiling
Features Of HD-SDI PTZ Indoor Ceiling
- Private Tooling design High Definition PTZ camera
- Fast and smooth video handling
- Auto/Manual focus/brightness/WB
- Lens/Dome OSD menu
- Boundary scanning
- 10M/100M LAN Video output
Performance Of HD-SDI PTZ Indoor Ceiling
1. Full HD (1920x1080 30p);
2. 10x optical zoom auto focus lens
1/3" Sony CMOS, 2.1 M compatible
f=5-50mm F/2
3. H.264/MJPEG compression
4. G.711 audio compression
5. Two-way audio supported, broadcast system
6. Support RTSP, VLC(PS/TS) stream media protocol
7. Support auto Day/Night
8. Pan: 0°~360°, Tilt: 0°~180°
9. Pan speed: 0.01°-180°/sec, Tilt speed: 0.01°-120°/sec
Installation Of HD Dome Cameras Surveillance
- Desktop
- Ceiling mount
- Standard Tripod accessory
Specification Sheet Of HD Dome Cameras Surveillance
Image Sensor | Sensor | 1/3” SONY CMOS |
Effective Pixels | 2.1 Mega Pixel | |
White Balance | Auto /Manual /Indoor /Outdoor | |
Minimum Illumination | Color : 0.1Lux B/W: 0.01Lux | |
Back-light compensation | On/Off | |
S/N Ratio | >50db | |
Shutter speed | 1/1s - 1/10,000s | |
S/N ratio | >50dB | |
Lens | Focus | f=5-50mm F/2 |
Hov | 5.86-51.8 Degree | |
Zoom | 10x Optical Zoom | |
Video Output | 10M/100M LAN | |
Network protocol | PPPOE,TCP/IP,DHCP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,STP,DDNS,DNS | |
Video output formats | 1080P30,1080P25 | |
Audio Input | MIC | |
Audio Output | linear | |
Communication control interface | RS-485 | |
Communication control protocol | PELCO-D | |
Baud Rate | 9600bps | |
Preset | 64 | |
Patrol tours | 4 | |
Speed Matching Function | Pan/Tilt movement speed depends on camera module zoom in/out | |
OSD Menu | Access to OSD Menu and adjust camera module parameters | |
Image Auto Flip | Support Horizontal/Vertical image flip | |
Pan Speed | 0-120 degrees/s | |
Tilt Speed | 0-100 degrees/s | |
Pan Rotation Angle | 360 degrees | |
Tilt Rotation Angle | + 90 degrees, - 45 degree | |
Auto Pan Scan | Support | |
Boundary Scan | 0-359 degree(Programmable) | |
Remoter Control | IR Wireless remote control P/T/Z | |
Power | DC12V±10%,1.2A | |
Operation Temperature | 0℃~50℃ | |
Length X width X high | 145mm×148mm×160mm | |
Weight | 915g | |

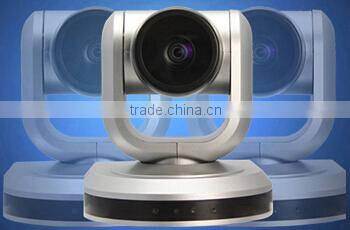

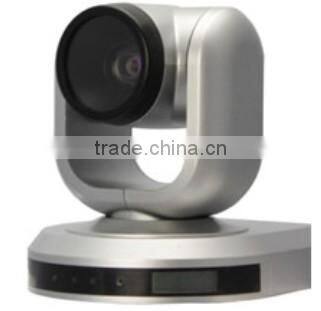

Image Of HD-SDI PTZ Indoor Ceiling

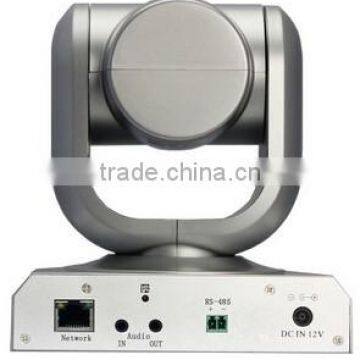

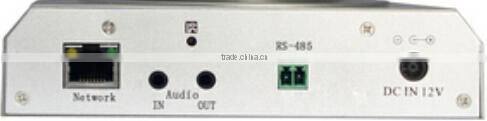

Interface Of HD-SDI PTZ Indoor Ceiling
Payment Of HD-SDI PTZ Indoor Ceiling
Oneking Of HD-SDI PTZ Indoor Ceiling
Oneking introduction |
Oneking Technologies was found in 2005, a high-tech enterprises which has 110 staff, engaged in designing, producing and marketing of the professional Color Video Conferencing cameras and video surveillance products over 7-year. Since 2001 we had took part in research of network video & audio products in the Institute of Shenzhen University telecommunications, and keep pace with the most advanced Technologies. |
Guarantees/Warranties/Terms and Conditions
1. Quality is guaranteed within 2 years and delivery is on time.
2. T/T, Western Union or Paypal are accepted.
3. 3-5 working days since payment receipt;
4. Traking No. will be sent to you after delivery. And you will get every important shipping status by email.
5. We ensure our goods with the same quality as the approved one. If not, we will remake them for you.
What is beneficial for you ? |
FREE advantages 2. A full quotation as your required will be offered in 24 hours; 3. 20 designers team-workers will give you ideas for your products; |
