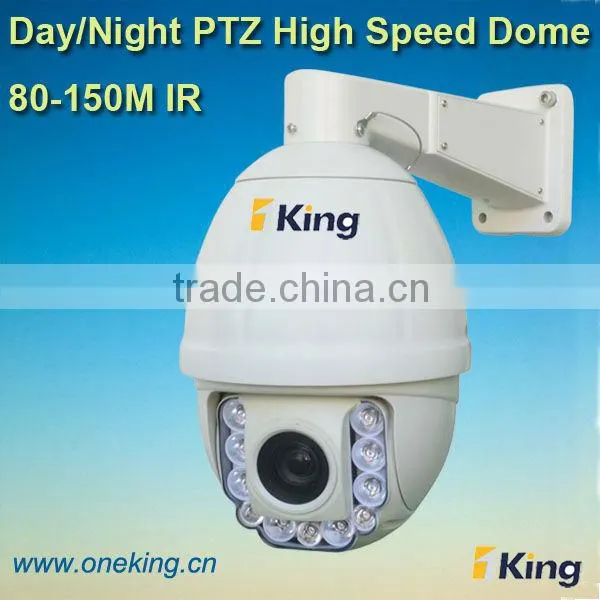

CCTV 150meters Infrared PTZ Auto Tracking Camera

Name: CCTV 150meters Infrared PTZ Auto Tracking Camera
Brand: Oneking/OEM
SKU: 110419093
Availability: InStock

US$ 100 - 450 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Oneking/OEM

Model Number:

D8803R

Shenzhen Oneking Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Oneking/OEM

Model Number D8803R

Type Other, Analog Camera, PTZ Camera

Style Dome Camera

Sensor CCD

Technology Pan / Tilt / Zoom

Special Features Waterproof / Weatherproof

Specifications

1.Day/Night Auto Track PTZ Camera
2.18X /22X/ 23X / 27X/30X/36X Optics
3. Wall/Ceiling/Pole moun
4.80-150m IR Distance

CCTV 150meters Infrared PTZ Auto Tracking Camera

Auto Track PTZ High Speed Dome Basic Features:

1/4"inch,Interline Transfer CCD
Outdoor Analogue Camera (IP Module optional)
18X / 27X /30x/36x Optics zooms for your choice
Vandalproof CCTV PTZ Camera
360 degree pan continuously
Bit rate variable 30Kbps~4000Kbps
Support motion detection, event trigger
Alarm I/O Support motion detection, date, time, event trigger
Vandalproof PTZ Security Camera for Outdoor High Speed Dome with wall/ceiling mount

Auto Track PTZ High Speed Dome Outstanding Features:

* Auto-tracking

* PWM function, intelligent IR illumination & power variable,dependant factor;
* IR distance 80-150M; Multiple languages for OSD menu;
* Support ambient light detection, IR illumination on 1-15 grades selectable;
* Time scheduling function;
* Remote Firmware upgrade via the RS485 bus;
* Dome ID, baud rate, communication protocol can be set via the controller;
* Supported Protocols: Pelco-D/P; Others on special request;
* 6" total metal body construction, waterproof IP66;
* Optional IP module (built in provision);
* Optional, 4 alarm inputs and 2 alarm outputs.

Auto Track PTZ High Speed Dome Technique Specification:

Specifications: Model No:D8803R
Horizontal Rotation Speed		200°/s
Tilt Rotation Speed		100°/s
Horizontal Rotation Range		360º
Tilt Rotation Range		93º
Auto Flip		Horizontal 180°, Vertical 180°
IR Control		Auto/ Manual/ Key
Ratio Speed		Support
Auto Control IR LED		PWM
PWR on Action		Memory/A-B scan/360 scan/Home/Tour 1-3/No action
A-B Scan		User programmable
A-B Scan Speed		01-64 grades selectable
360 Scan Speed		01-64 grades selectable
Dwell Preset		01-60s interval selectable
Preset Points		220
Go to Preset Speed		01-64 grades selectable
Guard Tours		3 groups
Guard Points		Max.16 points, dwell time user selectable
Park Mode		A-B scan/360 scan/Home/Tour 1-3/Off
Park Time		01-60 mins selectable
Communication Protocol		Pelco-D, Pelco-P
Communication		RS485 Bus
Baud Rate		1200/2400/4800/9600bps
Operating Temperature		Indoor: 0°~ +40° Outdoor: -40°~ +60°
Privacy Mask		Support ( Only Sony, Samsung)
Operating humidity		≤95% Non Condensing
Heater & Blower		Auto temperature control
Power		AC/DC12V ≤3A
IR Illumination Distance		100M
Power Consumption		≤ 20W
Lightning Protection		Transient voltage 6000V
Compatible Camera		SONY, LG, CNB, SAMSUNG, etc.
IR LED		Ø20=8, Ø16=3
