4 Inch Vandal-proof CCTV PTZ Dome Camera for Indoor Use

Name: 4 Inch Vandal-proof CCTV PTZ Dome Camera for Indoor Use
Brand: Oneking
SKU: 110418689
Availability: InStock

US$ 100 - 450 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Oneking

Model Number:

D328

Shenzhen Oneking Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Oneking

Model Number D328

Type Other, Analog Camera, CCTV PTZ Dome Camera

Style Dome Camera

Sensor CCD

Technology Pan / Tilt / Zoom

Special Features Vandal-proof

Specifications

1. 4" Vandalproof Indoor CCTV PTZ Dome Camera
2. 10x/12x Optical Zoom
3. Ceiling/Wall/Pendent mounts

We are the professional manufacturer of CCTV PTZ Dome Camera ---

Basic Features of D328 4-inch CCTV PTZ Dome Camera :

Vandalproof PTZ Network IP Camera Outdoor /Indoor CCTV High Speed Dome Camera
10x or 12x Optical Zoom Sensor (Oneking brand and Samsung, Sony modules available)
360 degree pan continuously
Bit rate variable 30Kbps~4000Kbps
Support motion detection, event trigger
Alarm I/O Support motion detection, date, time, event trigger
Vandalproof PTZ Security IP Camera for Outdoor High Speed Dome with wall/ceiling mo

4 inch Vandal-proof CCTV PTZ Dome Camera for indoor use

Functions:

Fast installation structure design,can install easily and quickly; Double layer of Die-cast Aluminium shell, can dissipate heat more sufficiently.
Auto-identify various SONY,CNB,CIGE, etc, and auto read camera model when power on.
Show and Edit title function containing 20 English letters, can independently set the titles for camera itself, Preset Position, Pattern Scan, Auto-level Scan and Zone display.
Auto flip with vertical 180° in Omni-directions, no fade zone.
128 preset position with editable title; 4 patrol tracking routes, each can insert 32 spots.
6 display zones with editable title.
RS485 control, integrated various of protocols, PELCO-D
IP 66 outer cover with all day protection; Built-in auto thermostatic control system with patent

Additional Advantage:

1. Private tooling for OEM/ODM project, we could put your logo on software and products for free under mass production (attached the logo for example).

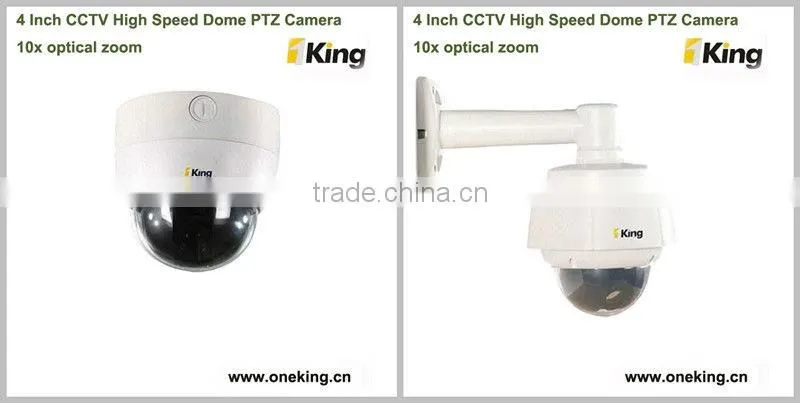

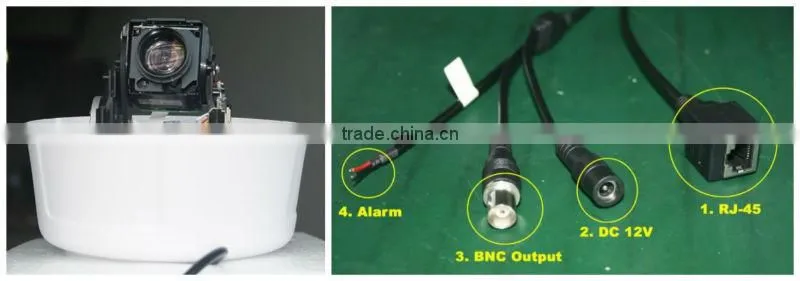

4-Inch CCTV PTZ Camera Details Product Images :

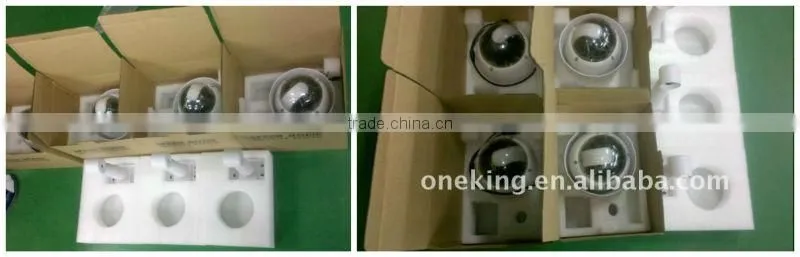

CCTV PTZ Camera Package:

D326 4-Inch CCTV PTZ Camera Spec sheet :

4 inch Vandal-proof High Speed Dome	D326		D328
Image Sensor	1/4"inch, Interline TransferCCD
AGC	AUTO
Auto White Balance	AUTO
S/N Ratio	>48db
Video Output	CVBS: 1.0Vpp at 75 0hm
Pan Rotation Speed	1~250 degree/second
Tilt Rotation Speed	0~100degree/second
Pan Rotation	360 degree
Tilt Rotation	90 degree
Boundary Scanning	0-359 degree
Power-on Setting	Boundary scanning, Cruise scanning
Speed Match	Support
Preset Positions	128 Positions
Cruise Groups	6 Group
Communication	RS-485 / RS-232
Baud Rate	2400/4800/9600/19200 bps
OSD Menu	Support
Housing Control P.	PELCO-P,PELCO-D(programmable)
Power Voltage	DC12V±10%,6W
Temperature/Humidity	TEMP:-10°C~50°C Humidity:10%~90%RHG
Continuously W.H	50000-Hour(related to Working conditions)
Housing Size	4 Inch
Weight	2350g	1550g
Installation	Wall/Ceiling/Embedded

Camera Module Specification
Model	SCM-2121P	SDM-100
CCD Size	1/4 inch,Interline Transfer CCD
Total Pixels	795(H) X 596(V)
Effective Pixels	752(H) X 582(V)
Optics	12X f=3.94 to 46.05mm(F 1.67 to 1.88)	10X f=3.8 to 38mm(F 1.8 to 3.2)
Resolution	Color:560TVL (Min),B/W:680TVL(Min)	Color:500TVL(Min),B/W:570TVL(Min)
