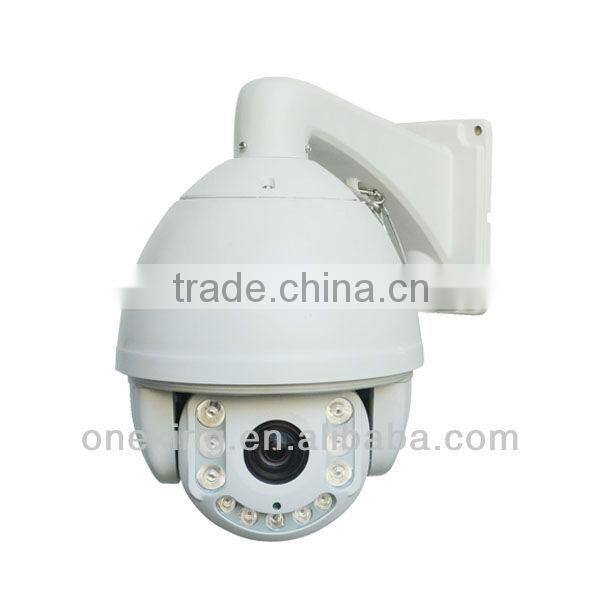

Pelco-D Pelco-P PTZ IR Camera Analogue Camera With 30x Optical Zoom

Name: Pelco-D Pelco-P PTZ IR Camera Analogue Camera With 30x Optical Zoom
Brand: Oneking/OEM
SKU: 110418553
Availability: InStock

US$ 100 - 450 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Oneking/OEM

Model Number:

D308

Shenzhen Oneking Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Oneking/OEM

Model Number D308

Type Other, Analog Camera, PTZ Camera

Style Dome Camera

Sensor CCD

Technology Pan / Tilt / Zoom

Special Features Waterproof / Weatherproof

Specifications

1.Day/Night PTZ IR Camera
2.18X /22X/ 23X / 27X/30X/36X Optics
3. Wall/Ceiling/Pole moun
4.80-150m IR Distance

Pelco-D Pelco-P PTZ IR Camera Analogue Camera with 30x optical zoom

PTZ High Speed Dome Basic Features:

1/4"inch,Interline Transfer CCD
Outdoor Analogue Camera (IP Module optional)
18X / 27X /30x/36x Optics zooms for your choice
Vandalproof CCTV PTZ Camera
360 degree pan continuously
Bit rate variable 30Kbps~4000Kbps
Support motion detection, event trigger
Alarm I/O Support motion detection, date, time, event trigger
Vandalproof PTZ Security Camera for Outdoor High Speed Dome with wall/ceiling mount

PTZ High Speed Dome Outstanding Features:

1. Optional camera modul: SONY 480CP 480TVL 18x Zoom / SONY 980P 26x Zoom / LG 230 23x zoom / Oneking 27x zoom
2. 80~140m IR Distance 6x far leds, 4x near leds, PWM Control shift far, near optical zoom adjustable, 9-grade light compensation spread without flashlight phenomena
3. Adopt the advanced 3rd generation lattice IR leds featured in high energy with low comsume, full sealed aluminium structure good for heat dissipation;
4. Easy Operateion with Controller change the address by controller , no need to press the address code on the speed dome;
5. 8" Metal Vandual-Proof Housing IP 66 Waterproof camera with metal housing for outdoor surveillance;
6. Strong Compatibility 128 preset positions, 8 cruise tours, support RS485/422, Manchester, SDL, as coaxial-control, built-in multi-protocol: PWT, PELCO-D, PELCO-P, KALATEL, SAMSUMG, and support Alarm on request.
7. Intelligence Control Motion detection trigger alarm, intelligent analysis, built in high accurate RTC Clock, and anti-surging & lightning strike protection devices; Stand by status, adjust Iris technology, auto-tracking function, 3D Positioning function; Guarded Mode: 15-60 min camera without movement (adjustable) start to 360 degree continuously scanning/AB positions scan/preset positon & patrol scanning movement;

PTZ High Speed Dome Technique Specification:

Specifications: Model Number: D308
Sensor	1/4"-type Exview HAD CCD
Video Output:	CVBS:1.0Vpp at 75 0hm
Horizontal Rotation Speed	200°/s
Horizontal Rotation Range	360°
Tilt Rotation Speed	100º/s
Tilt Rotation Range	50º/s
Auto Flip	Horizontal 180°,Vertical 180°
Auto control IR LED	PWM
A-B Scan	User programmable
A-B Scan speed	0-64 levels setting available
Dwell Preset	2-60s interval available
Preset points	220 preset position
Go to preset speed	01-64 levels available
Guard Tours	3 groups
Guard Points	Max.16 points, dwell time user selectable
Home Pos Time	0-60mins available
Communication Protocol	Pelco-D,Pelco-P
Communication	RS485
Baud Rate	1200/2400/4800/9600bps
Privacy Mask	8-24pcs (according to zoom module type)
Operating Temperature	Indoor:0°~ +40° Outdoor: -40°~ +60°
Operating humidity	≤95% Non Condensing
Heater & Blower	Auto temperature control
Power	AC/DC15-28V ≤3A
IR Illumination Distance	150M
Power Consumption	≤ 20W
Lightning protection	Transient voltage 3000V
Compatible camara	SONY,LG,CNB,SAMSUNG,etc.
LED Angle of Illumination	24*24=6,Ø16=5
