Cordierite Ceramic Honeycombs

Cordierite Ceramic Honeycombs thumbnail-1
Cordierite Ceramic Honeycombs photo-1
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Type:
Ceramic Parts
Application:
Industrial Ceramic
Contact Supplier Request Quote Chat Now
Shanghai Kessen Ceramics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Type Ceramic Parts
Application Industrial Ceramic
Material Alumina Ceramic
Model Number KS6549656
Brand Name kessen

construction material aluminum honeycomb

Specifications

Introduction

The honeycomb ceramic as heat exchange media is the key part for heat storage HTAC(High Temperature Air Combustion) technology, which has been widely applied in all kinds of pushing-steel heating furnace, RTO(Regenerative Thermal Oxidation), stepping heating furnace, heat treatment furnace, forging furnace, dissolving furnace, steel wrapping/middle wrapping baking apparatus, soaking pit, radiation tap incendiary apparatus, covering furnace, high temperature hot-blast stove in metallurgical machine building and all kinds of ceramic cellar stove, glass cellar stove in building materials, and all kinds of tap heating stove, splitting stove, other industrial stove cellar, too.

Honeycomb ceramics as heat storage body, by the advantage of large specific surface area, small heat resistance, good thermal conductivity, excellent thermal shock resistance, realize quickly exchanging heat; reducing energy in the strict sense (up to 97% of true thermal energy can be recovery and also it can absorb NOx more than 40%).



Technical Data

Dimension (mm)

Quantity of cells

Wall thickness (mm)

Width of cell (mm)

Surface area (m2/m3)

Void section (%)

Weight per piece (kg)

150*150*300

25*25

1

4.96

580

68

4.7

150*150*300

40*40

0.7

3.03

891

65

5.5

150*150*300

50*50

0.6

2.39

1090

63

6.1

150*150*300

60*60

0.5

1.99

1303

63

6.3

150*100*100

40*40

1

2.5

784

49

1.2

150*100*100

33*33

1.1

3

691

52

1.13

150*100*100

20*20

2

5

392

49

1.04

100*100*100

40*40

1

2.5

784

49

0.81

100*100*100

33*33

1.1

3

691

52

0.75

100*100*100

20*20

2

5

392

49

0.68



Regenerator specification index

Name Alumina Dense Cordierite Porous Cordierite Cordierite-Mullite Dense Alumina Mullite Corundum mullite
Density(g/cm3) 2.0~2.3 2.1 ~2.5 1.5 ~1.9 1.8~2.3 2.4 ~2.7 2.0 ~2.5 2.3 ~2.7
Coefficient of heat expansion (×10-6K-1) (20~800°C) ≤5 ≤3.5 ≤3.0 ≤3.5 ≤5 ≤5 ≤6
Specific Heat (J/Kg.K)(20~1000°C) 900~1150 900~1100 900~1100 900~1150 1000~1150 1000~1150 1100 ~1300
Thermal Conductivity (W/m.k) (20~1000°C) 1.5~2.0 1.5~2.5 1.2~1.8 1.5~2.0 1.5~2.5 1.5~2.0 1.5~2.5
Impact Thermal Resistance          (°C/min) ≥300 ≥300 ≥350 ≥350 ≥300 ≥350 ≥300
Max. Working Tem.(°C)    1350 1300 1300 1320 1350 1450 1550
water absorption(%)                  15-25 ≤2 15~25 15 ~25 ≤2 15~25 15 ~25
compressive strength(MPa) ≥28 ≥28 ≥25 ≥25 ≥28 ≥28 ≥30
chemical composition (%) Al2O3 55 ~65 25 ~38 28 ~38 40~52 55 ~65 60 ~70 70 ~80
SiO2 25~35 50 ~60 45 ~55 45 ~55 25 ~35 25 ~35 15 ~25
MgO 1~3 5 ~10 11 ~14 7~9 3~5 0 ~1 0 ~2
others <5 <5 <5 <5 <5 <5 <5



Packaging: Fumigation-free Wooden case.

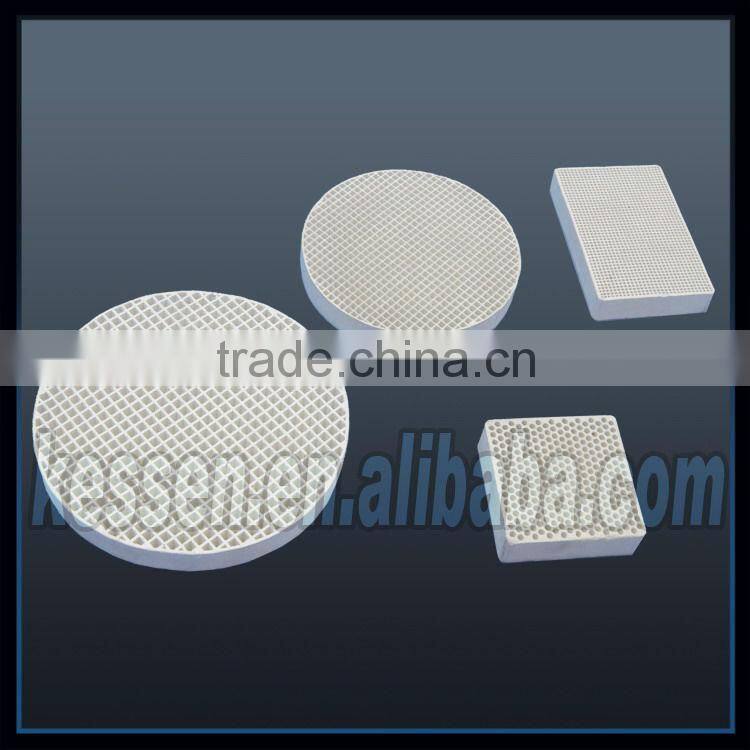

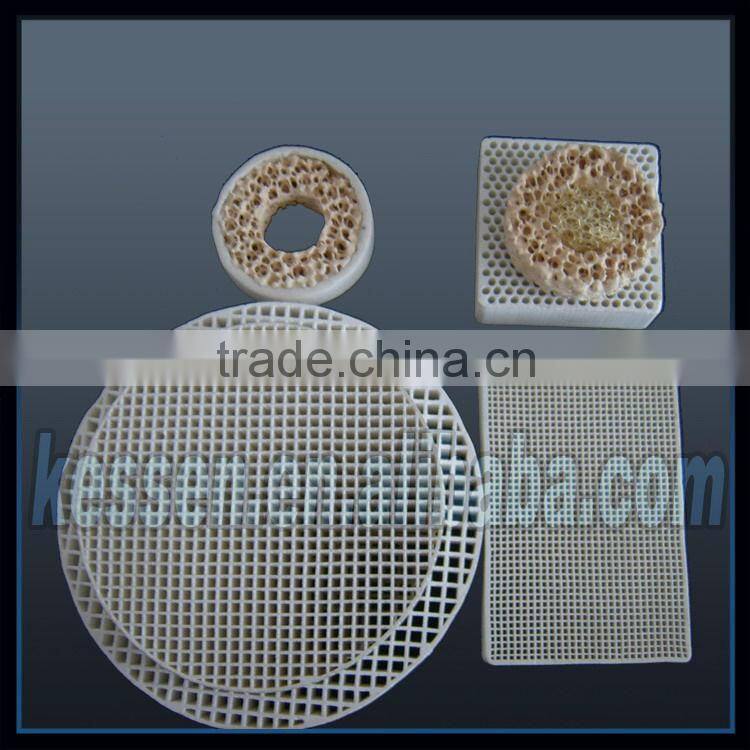

Cordierite ceramic honeycombsCordierite ceramic honeycombsCordierite ceramic honeycombs
