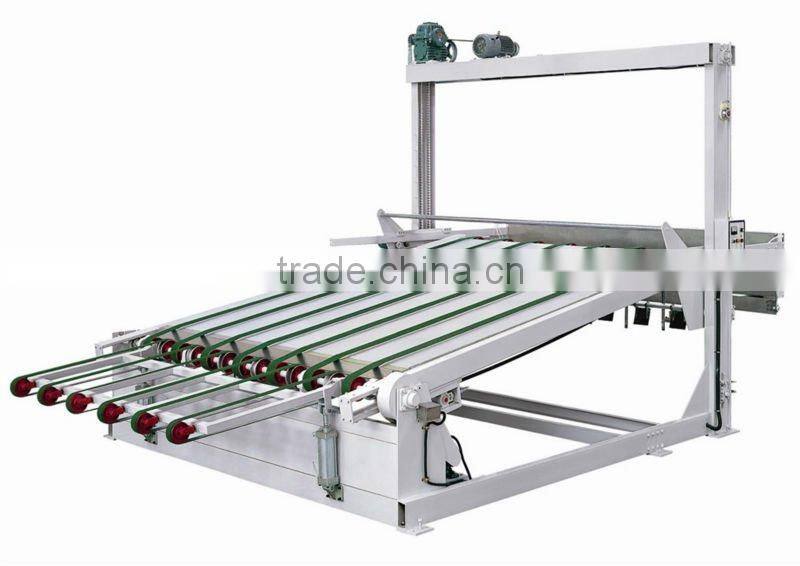

NANATI-Stacker Machinery for Carton

Name: NANATI-Stacker Machinery for Carton
Brand: Nantai
SKU: 110408535
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Other, Machinery & Hardware

Packaging Material:

Metal

Nantai Precise Machinery & Tech. Ltd. Foshan

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou/ Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Machinery & Hardware

Packaging Material Metal

Automatic Grade Semi-Automatic

Driven Type Electric

Voltage 380V

Place of Origin Guangdong, China

Brand Name Nantai

Model Number NT

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

The whole procedure of piling cardboards is automatically finished in the control system.

Paper receiving arm can be manual or auto operated.

Cardboard feeding speed is adjustable according to production need.

Reliable safety prevention is available when the section is in work.

The rear blocking plate is electrically adjustable in both running and stop statuses.

ITEM	SPECIFICATION
1. Bench Lifting and Descending	1) With the photoelectric system to control the bench lifting and descending, which can be automatically lifted anddscended in accordance with the height of paper stackking. The driving motor of the bench lifting and descending unit is facilitated with the braking function and balance insurance device, which can guarantee that the position i fixed and will not slide. 2)With reinforced chain to drive, and the heigh of paper sacking is 1,600mm
2. Paper Receiving Arm	1)Pneumatic type adjustable paper receiving arm. 2)Adjustment of the looseness of the driving belt of the paper receiving arm can done solely, without bing limited by the factors such as thelength of the belt, etc.
3. Driving Belt	1) With gear type reinforced driving belt, which guarantees the friction and service life.
4.Paper Receiving Auxiliary Baffle	1)With the gas cylinder control method. 2)Adjustmentof the looseness of the driving belt of thepaper receiving arm can be done solely, without being limited by the factors such as the length of the belt, etc. 3)The auxiliary paper receiving baffle adopts the pneumatic movement to receive the paper. When the paper is sacked to the presset height, the paper receiving baffle will automatically stretc out, and hlder the cardboard. The position of theback plate can be adjusted manually.
5. Square jogger	1)Side joggers for side squaring the stacked sheets.
