294KW Water-cooled Air Compresed Dryer,air Compressed Dry Water-cooled
- SHENZHEN Or Guangzhou
- Credit Card PayPal
You May Like
-
25m3/h Water Flow Compressed Air Dryer,water0cooled Compressed Air Dryer Model TQ-800WS
-
Water Cooled Compressed Air Drer Manucturer,compressed Air Dryer Water Coollng
-
Lager Capacity Water Cooled Compressed Air Dryer 450Nm3/min,compressed Air Dryer
-
Lager Water Cooled Air Dryer for Sale,compressed Dryer 514.5kw,compressed Air Dryer for Sale
-
86Nm3/min Water-cooled Compressed Air Dryer for Netrogen Making Machine
-
Compressed Air Dryer Water-cooled Type Modle TQ-350WS,350HP Compressed Air Dryer
Product Details
| Place of Origin | Guangdong, China | Brand Name | TAYQ | |
| Model Number | TQ-400WS | Type | Air Dryer |
Product Description
TQ Seris water-cooled compressed air dryer has 17 models with high quality and low price
air dryer manufacturer
low running coat ,low pressure drop and steady dew point.microprocessor control.
water-cooled compressed air dryer manufacturer
Features
1.Use famous compressor the air dryers
the compressor can running stable, low noise, can effect comparing higher, safe and reliable, scientific and reasonable design, novel appearance, beautiful and easy, operation, maintenance, maintenance is convenient, installation simple
2. Smart screen:
To display various parameters and working condition
3. High and low voltage protection, overload protection and automatic alarm function.
4. Dew point stability:
Advanced temperature control system is control the operation condition of the precooler. And the hot gas bypass valve can adjust the compressor working condition
5.Energy saving:
The high quality thread copper tube heat has the large exchange area, the effect is good, efficient precooler are recycled a number of the cold.
Technical parameters
*Rated condition:
Working pressure 0.7MPa,
Inlet temperature 60℃,
Ambient temperature 30℃,
Cooling water temperature 30℃,
Water-cooled compressed air dryer tenical data | |||||||
Model | Capacity (Nm3/min) | Weight (kg) | Inlet Diameter(mm) | Water Flow(m3/h) | Motor (HP) | Voltage (V) | Dimension L*W*H(mm) |
TQ-30WS | 3.8 | 95 | 40 | 2 | 1 | 220 | 850*450*890 |
TQ-50WS | 6.8 | 125 | 50 | 2 | 1.5 | 220 | 1150*500*900 |
TQ-75WS | 10.5 | 205 | 65 | 3 | 3 | 380 | 1350*700*1100 |
TQ-100WS | 14.5 | 230 | 80 | 3 | 3 | 380 | 1350*700*1100 |
TQ-150WS | 21.6 | 270 | 80 | 6 | 4 | 380 | 1550*750*1300 |
TQ-200WS | 24.5 | 285 | 80 | 6 | 5 | 380 | 1550*750*1300 |
TQ-250WS | 28.5 | 360 | 100 | 8 | 6.5 | 380 | 1700*800*1450 |
TQ-300WS | 33.5 | 385 | 100 | 8 | 6.5 | 380 | 1700*800*1450 |
TQ-350WS | 38 | 420 | 100 | 10 | 8 | 380 | 1750*900*1600 |
TQ-400WS | 45 | 460 | 125 | 10 | 8 | 380 | 1750*900*1600 |
TQ-450WS | 58 | 530 | 125 | 15 | 10 | 380 | 1750*900*1700 |
TQ-500WS | 66 | 620 | 125 | 15 | 10 | 380 | 1750*900*1700 |
TQ-600WS | 75 | 690 | 150 | 20 | 12 | 380 | 1850*900*1700 |
TQ-700WS | 86 | 760 | 150 | 20 | 12 | 380 | 1850*900*1700 |
TQ-800WS | 95 | 840 | 200 | 25 | 20 | 380 | 2150*1100*1800 |
TQ-9000WS | 105 | 960 | 200 | 25 | 25 | 380 | 2150*1100*1800 |
TQ-900WS | 115 | 1050 | 20 | 25 | 25 | 380 | 2150*1100*1800 |
|
|
|
|
|
|
|
|
Water-cooled Open-type compressed Air Dryer Tenical data | |||||
Model | Capacity (Nm3/min) | Inlet Diameter(mm) | Motor (HP) | Water Flow(m3/h) | Voltage (V) |
TQ-400WS | 51 | 125 | 8 | 10 | 380 |
TQ-450WS | 58 | 125 | 10 | 15 | 380 |
TQ-500WS | 66 | 125 | 10 | 15 | 380 |
TQ-600WS | 75 | 150 | 15 | 20 | 380 |
TQ-700WS | 86 | 150 | 17.5 | 20 | 380 |
TQ-800WS | 95 | 200 | 20 | 25 | 380 |
TQ-900WS | 105 | 200 | 20 | 25 | 380 |
TQ-1000WS | 115 | 200 | 25 | 25 | 380 |
TQ-1200WS | 125 | 200 | 25 | 30 | 380 |
TQ-1500WS | 150 | 250 | 30 | 40 | 380 |
TQ-1700WS | 170 | 250 | 35 | 40 | 380 |
TQ-2000WS | 200 | 300 | 40 | 50 | 380 |
TQ-2500WS | 250 | 300 | 50 | 50 | 380 |
TQ-000WS | 300 | 350 | 55 | 60 | 380 |
TQ-3500WS | 350 | 350 | 65 | 60 | 380 |
TQ-4000WS | 400 | 400 | 75 | 70 | 380 |
TQ-4500WS | 450 | 400 | 85 | 70 | 380 |
TQ-5000WS | 500 | 450 | 95 | 80 | 380 |
TQ-5500WS | 550 | 450 | 100 | 90 | 380 |
TQ-6000WS | 600 | 500 | 110 | 100 | 380 |

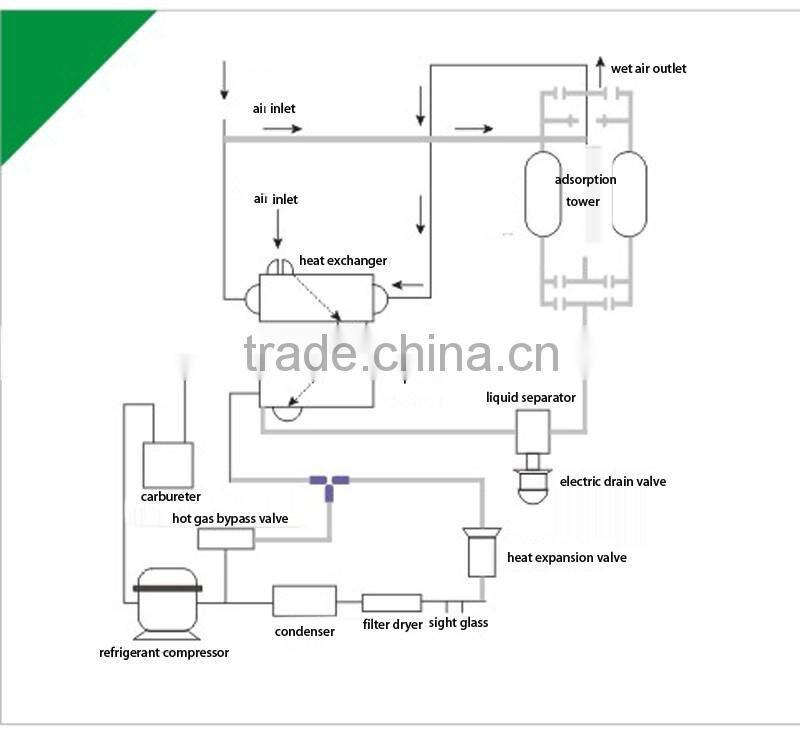

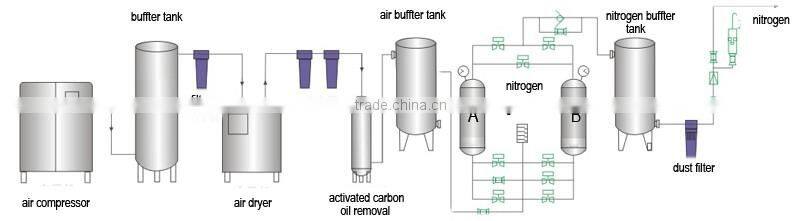

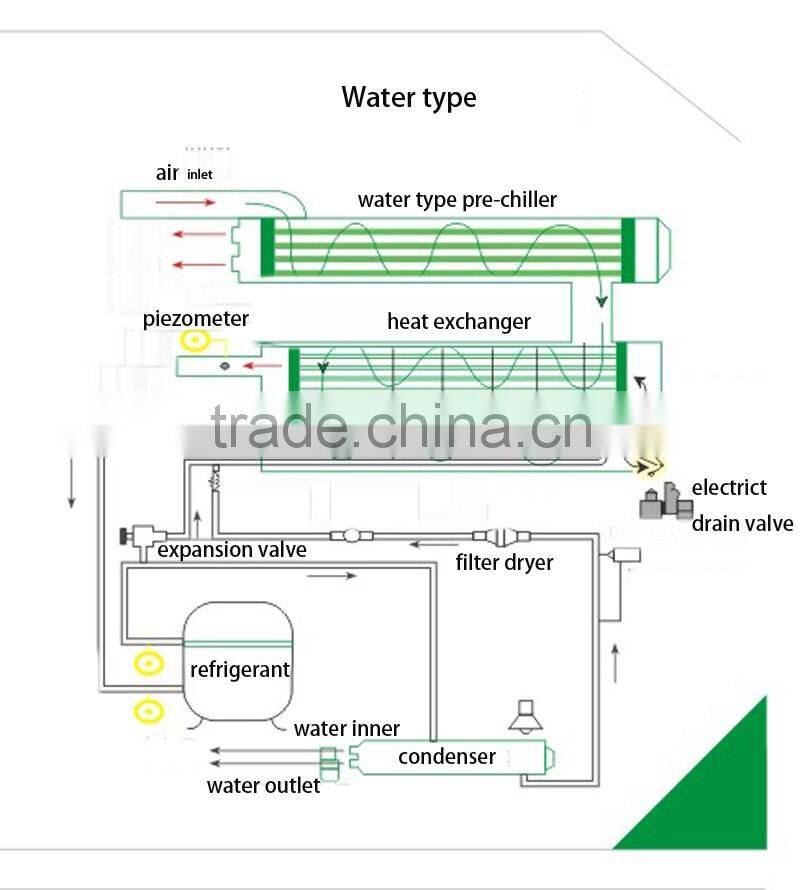

Drawing

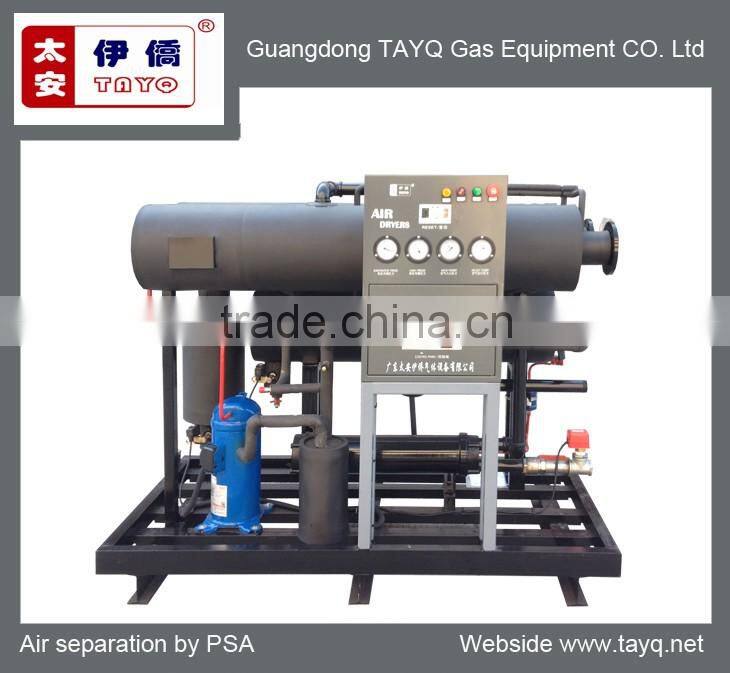

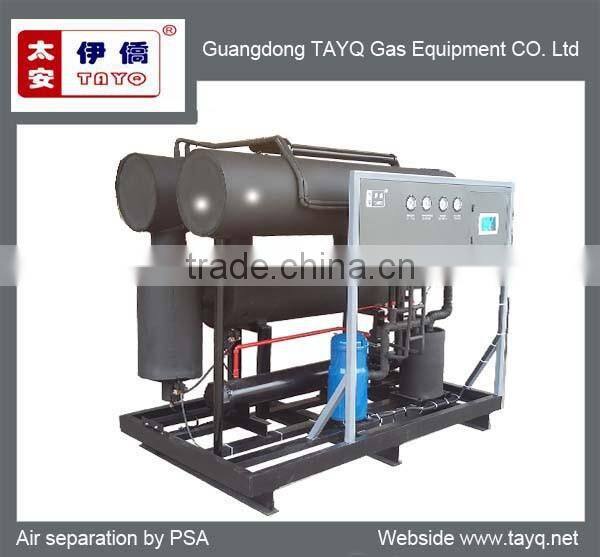

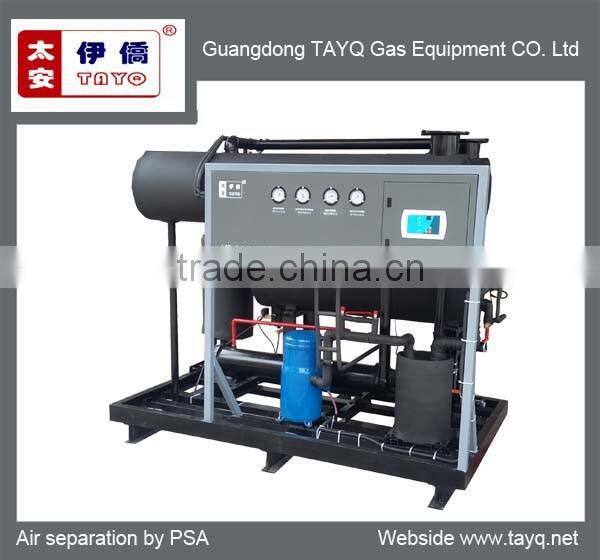

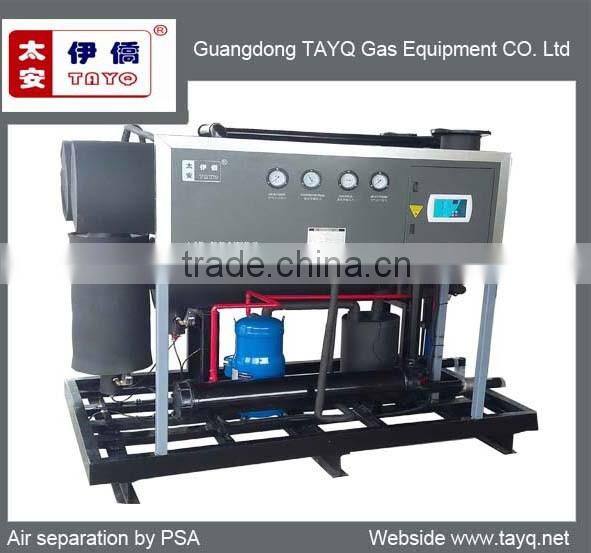

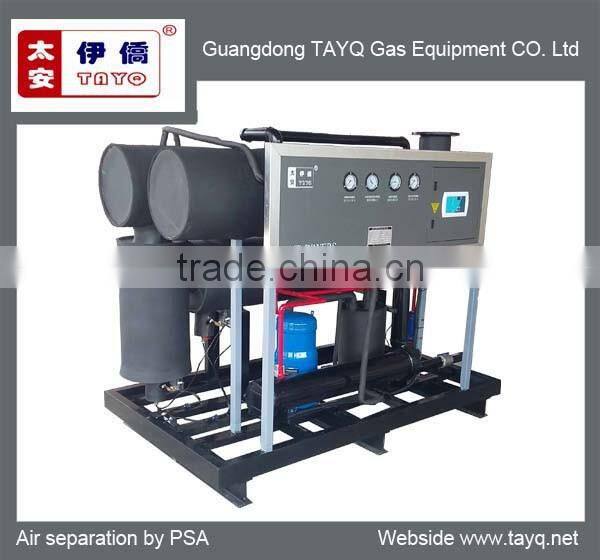

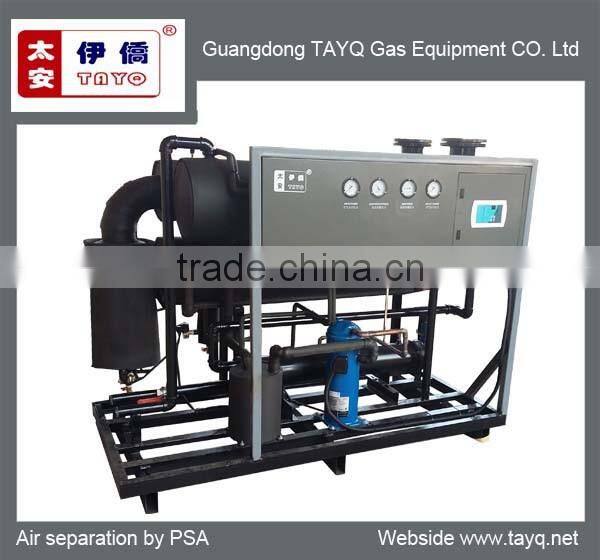

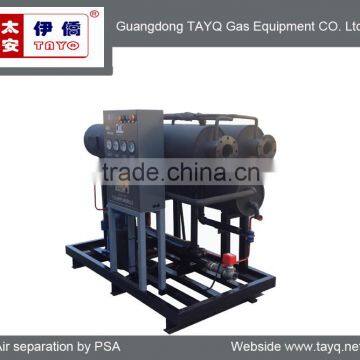

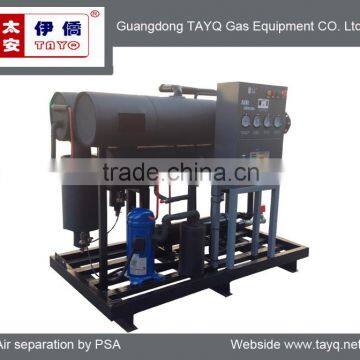

Pictures
Certificate and honor
