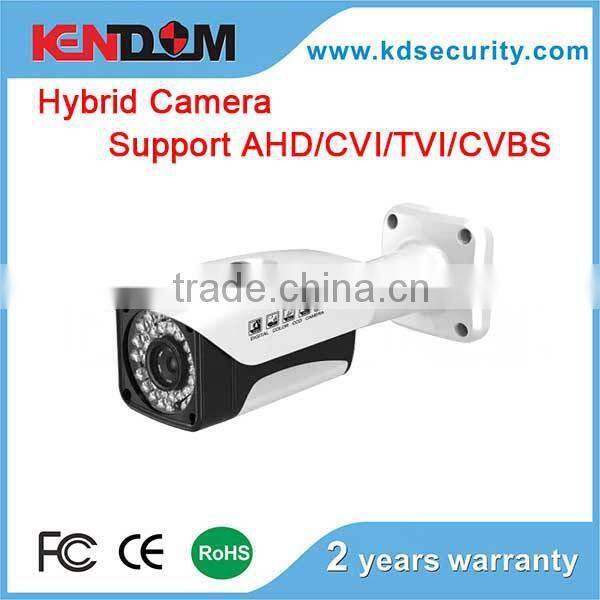

AHD/TVI/CVI/CVBS all in one mainboard Four in one Hybrid camera Security camera
Product Features:
1.) Hybrid IR Weather-proof Camera
2.) Solution: AHD/TVI/CVI/CVBS all in one mainboard.
3.) IR Leds: 72pcs of 5mm IR LEDs,
4.) IR Range: 60m IR Range,
5.) Lens: 2.8-12mm megapixel Vari-focal lens
6.) Color: white/gray
Application Places:
Apply to the financial, supermarket, telecommunications, government, schools, airports, factories, hotels, museums and other places of requirement of high-definition.
Picture Show:
How to Use:
Technical Parameter:
Model |
KD-IW6072MV-MH |
|
Type |
Hybrid IR Bullet Camera |
|
Horizontal Resolution |
1.0megapixel |
1.0megapixel Low Lux |
Effective Pixels(HxV) |
1280(H)*960(V) |
1280(H)*720(V) |
Signal System |
PAL / NTSC |
|
Image Sensor |
1/4" H42 CMOS With OSD cable |
1/4"AR0141 CMOS With OSD cable |
Mini Illumination |
0.1lux(IR off) 0.00lux(IR on) |
0.02lux(IR off) 0.00lux(IR on) |
Lens |
2.8-12mm megapixel Vari-focal lens |
|
IR LEDs |
72pcs of 5mm IR LEDs |
|
Night Vision |
60m IR Range |
|
OSD |
OSD |
OSD |
WDR |
D-WDR |
D-WDR |
DNR |
3D-DNR |
3D-DNR |
AES |
PAL=1/50 ~1/100,000sec;NTSC=1/60 ~1/100,000sec |
|
S/N Ratio |
> 48dB(Auto Gain Off) |
|
BLC |
On/Off |
On/Off |
AGC |
Auto/Manual/Off |
Auto/Manual/Off |
White Balance |
ATW/Manual/Auto |
ATW/Manual/Auto |
Video Output |
1.0V P-P,75Ω |
|
Operating Temperature |
-10 ~ 50℃(relative humidity: max95%) |
|
Power Voltage |
DC12V±10% |
|
IP range |
IP66 |
|
Material |
Aluminium Alloy |
|
Guarantee |
2 years |
|
Certifications:
Warranty
a.24 Months From Shipping Date;
b.24 Months, any defective product caused by non-artificial reason we will get repaired or replaced for free;
OEM & ODM Services
a. Including Label,Manual,Packages,Logo Printing and Special Outside Color and so on;
Payment Terms
a. Telegraphic Transfer (T/T)
b. Paypal
4% commission charges will be added into the amount;
