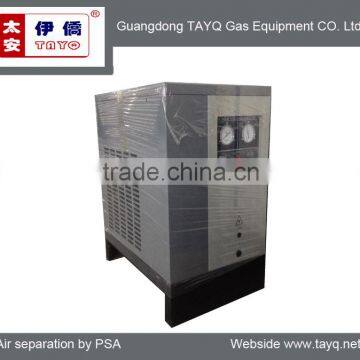

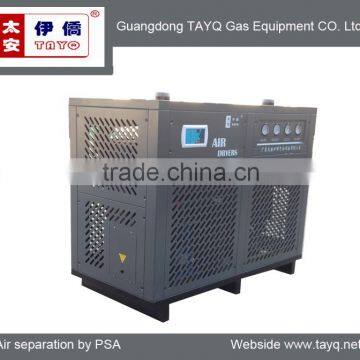

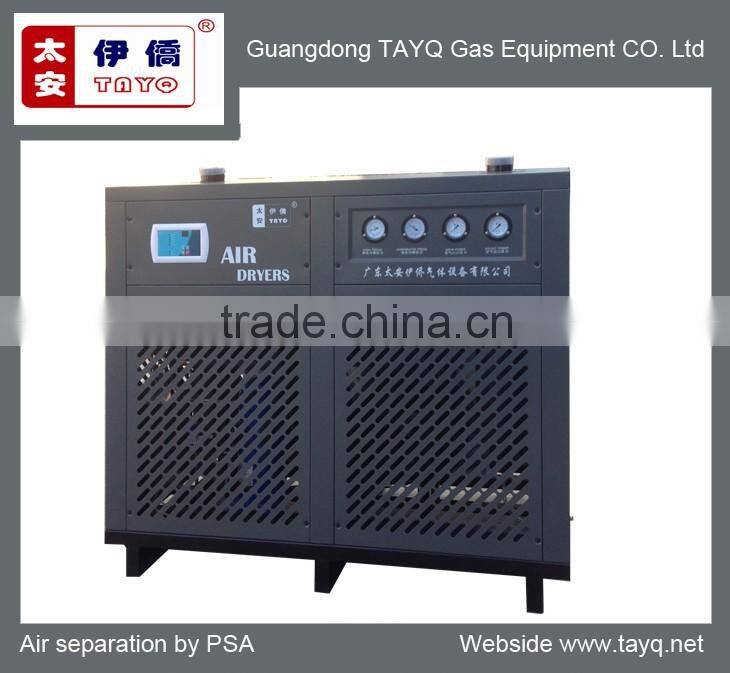

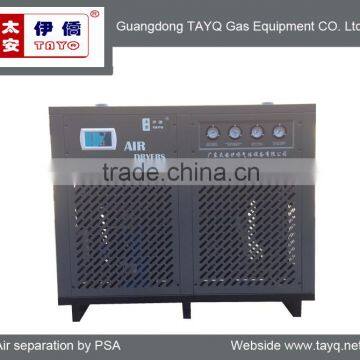

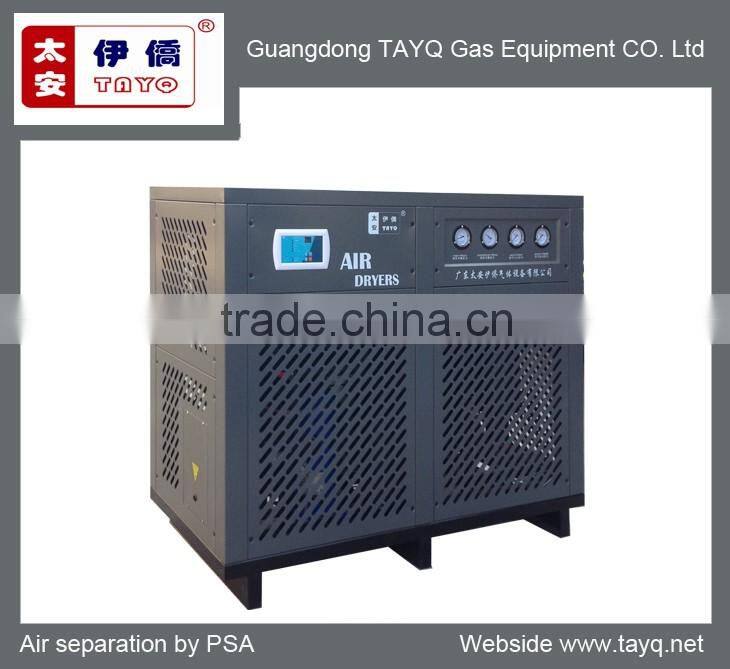

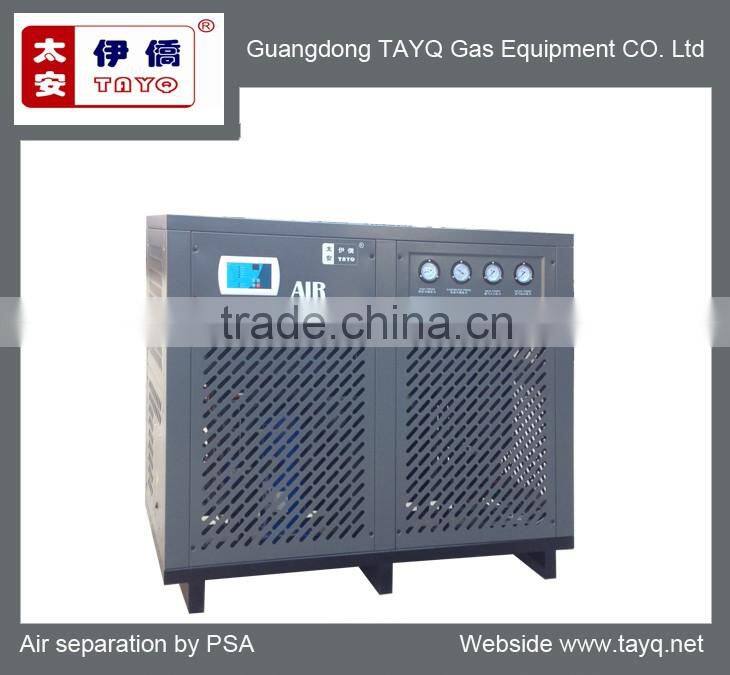

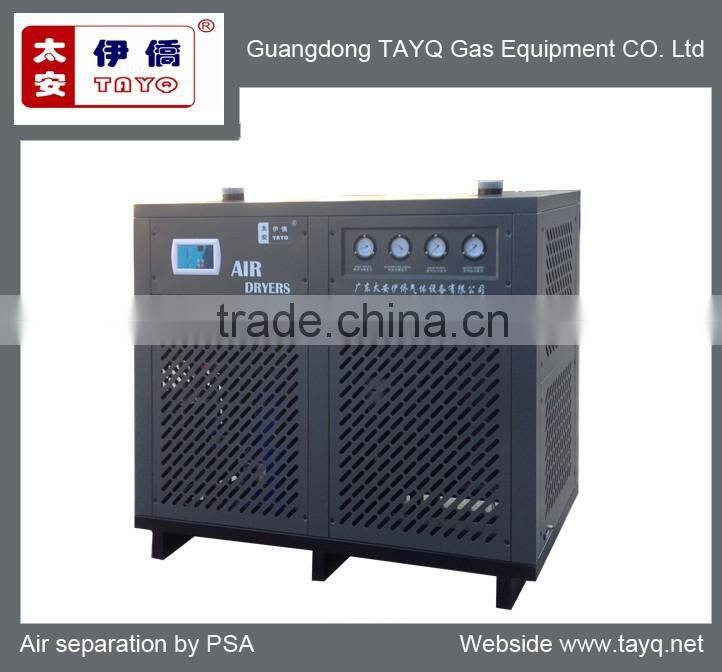

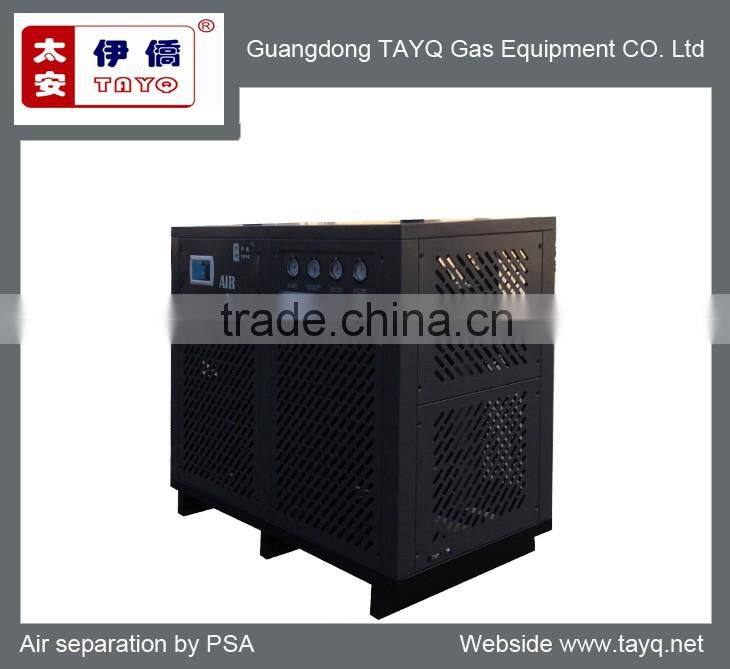

Help CenterRefrigerated Comprssed Air Dryer Manufacture for Atlas Copco Rotary Screw Air Compressor
Related Products
-
Refrigerated Frozen Air Cooled Air Dryer for Compressed Atlas CopcoUS$ 100 - 1,000MOQ: 1 Piece -
Widely Used Refrigerated Air DryerUS$ 100 - 1,000MOQ: 1 Piece
-
OEM Refrigerated Compressed Air Dryer Manufacturer for Compressor CompanyUS$ 100 - 1,000MOQ: 1 Piece
-
Refrigerated Air Dryer,plate Heat Exchanger for Air DryersUS$ 100 - 1,000MOQ: 1 Piece
-
ISO,CE,GMC Approved Refrigerated Dryer, Compressed Air DryerUS$ 100 - 1,000MOQ: 1 Piece
TQ Seris frozen compressed air dryer has 17 models with high quality and low price
Features
1.Use famous compressor the air dryers
the compressor can running stable, low noise, can effect comparing higher, safe and reliable, scientific and reasonable design, novel appearance, beautiful and easy, operation, maintenance, maintenance is convenient, installation simple
2. Smart screen:
To display various parameters and working condition
3. High and low voltage protection, overload protection and automatic alarm function.
4. Dew point stability:
Advanced temperature control system is control the operation condition of the precooler. And the hot gas bypass valve can adjust the compressor working condition
5.Energy saving:
The high quality thread copper tube heat has the large exchange area, the effect is good, efficient precooler are recycled a number of the cold.
Technical parameters
*Rated condition:
Working pressure 0.7MPa,
Inlet temperature 60℃,
Ambient temperature 30℃,
Cooling water temperature 30℃,
Model |
Capacity |
Power supply |
Weight |
Outlet Drian |
Dimensions(mm) |
||
TQ |
(m³/min) |
V/Ph/Hz |
Kg |
mm |
L |
W |
H |
TQ-7.5AS |
0.8 |
220/1/50-60 |
50 |
Ø20 |
700 |
400 |
780 |
TQ-10AS |
1.3 |
220/1/50-60 |
57 |
Ø20 |
700 |
450 |
780 |
TQ-15AS |
28.5 |
220/1/50-60 |
69 |
Ø25 |
700 |
450 |
800 |
TQ-20AS |
33.5 |
220/1/50-60 |
84 |
Ø40 |
700 |
450 |
900 |
TQ-30AS |
38 |
220/1/50-60 |
110 |
Ø40 |
850 |
500 |
980 |
TQ-50AS |
45 |
220/1/50-60 |
148 |
Ø50 |
1150 |
550 |
980 |
TQ-60AS |
51 |
220/1/50-60 |
164 |
Ø50 |
1350 |
700 |
980 |
TQ-75AS |
58 |
220/1/50-60 |
227 |
Ø65 |
1350 |
700 |
1220 |
Model |
Capacity |
Power supply |
Weight |
Outlet Drian |
Dimensions(mm) |
||
TQ |
(m³/min) |
V/Ph/Hz |
Kg |
mm |
L |
W |
H |
TQ-100AS |
14.5 |
220/1/50 |
263 |
Ø65 |
1350 |
700 |
1220 |
TQ-150AS |
21.6 |
220/1/50 |
305 |
Ø80 |
1550 |
750 |
1360 |
TQ-200AS |
28.5 |
380/3/50 |
330 |
Ø80 |
1550 |
750 |
1360 |
TQ-250AS |
33.5 |
380/3/50 |
380 |
ø100 |
1700 |
800 |
1510 |
TQ-300AS |
38 |
380/3/50 |
420 |
ø100 |
1700 |
800 |
1560 |
TQ-350AS |
45 |
380/3/50 |
465 |
ø100 |
1700 |
800 |
1610 |
TQ-400AS |
51 |
380/3/50 |
490 |
ø125 |
1700 |
800 |
1660 |
TQ-450AS |
58 |
380/3/50 |
535 |
ø125 |
1700 |
800 |
1660 |
TQ-500AS |
66 |
380/3/50 |
645 |
ø125 |
1700 |
900 |
1660 |
Drawing
Pictures
Certificate and honnor
