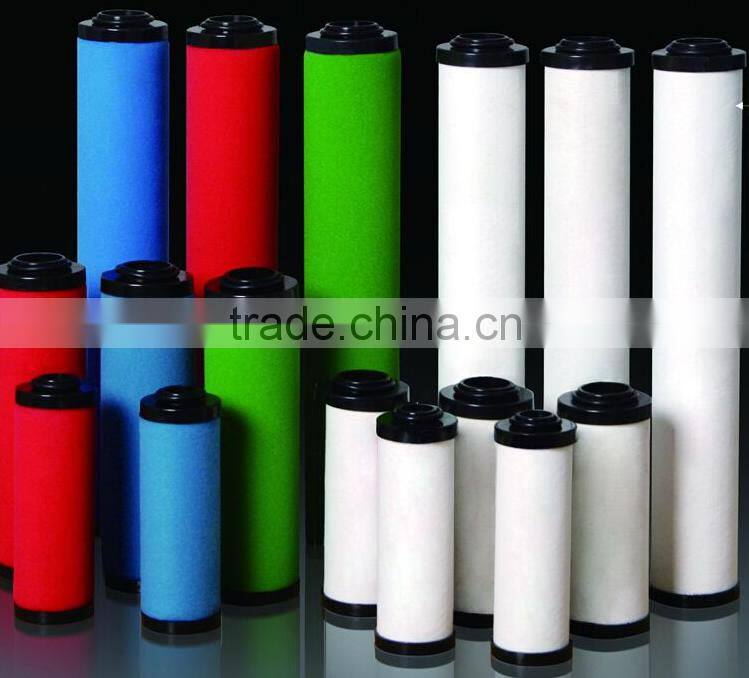

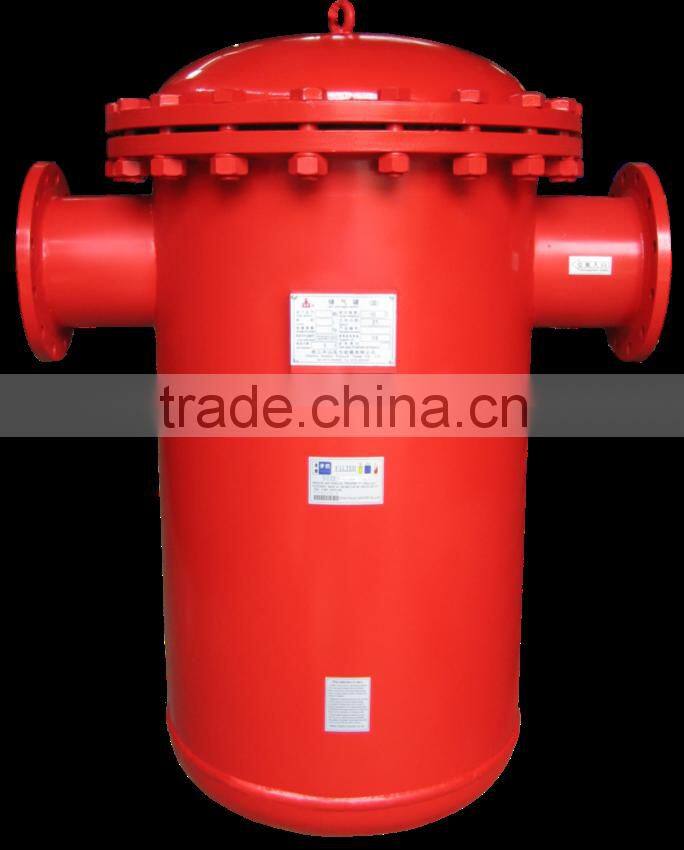

Help CenterTQ-120 China Famous Brand Air Fliter Element L120,Precision Air Filter 12m2/min
Related Products
-
N2 Generator System Air Filter TQ90,Precision Dust Filter,compressed Air FilterUS$ 100 - 1,000MOQ: 1 Set -
China Famous Brand Air Fliter Element TQ-240,Precision Air Filter 24m2/minUS$ 100 - 1,000MOQ: 1 Set
-
Precision Air Filter for Generaro TQ-060,Filter for Air DryerUS$ 100 - 1,000MOQ: 1 Set
-
Activated Carbon Air Filter for Air Dryer or Air Compressor TQ024US$ 100 - 1,000MOQ: 1 Set
-
Precision Air Filter for Air Dryer or Air Compressor TQ024US$ 100 - 1,000MOQ: 1 Set
TAYQ Brand filter with high quality and low price
professinal manufactory over 15 year experinces

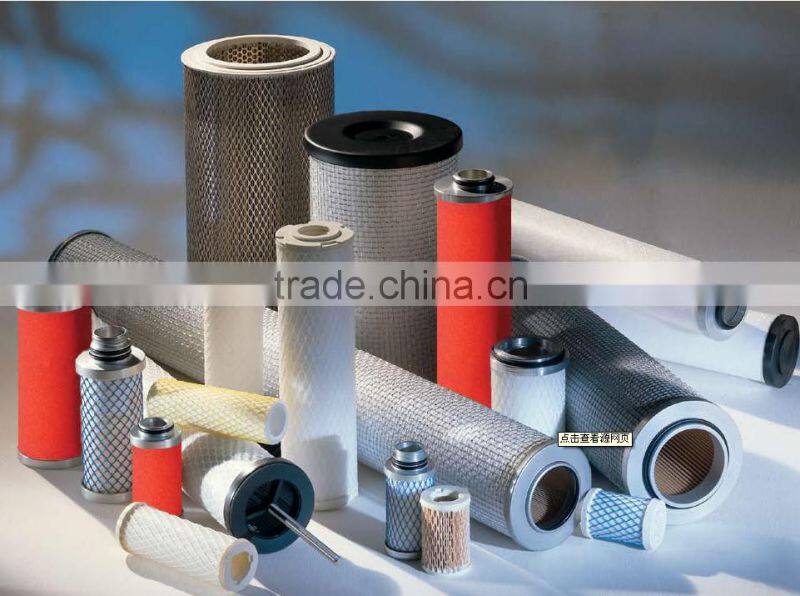

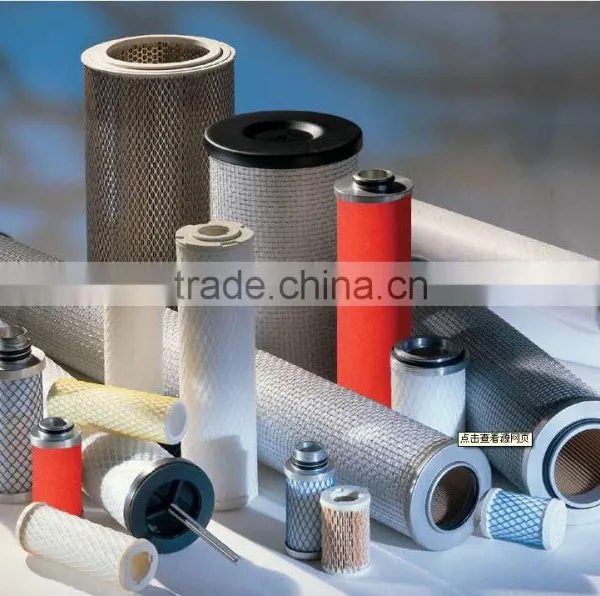

supply stailess steel filter,precission fillter,actived carbon filter wih all models.
Brief introduce:
Filters are probably the most important items of purification equipment in a compress air system, which designed not only remove oil vapor and water, but also to remove solid particles to a acceptable levels such as small to 0.01 micron in size. Usually in Coalescing the system installation, the first filter have the purpose of pre-filtration and protecting the second high efficiency filter from bulk contamination to provide high quality compressed air. If filters worked with water adsorption or in damp condition, which will make air, cannot get through element, and airflow will force liquid through element media, increase working pressure loss and reduce filtration performance.
Features
Reduce pipe rusting condition from water and the damages to valves ,cylinders
v Protects coalescing filters from bulk liquid contamination
v Improve air quality
v Protect the pre-filter of refrigerated and adsorption air dryers
v High liquid removal efficiencies at all flow conditions
v Reduce operational and maintenance costs
Technical parameters
| Precission filter technical data | ||||||||
| Modle | Pipe Size | Flow rate | Dimension | Element | ||||
| (m³/min) | A B C D | specific | quantity | |||||
| TQ-007 | 25 | 0.7 | 90 25 245 125 | 007 | 1 | |||
| TQ-015 | 25 | 1.5 | 90 25 245 160 | 015 | 1 | |||
| TQ-024 | 25 | 2.4 | 110 33 252 770 | 024 | 1 | |||
| TQ-035 | 40 | 3.5 | 110 33 252 220 | 035 | 1 | |||
| TQ-060 | 40 | 6 | 110 33 482 370 | 060 | 1 | |||
| TQ-090 | 65 | 9 | 150 50 530 390 | 090 | 1 | |||
| TQ-120 | 65 | 12 | 150 50 750 620 | 120 | 1 | |||
| TQ-150 | 65 | 15 | 150 50 900 700 | 150 | 1 | |||
| TQ-240 | DN80 | 24 | 310 200 1320 700 | 120 | 2 | |||
| TQ-360 | DN125 | 36 | 475 1105 1460 700 | 120 | 3 | |||
| TQ-450 | DN125 | 45 | 475 1265 1635 770 | 150 | 3 | |||
| TQ-600 | DN150 | 60 | 565 1370 1760 770 | 150 | 4 | |||
| TQ-750 | DN150 | 75 | 590 1400 1820 770 | 150 | 5 | |||
| TQ-900 | DN200 | 90 | 590 1430 1890 770 | 150 | 6 | |||
| TQ-1200 | DN200 | 120 | 660 1440 1900 770 | 150 | 8 | |||
| TQ-1500 | DN200 | 150 | 700 1455 1930 770 | 150 | 10 | |||
| TQ-1800 | DN200 | 180 | 750 1470 1960 770 | 150 | 12 | |||
| TQ-2100 | DN250 | 210 | 860 1520 2080 770 | 150 | 14 | |||
| TQ-3000 | DN300 | 300 | 960 1565 2170 770 | 150 | 20 | |||
| TQ-3600 | DN400 | 360 | 960 1615 2280 770 | 150 | 24 | |||
| TQ-3900 | DN400 | 390 | 1010 1640 2340 770 | 150 | 26 | |||
Drawing
Pictures
