Specifications
juice filling line1 High automation level
2 compact structure
3.attractive appearance
nvenient
GL18-18-6 series of full-automatic juice filling line/system/machine(6000BPH)
juice filling line, juice production line,juice filling machine
Blissun's RFC-H series juice filling machine,hot fillling line,soft drink plant,such filling machines are designed especially for bottling synthetic juices (RTS) or HOT filled juices, tea (filled at up to 98 centigrade degrees), with optional capacity ranging from 1000BPH to 32000BPH, it adopts the pressure & rotative filling style.
- This machine is integrated with rinsing filling and capping three in one machine. It takes bottle handling technology, which makes changing different size bottle more easily.
- It can do the bottles from size 200ml to 2000ml. And little spares are need when changing bottles. We suggest users to take same specification bottles, especially the same bottle neck.
- Our monobloc uses high quality stainless steel 304, which makes sure the quality of the products.
- Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.
- And capping power can be adjusted. We equip the machine with "No-bottle, No-Cap" system. If there is no bottle, the caps feeding will be stopped.
- Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device
Parameter of RFC-H 18-18-6
Model | GL 18-18-6 |
Output Capacity Adjustable | 6000 Bottle per hour on basis of 0.5 liter bottle |
Rinsing & Filling & Capping heads | 18pcs rinsing heads, 18pcs filling nozzles, 6pcs capping heads |
Suitable PET bottle size | Bottle Diameter Φ50~Φ95mm Bottle Highness:160~320mm, Bottle neck: 28mm or 30mm, for Bottle Volume 200-2250ml |
Suitable to fill | juice, tea and also water |
Washing Water Required | 600 to 700 liter per hour |
Washing Pressure | 0.3~0.4Mpa |
Working Power | 380V AC 50HZ 3-phase, (other power supply is available) |
Control Panel Power | 24V DC |
Filling Pressure | 0.15MPa |
Machine Size | 1850x1750x2300mm ( L * W *H ) |
Gross Weight | 3200kg approximately |
Total Power | 4.5KW |
Features:

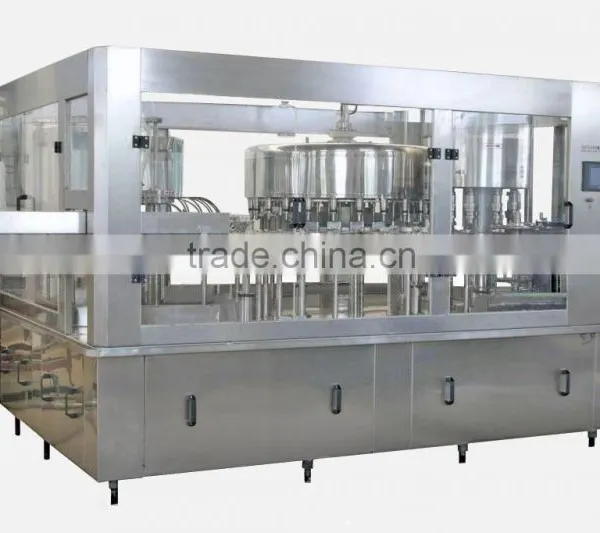

This machine is used to fill juice and other beverage into pet bottle and with screw caps capping function.
This machine integrated three function: 1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles
These series model Monobloc Rinser Filler Capper work harmoniously with air conveyor belt (chain plate conveyor belt is optional), sprig elevator system will tray the bottle bottom; greatly reduce the possibility of bottles falling over during conveying process.
