Help CenterMilk Bottle Filling Machine
Related Products
Specifications
1.Reliable and Stable2.Produce Faster and Better
3.Safty and Sanitary
4.Automatic and Easy Operation

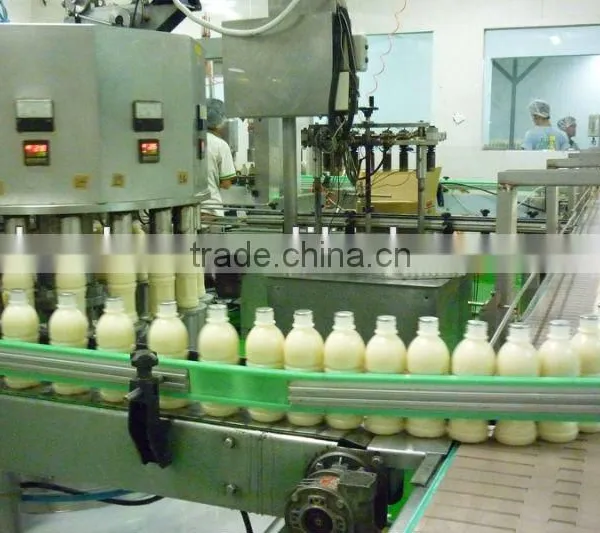

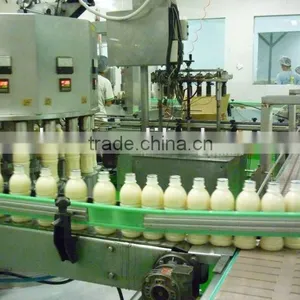

Introduction The machine mainly used in the beverage & water filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine. The whole process is automatic .The machine is used to fill mineral water and purified water in bottles made of polyester and plastics. The machine is conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable due to the micro-negative pressure filling operation of the new type is adopted. The output and benefit of the machine is higher than the machines of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine runs automatically, air conveyor system is adopted in bottle exit section, which can adjust speed and coordinated with transducer of the main machine to make the output of moving bottle forward steadily and reliably. It is convenient to operate with higher automation due to every parts of the machine which is inspected to run with photo electrical detector. The machine is ideal-preferred equipment for beverage makes.
Filling line includes: - Unscrambler
Technical Parameters: |
Main Technical Parameters
Model |
HD10/10 |
HD20/12 |
HD24/14 |
HD30/30 |
Capacity(B/H) |
4000 |
8000 |
10000 |
18000 |
Bottle Size(MM) |
Diameter:50-90 Height: 110-280 |
|||
Power(KW) |
3 |
3.2 |
3.2 |
4 |
Dimension(MM) |
1600*1400*2100 |
1800*1600*2100 |
1900*1650*2100 |
2400*2000*2100 |
