Specifications
1, No need change and mould2, full automatic capping
3, 6000pcs/hr
4, suitable any size bottle and cap

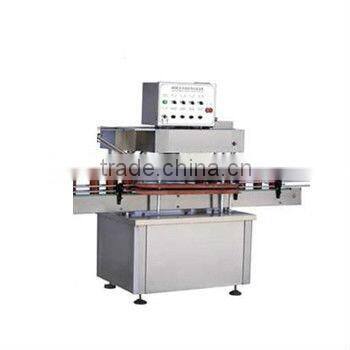

Automatic inline straight capping machine Main technical parameter
| |
Applied bottle range |
20-150mm |
Applied cap range |
12-120mm |
Yeild of capping |
more than 99% |
Power supply |
220v 50Hz |
Power consumption |
1kw |
Pressure |
0.4-0.6Mpa |
Speed control |
frequency conversion adjusting speed |
Weight about |
850kg |
Overall dimension |
2000*1100*1600mm(L*W*H) |
Production capacity |
5000-12000b/h |
Automatic inline straight capping machine Functions
Adopt agile module combination, new ideal design, suit to various bottle and cap-rotating.
Not need to change parts, easily adjust..
Easy operation and convenient for maintenance.
Three group capping consist of first rotating and re-rotating the degree of moment may be adjusted singly. Ensure that will be tight. The machine has clutch to avoid the cap over-rotating.
Two sets of bottle nipping and annular belt structure, Good effect for some bottles erecting unsteadily.
Cap arranging part, conveying part, cap-rotating, belt for bottle, nipping, all of speed can be governing separately, which is more utility.
Choosing automatic cap-sender and cap hopper.
