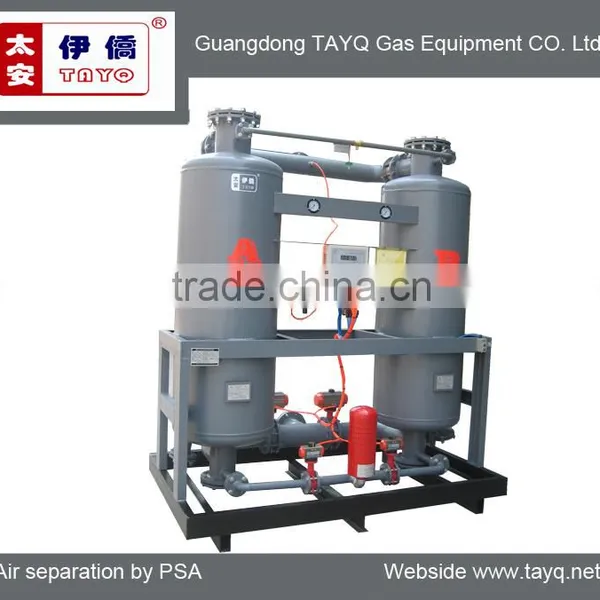

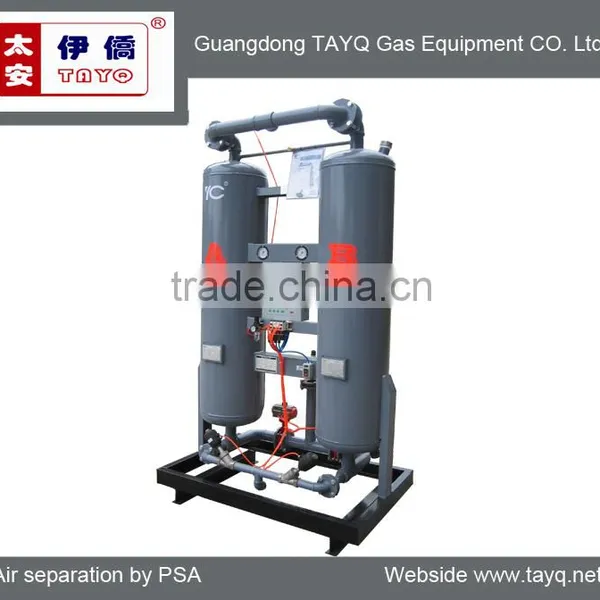

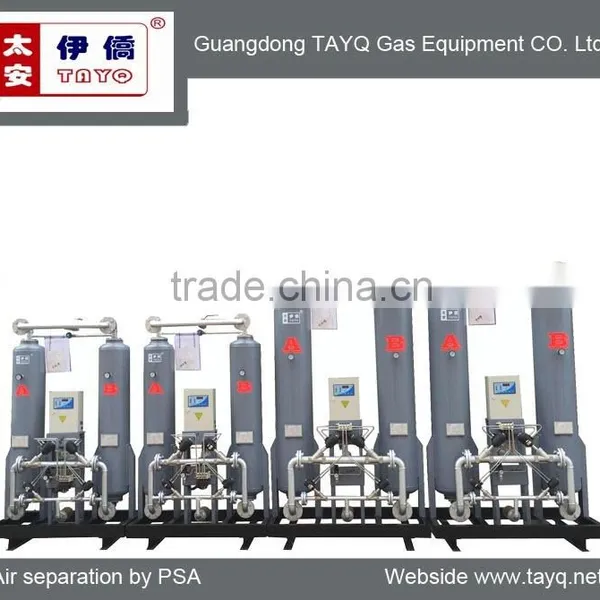

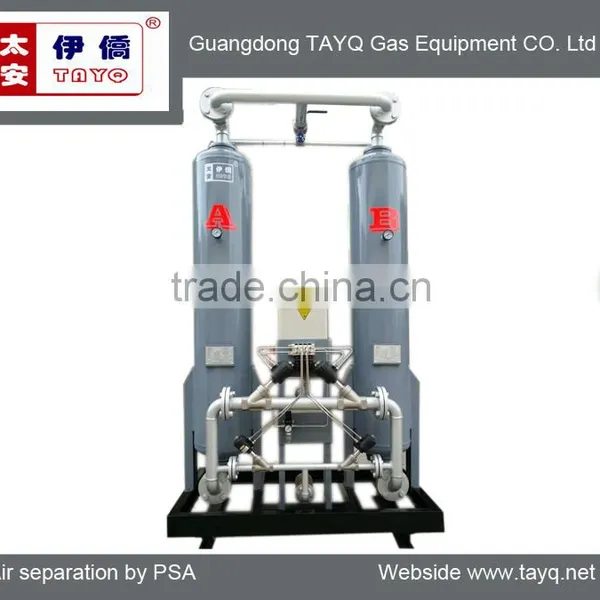

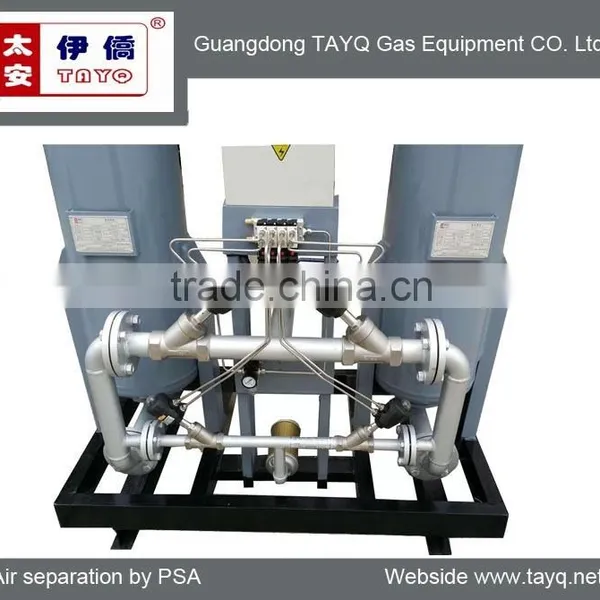

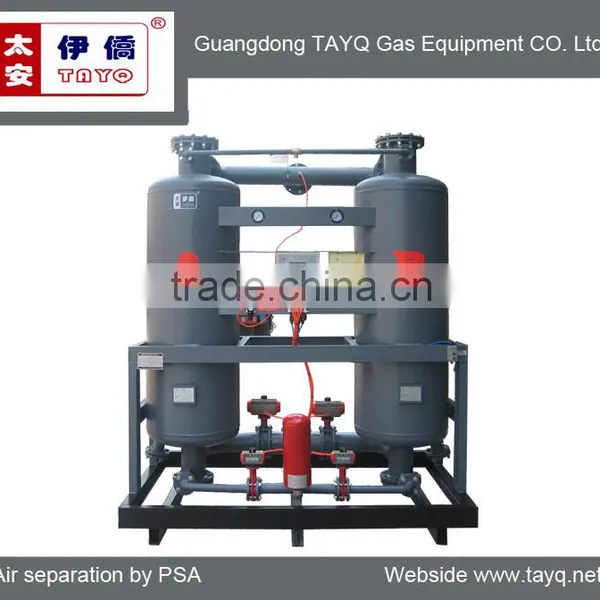

high quality heated regenerative adsorption dryer
- 1000 Unit / Units per Month
- shenzhen or guangzhou
- T/T Credit Card PayPal
- wood pulp oil filter distributors wanted hh150-32430 replacement oil filter for kubota
- Dongguan diesel generators engine assembly oil filter for generator
- 0020920601 High efficiency low cost diesel particulate filter cleaning diesel parts for MTU
- hot new products for 2015 companies looking for distributors alibaba express hot
- Best wholesale engine oil filter hydraulic oil filter cross reference
- china supplier alibaba express used engine oil specification
Product Details
Place of Origin: | Guangdong, China | Brand Name: | TAYQ | Model Number: | TQ-350XF |
Type: | Air Dryer |
Product Description
TQ Seris psa nitrogen generator high quality and low price
professinal manufactory over 15 year experinces
low running coat ,low pressure drop and steady dew point.microprocessor control.,hmi touch screen easy operate.
heatless adsoption air drer and micro heated asorption air dryer best price with high quality
Adsorption air dryer professinal manufacturer lowest price
Principle:
With drop force of bottom impact and side vibration, the manufacturer tightly fill the senior moisture-absorption chemical raw materials-molecular (Alumina) inside both drying towers. When the Moisture-Contained gas impacts the sorbent in a curve following specific flow direction, the vapor water in the air will be absorbed under the pressure state. The water will be released automatically from the sorbent with the instant pressure drop method when the sorbent absorbs the water and saturated. Just by this characteristic, this product works alternatively in the sequence of absorbing, releasing, regenerating and charging in the manner of shifting between two towers.
Features
1. The excellent design of the two tower or use our patent there towers desigh high efficiency
It can ensure activated aluminium oxide contact time enough to dry the saturated wet air entering in dryer to the needed dew point, 30% extra desiccative can compensate the desiccative consumption and ensure the life time, then guarantee the best performance
2. Adopts the large scale diffuser
To ensure the air stream well proportioned to get through the desiccative level
3. Reliable controlling system
3.1 Within 10 minutes period dry the compressed air to very low dew point of -40°C or within 4 minutes period dry to -70°C,and can be conditioned at site
3.2 Micro CPU control way , and the PLC control is optional
4. System Pressure drop is lower than 0.02MPa
5. Easily operation & easily maintenance
Power on-off switch, the period mode setting, power on light, regenerative on light
Technical parameters
Regeneration Way: Heatless regenerative
Cycle Period: 10~90min, adjustable
TQ Series heatless adsorption air dryer technical data | |||||||
Model No | Capacity(m³/min) | WeightKG) | Outlet diameter(mm) | Desicative(KG) | Power(W) | Voltage(V) | Dimension(MM) (L×W×H) |
TQ-10XF | 1.3 | 135 | 20 | 25 | 50 | 220V 50-60Hz | 800*550*1680 |
TQ-20XF | 2.6 | 205 | 25 | 55 | 50 | 220V 50-60Hz | 800*550*1680 |
TQ-30XF | 3.8 | 265 | 25 | 90 | 50 | 220V 50-60Hz | 900*600*1780 |
TQ-50XF | 6.8 | 370 | 40 | 155 | 60 | 220V 50-60Hz | 1050*650*2000 |
TQ-60XF | 7.6 | 425 | 40 | 175 | 60 | 220V 50-60Hz | 1050*650*2000 |
TQ-75XF | 10.5 | 480 | 50 | 250 | 60 | 220V 50-60Hz | 1150*700*2250 |
TQ-100XF | 14.5 | 630 | 50 | 305 | 60 | 220V 50-60Hz | 1250*750*2280 |
TQ-150XF | 21.6 | 945 | 65 | 385 | 60 | 220V 50-60Hz | 1450*950*2600 |
TQ-200XF | 28.5 | 1250 | 65 | 530 | 60 | 220V 50-60Hz | 1550*1050*2650 |
TQ-250XF | 33.5 | 1580 | 80 | 645 | 70 | 220V 50-60Hz | 1600*1100*2500 |
TQ-300XF | 38.0 | 1860 | 80 | 725 | 70 | 220V 50-60Hz | 1650*1150*2550 |
TQ-350XF | 45.0 | 2200 | 80 | 860 | 70 | 220V 50-60Hz | 1900*1200*2650 |
TQ-400XF | 51.0 | 2470 | 100 | 910 | 80 | 220V 50-60Hz | 2100*1250*2750 |
TQ-450XF | 58.0 | 2780 | 100 | 1050 | 80 | 220V 50-60Hz | 2150*1300*2750 |
TQ-500XF | 66.0 | 3200 | 100 | 1210 | 80 | 220V 50-60Hz | 2200*1350*2750 |
TQ-600XF | 75.0 | 3350 | 125 | 1360 | 80 | 220V 50-60Hz | 2400*1450*2750 |
TQ-700XF | 86.0 | 3780 | 125 | 1600 | 100 | 220V 50-60Hz | 2400*1500*2800 |
TQ-800XF | 95.0 | 4100 | 150 | 1850 | 100 | 220V 50-60Hz | 2450*1550*2800 |
TQ Series micro heated adsorption air dryer technical data | |||||||
Model No | Capacity(m³/min) | WeightKG) | Outlet diameter(mm) | Desicative(KG) | Power(W) | Voltage(V) | Dimension(MM) (L×W×H) |
TQ-10XFW | 1.3 | 145 | 20 | 22 | 1 | 220V 50-60Hz | 800*550*1680 |
TQ-20XFW | 2.6 | 215 | 25 | 48 | 1.5 | 220V 50-60Hz | 800*550*1680 |
TQ-30XFW | 3.8 | 275 | 25 | 80 | 1.8 | 220V 50-60Hz | 900*600*1780 |
TQ-50XFW | 6.6 | 395 | 40 | 120 | 2.3 | 220V 50-60Hz | 1050*650*2000 |
TQ-60XFW | 7.6 | 450 | 40 | 135 | 2.6 | 220V 50-60Hz | 1050*650*2000 |
TQ-75XFW | 10.5 | 520 | 50 | 215 | 3 | 380V 50-60Hz | 1150*700*2250 |
TQ-100XFW | 14.5 | 660 | 50 | 250 | 3.5 | 380V 50-60Hz | 1250*750*2280 |
TQ-150XFW | 21.6 | 980 | 65 | 330 | 4.6 | 380V 50-60Hz | 1450*950*2600 |
TQ-200XFW | 28.5 | 1285 | 65 | 450 | 5.5 | 380V 50-60Hz | 1550*1050*2650 |
TQ-250XFW | 33.5 | 1615 | 80 | 580 | 7 | 380V 50-60Hz | 1600*1100*2500 |
TQ-300XFW | 38.0 | 1990 | 80 | 630 | 8.5 | 380V 50-60Hz | 1650*1150*2550 |
TQ-350XFW | 45.0 | 2250 | 80 | 800 | 10 | 380V 50-60Hz | 1900*1200*2650 |
TQ-400XFW | 51.0 | 2520 | 100 | 840 | 12 | 380V 50-60Hz | 2100*1250*2750 |
TQ-450XFW | 58.0 | 2815 | 100 | 920 | 14 | 380V 50-60Hz | 2150*1300*2750 |
TQ-500XFW | 66.0 | 3250 | 100 | 1060 | 15 | 380V 50-60Hz | 2200*1350*2750 |
TQ-600XFW | 75.0 | 3520 | 125 | 1210 | 18 | 380V 50-60Hz | 2400*1450*2750 |
TQ-700XFW | 86.0 | 3850 | 125 | 1450 | 22 | 380V 50-60Hz | 2400*1500*2800 |
TQ-800XFW | 95.0 | 4200 | 150 | 1700 | 26 | 380V 50-60Hz | 2450*1550*2800 |
Drawing
Pictures
