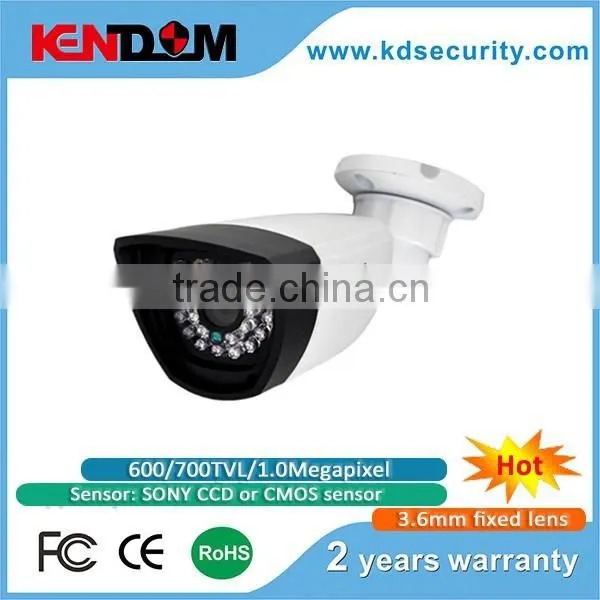

AHD cctv camera 30M IR Range analog camera best selling cctv camera
Product Features:
1) High Definition CMOS sensor
2) Resolution: 1.3megapixel/1.0megapixel/1300/800/700TVL
3) IR Leds: 30pcs of 5mm IR LEDs
4) IR Range: 20-30M IR Range
5) Lens: 3.6mm/6mm fixed lens
6) OSD menu, 3D DNR, Smart IR
7) IP range:IP66, high reliability
8) Material: Plastic casing
9) Maximum transmission distance, 75-3 coaxial cable transmission more than 500 Meter
Technical Parameter:
Model |
KD-IW1727PF |
|||
Type |
HD Digital Bullet Camera |
|||
Horizontal Resolution |
AHD 1.3megapixel |
AHD 1.0megapixel |
CMOS 1300TVL |
CMOS 800TVL |
Effective Pixels (HxV) |
1280(H)*960(V) |
1280(H)*720(V) |
1280(H)*960(V) |
976(H)*582(V) |
Signal System |
PAL / NTSC |
|||
Image Sensor |
1/3"SONY238 CMOS With IR-CUT |
1/4"OV9712 CMOS With IR-CUT |
1/3"SONY 138COMS With IR-CUT |
1/4"139 CMOS With IR-CUT |
Mini Illumination |
0.02lux(IR on) 0.00lux(IR off) |
0.05lux(IR on) 0.00lux(IR off) |
0.02lux(IR on) 0.00lux(IR off) |
0.1lux(IR on) 0.00lux(IR off) |
Lens |
3.6/6mm fixed lens |
|||
IR LEDs |
5mmX30PCS |
|||
Night Vision |
20-30M |
|||
OSD |
OSD |
OSD |
OSD |
- |
WDR |
WDR |
D-WDR |
D-WDR |
- |
DNR |
3D-DNR |
3D-DNR |
2D-DNR |
- |
AES |
PAL=1/50 ~1/100,000sec;NTSC=1/60 ~1/100,000sec |
|||
S/N Ratio |
> 48dB(Auto Gain Off) |
|||
BLC |
On/Off |
On/Off |
On |
On |
AGC |
Auto/Manual/Off |
Auto/Manual/Off |
Auto |
Auto |
White Balance |
ATW/Manual/Auto |
ATW/Manual/Auto |
ATW |
ATW |
Video Output |
1.0V P-P,75Ω |
|||
Operating Temperature |
-10 ~ 50℃(relative humidity: max95%) |
|||
Power Voltage |
DC12V±10% |
|||
IP range |
IP66 |
|||
Material |
Plastic |
|||
Dimension |
210(L) x80(W) x80(H)mm |
|||
Weight |
0.35 KG |
|||
The camera effect picture:
Application Places:
Apply to the financial, supermarket, telecommunications, government, schools, airports, factories, hotels, museums and other places of requirement of high-definition.
