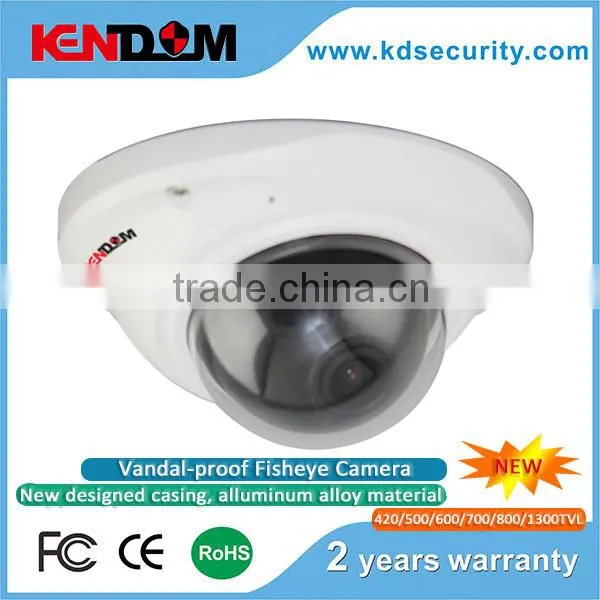

New dome camera with cmos sensor 2.4MG/2.0MG/1.3MG/1.0MG//700/600TVL fisheye camera
Product Features:
1) Sensor:CCD or CMOS sensor is optional
2) Resolution: 2.0MG/1.0MG//700/600
3) Lens: 1.8mm wide angel lens, up to 160 degree
4) Material: Aluminum alloy casing
5) OSD control cable is optional
6) IR Auto-open by CDS Control in Low illumination
More details:
1.) HD IP Weather-proof Camera
2.) Plug and play technology(P2P)
3.) H.264 video encoding, Dual Stream Output
3.) Support ONVIF2.0
4.) Offer CMS platform
4.) Support Iphone, Android, etc. Mobile View
5.) With IR-CUT Filter,low illumination
6.) Lens: 3.0 Megapixel HD 3.6mm lens
7.) IR Leds: 15pcs of 5mm IR LEDs
8.) IR Range: 10-15m IR Range

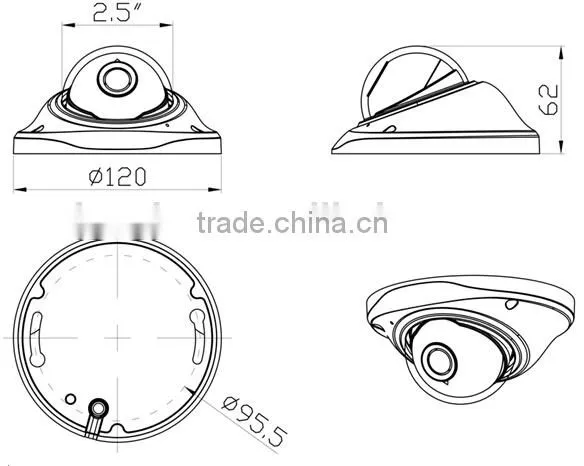

Structure Chart:
Technical Parameter:
Model |
KD-VD8007MF |
|||
Horizontal Resolution |
WDR 700TVL |
700TVL |
600TVL |
420TVL |
Effective Pixels (HxV) |
PAL:976×582 |
PAL:976×582 |
PAL:752×582 |
PAL:500×582 |
NTSC: 976x494 |
NTSC: 976x494 |
NTSC:768×494 |
NTSC:510×492 |
|
Signal System |
PAL / NTSC |
|||
Image Sensor |
1/3"SONY 662/663 CCD |
1/3"Sony 810/811 CCD |
1/3"Sony 638/639 CCD |
1/3"Sony 632/633 CCD |
Digital Signal Processor |
SONY Effio-P DSP |
SONY Effio-E DSP |
Nextchip 2090 DSP |
Sony 3142 DSP |
Mini Illumination |
0.02lux(IR on) 0.00lux(IR off) |
0.02lux(IR on) 0.00lux(IR off) |
0.05lux(IR on) 0.00lux(IR off) |
0.01lux(IR on) 0.00lux(IR off) |
Lens |
1.8mm wide angel lens, up to 160degree |
|||
IR LEDs |
No IR LEDS |
|||
Night Vision |
No |
|||
OSD |
OSD |
OSD |
OSD |
- |
WDR |
WDR |
D-WDR |
D-WDR |
- |
DNR |
3D-DNR |
3D-DNR |
2D-DNR |
- |
AES |
PAL=1/50 ~1/100,000sec;NTSC=1/60 ~1/100,000sec |
|||
S/N Ratio |
> 48dB(Auto Gain Off) |
|||
BLC |
On/Off |
On/Off |
On |
On |
AGC |
Auto/Manual/Off |
Auto/Manual/Off |
Auto |
Auto |
White Balance |
ATW/Manual/Auto |
ATW/Manual/Auto |
ATW |
ATW |
Video Output |
1.0V P-P,75Ω |
|||
Operating Temperature |
-10 ~ 50℃(relative humidity: max95%) |
|||
Power Voltage |
DC12V±10% |
|||
Suggest Power Adaptor |
DC12V/1A |
|||
Material |
Aluminum alloy |
|||
Dimension |
120(W) x120(H) x62(D)mm |
|||
Weight |
400g |
|||
Guarantee |
2 years |
|||
1/4" CMOS 1.0megapixel Full Real-time, 25FPS 720P |
HI3518E + OV9712 |
1.0 Megapixel |
1/4" CMOS 1.0megapixel Full Real-time, 30FPS 720P |
HI3518C + OV9712 |
1.0 Megapixel Low Lux |
1/3" CMOS 1.3megapixel Full Real-time, 30FPS 720P |
HI3518C + AR0130 |
1.3 Megapixel |
1/2.5" CMOS 2.0megapixel Full Real-time, 30FPS 1080P |
HI3516C + OV2710 |
2.0 Megapixel |
1/2.7" Sony CMOS 2.0megapixel Full Real-time, 30FPS 1080P, double board |
Hi3516C + IMX222 |
2.4 Megapixel |
1/2.7" Sony CMOS 2.0megapixel Full Real-time, 30FPS 1080P |
Hi3516C + IMX222 |
2.4 Megapixel Super Low Lux |
The camera effect picture:
Application Places:
Apply to the financial, supermarket, telecommunications, government, schools, airports, factories, hotels, museums and other places of requirement of high-definition.
