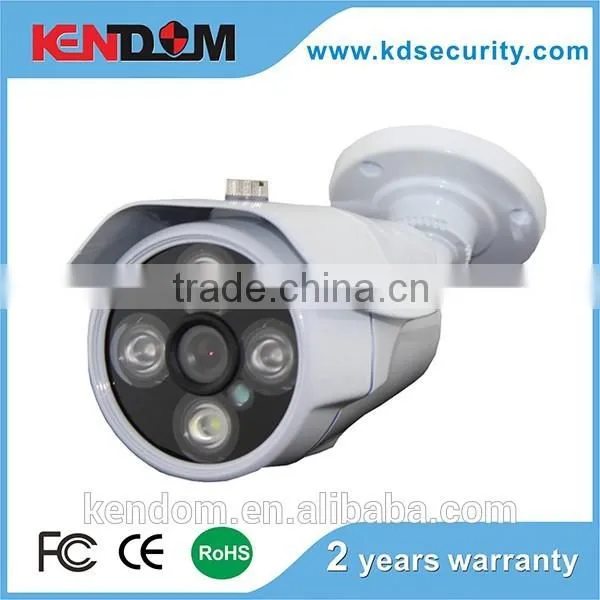

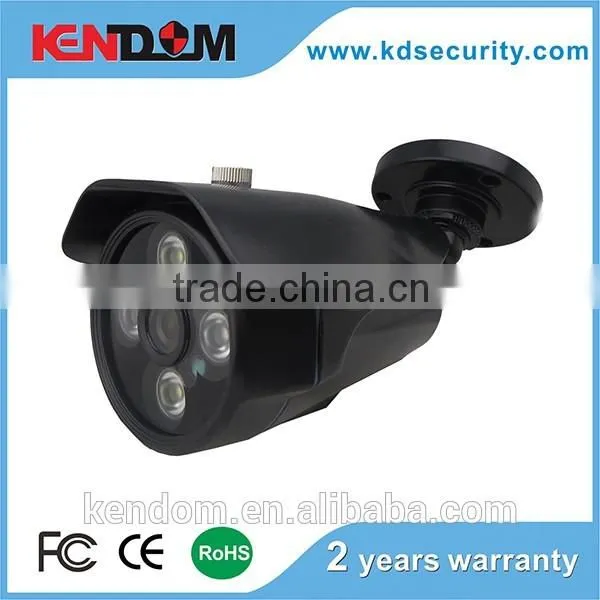

Kendom Dubai Alarm camera weatherproof fixed lens cctv camera with dvr CE FCC RoHS AHD camera
1.Alarm Camera's advantages:
1. Frighten intruder: Designed to frighten intruder enter your place at night
Strong LED light will irradiate the intruder enter your place at night
2. Motion detect: Designed motion detect function
3. Color Video: Get clearly color video if intruder enter at night
4. Warning: Warning signal will show on your monitor
5. Energy saving: Take it as energy saving lamp, as only people move it will open.
2.How to use alarm Camera
1. The alarm camera’s LED light will open 20 seconds for self-test once connect the power, then close.
2. Then all operate steps like normal analog camera.

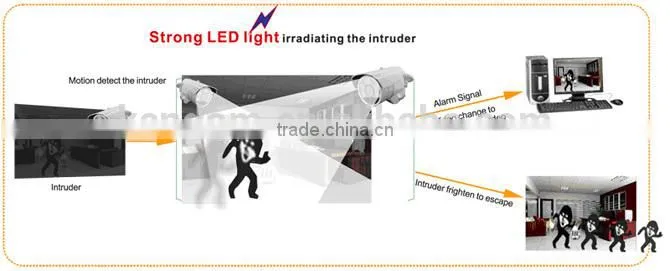

When the IR led open at dark environment, if any intruder enter, strong LED light will irradiate the intruder for 20 seconds, if he keep moving the strong LED light will always irradiate him.
3.Extra use, Set the detect sense level(distance): OSD menu—Motion Det (ON)—Detect Sense (default is 120) If<120 detect sensitivity is low, detect distance is short.
If>120 detect sensitivity is high, detect distance is long.
4. Extra use,if your alarm camera has OSD cable you can set the tracking signal shows on your monitor. OSD menu—Motion Det (ON)—Block Disp (ON)
3.Product Features:
1.) Alarm Camera
2.) Sensor: SONY CMOS
3.) Alarm DSP: designed by Kendom
4.) Resolution: 1.0/1.3/2.0MP
5.) Leds: 2pcs powerful led lamps
6.) IR Leds: 2pcs powerful IR led(new)
7.) Light range: 20-30 meter
8.) Lens: 3.6mm / 6mm fixed lens
9.) Material: Aluminium Alloy
4.Applications
Places need to frighten intruder
Places need higher quality color video recording at night
Places need light and energy saving.
5.Technical Parameter:
Model |
KD-AC9036BF-AH |
|||
Type |
AHD Alarm Camera |
|||
Item No. |
KD- AC9036BF-AH23 |
KD- AC9036BF-AH22 |
KD- AC9036BF-AH15 |
KD- AC9036BF-AH12 |
Horizontal Resolution |
AHD 2.0megapixel |
AHD 2.0megapixel |
AHD 1.3megapixel |
AHD 1.0megapixel |
Effective Pixels (HxV) |
1920(W)*1080(V) |
1920(W)*1080(V) |
1280(W)*960(V) |
1280(W)*720(V) |
Signal System |
PAL / NTSC |
|||
Image Sensor |
1/3"Sony IMX322 |
1/3"AR0230 |
1/3"Sony IMX238 |
1/4"AR0141 |
Alarm IC |
Kendom20IC |
Kendom20IC |
Kendom13IC |
Kendom10IC |
Mini Illumination |
0.02lux(IR off) |
0.05lux(IR off) |
0.02lux(IR off) |
0.05lux(IR off) |
Lens |
3.6/6mm HD fixed lens |
|||
IR LEDs |
2pcs powerful led lamps, 2pcs powerful IR led(new) |
|||
Night Vision |
20-30M |
|||
OSD |
0~99(default 70) |
0~99(default 70) |
0~99(default 70) |
0~99(default 70) |
OSD |
OSD |
OSD |
OSD |
OSD |
WDR |
WDR |
D-WDR |
D-WDR |
D-WDR |
DNR |
3D-DNR |
3D-DNR |
3D-DNR |
3D-DNR |
AES |
PAL=1/50 ~1/100,000sec;NTSC=1/60 ~1/100,000sec |
|||
S/N Ratio |
> 48dB(Auto Gain Off) |
|||
BLC |
On/Off |
On/Off |
On/Off |
On |
AGC |
Auto/Manual/Off |
Auto/Manual/Off |
Auto/Manual/Off |
Auto |
White Balance |
ATW/Manual/Auto |
ATW/Manual/Auto |
ATW/Manual/Auto |
ATW |
Operating Temperature |
-10 ~ 50℃(relative humidity: max95%) |
|||
Power Voltage |
DC12V±10% |
|||
IP range |
IP66 |
|||
Material |
Aluminum alloy |
|||
Weight |
0.6 KG |
|||
Dimension |
195(L) x108(W) x95(H)mm |
|||
The camera effect picture:
