JXSC new designed jig concentrating machine for diamond and barite

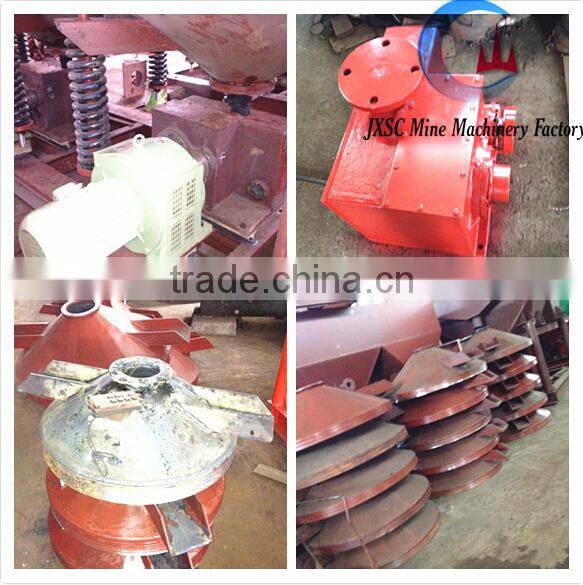

Detailed picture of jig concentrating machine
jig concentrating machine Discription
Jig machine is one of the most important gravity mining machine, which is widely used for big size (size over 3mm) mineral particles concentration.
jig concentrating machine application
Jig machine normally been used for primary processing of the raw ore, because of the high capacity and high efficiency. And also it's been used for the refining of the concentrate.
The jig machine was widely used in gold, diamond, tin, tungsten, coltan/columbite, hematite, ilmenite, iron ore mining.
Advantages of jig concentrating machine
1. high efficiency.
2. high capacity, compare with other gravity machine, the capacity of this machine is high.
3. continuously working, this machine could form a automatic processing line with other machines.
4. wide range of feeding size, this machine could concentrate the mineral with the size upto 20mm.
5. no pollution.
6. with small size, easy to install and move.

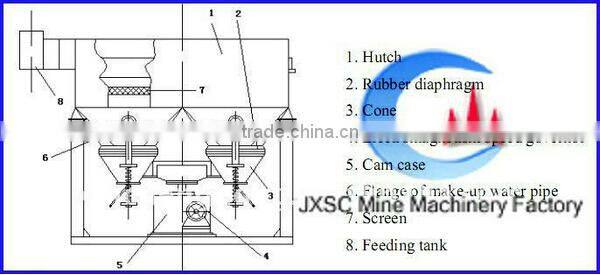

Structure of jig concentrating machine
Specification of jig concentrating machine
Model | Area jig | Stroke | Stroke | Feed size | Hutch water | Pressute water | Capacity | Power | Overrall dimensions | Weight |
| m2 | mm | r/min | mm | kg/cm2 | kg/cm2 | t/h | kw | mm | t |
JT0.57-1 | 0.57 | 8.5-12 (M12) | 60-160 | < 6 | 1-2 | ≥ 0.3 | 1-2.5 | 1.5 | 1560× 820 | 0.612 |
JT1-1 | 1.04 |
|
| < 10 | 2-3 |
| 4-10 | 2.2 | 1322× 1190 | 0.9 |
JT2-2 | 2.28 | 8.5-12 (M12) | 60-160 | < 10 | 2-4 | ≥ 0.3 | 8-15 | 3 | 3225× 1550 | 1.637 |
JT3-1 | 3.3 | 10-47 | 80-110 | < 20 | 3-6 | ≥ 0.1 | 10-15 | 5.5 | 2662× 2000 | 3.26 |
JT4-2 | 4 | 7-30 | 50-125 | < 10 | 4-8 | ≥ 0.1 | 8-16 | 7.5 | 4240× 1990 | 4.6 |
JT4-2A | 4 | 7-30 | 50-125 | < 10 | 4-8 | ≥ 0.1 | 8-16 | 4 | 4240× 1990 | 4.6 |
JT5-2 | 4.86 | 15-25 | 80-120 | < 10 | 4-10 | ≥ 0.1 | 10-20 | 7.5 | 3940× 2006 | 4.8 |

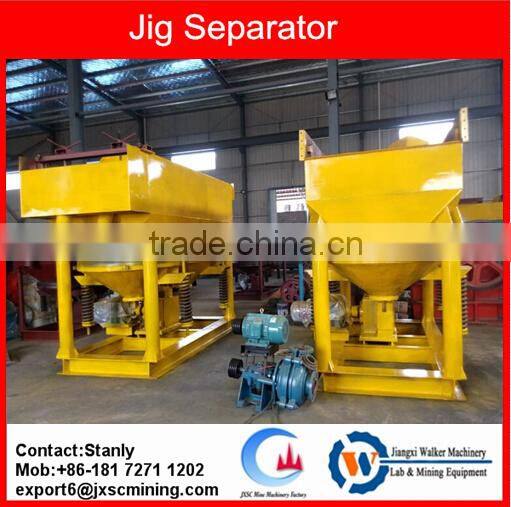

Jig machine working shop in JXSC factory

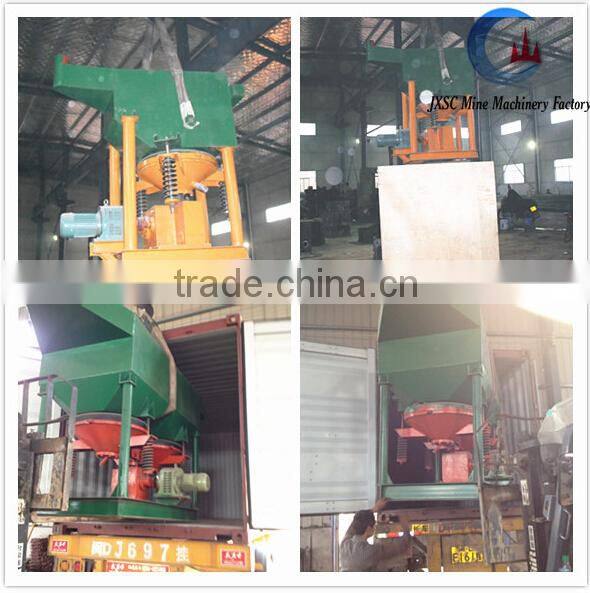

Packing of jig concentrating machine

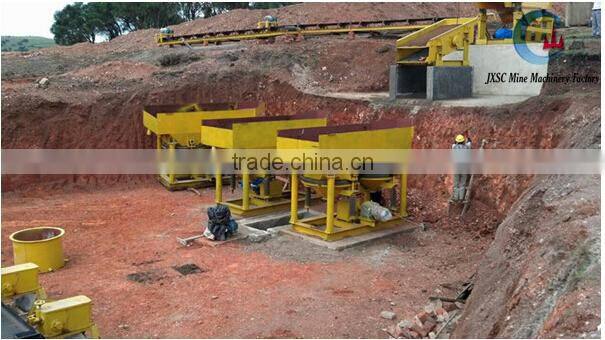

jig separator used in coltan washing plant
Any other question,Please please feel fre eto contact me
skype: manlyzhang
MOB/whatsapp: +86 1817271202
