JXSC STLB20 STLB30 STLB60 Centrifugal Gold Concentrator

JXSC STLB20 STLB30 STLB60 centrifugal gold concentrator

Description of   mini gold concentrator

The gold centrifugal seperator  for laboratory can process particle sizes from below 10 microns up to a maximum of 6mm. The centrifugal machine usually works for river gold/placer gold/alluvial gold process and beneficiation, which widely used in Africa area.

Application shows that the recovery can be as high as 99%, especially for the case in recovering the natural gold in lode ore with 65% of the ore having a mineral size -0.074mm, the recovery for the natural gold is expected up to 98%. For that natural gold of 0.004mm in particle size. The recovery is 97%. The cleaning up cycle is 1~4 hours. And the upgrade ratio is up to 1,000 times.

The Gold centrifugal concentrator also suitable for separate any heavy material from any light material.

Application of   mini gold concentrator

Most commonly used for recovery in Gold and Platinum. Other recovery uses include Mercury, Palladium, Tantalum, Copper, Silver and Diamond Indicator Minerals. There are many applications where the gold separator is of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.

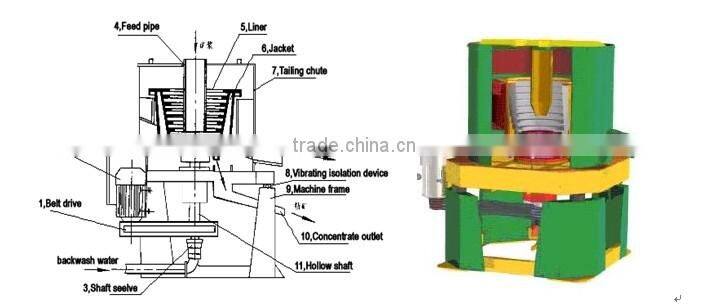

Structure of   mini gold concentrator

 Advantages & Features of   mini gold concentrator

1.High concentrating ratio and high recovery

2. Total process automation, steady recovery performance

3. Low energy consumptions

4. Environmentally friendly(requires no chemical additives or reagents)

5. Low water and electricity requirements

6. Low production costs, durable wear parts, minimal maintenances requirements

7. Compact design requiring less space, easy merged into the existing mining processing

8. Quick payback on investment, typically lass than half year

9. Rugged design and a high degree of quality manufacturing ensures that every Concentrator will provide many years of reliable, trouble-free operation in even the most severe operating environments.

Technical Specifications of     mini gold concentrator

We have 6 Models available. Capacity is from 0.25t/h to 200t/h. STLB20/STLB30/STLB60/STLB80/STLB100/STLB120 for different working capability.

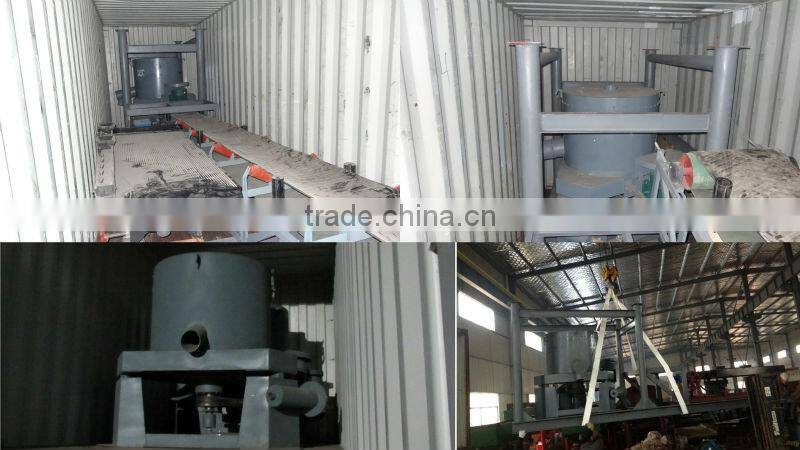

Loading of    mini gold concentrator

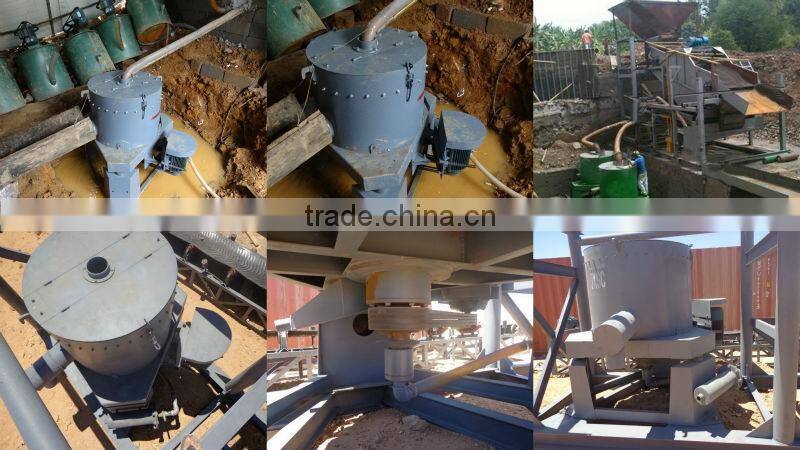

Customer site of  gold centrifugal seperator

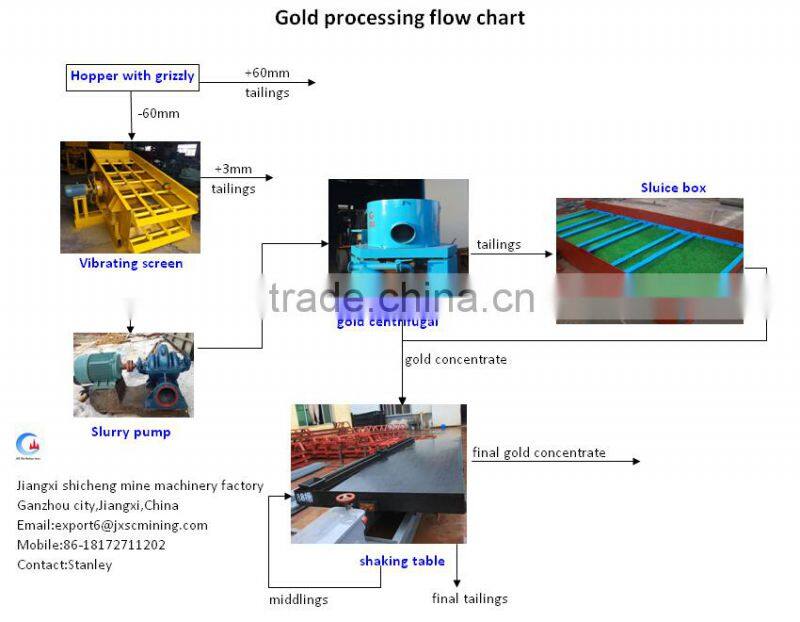

Gold centrifugal concentrator apply in grocessing plant
