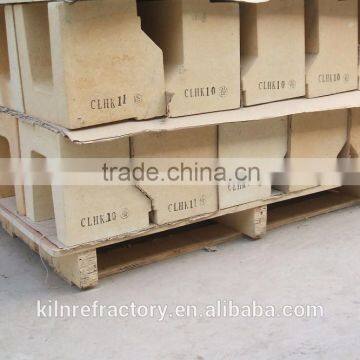

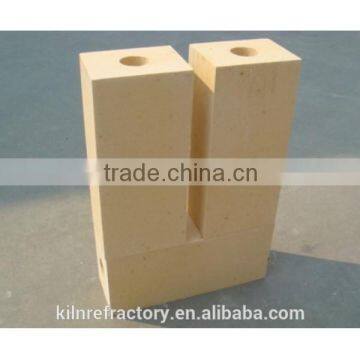

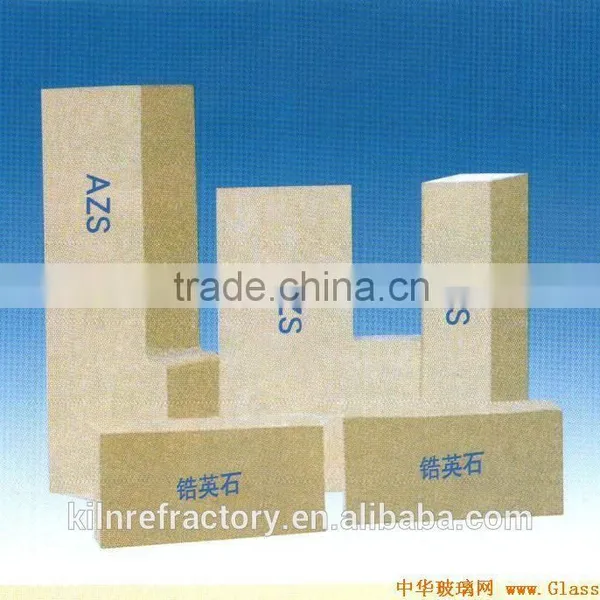

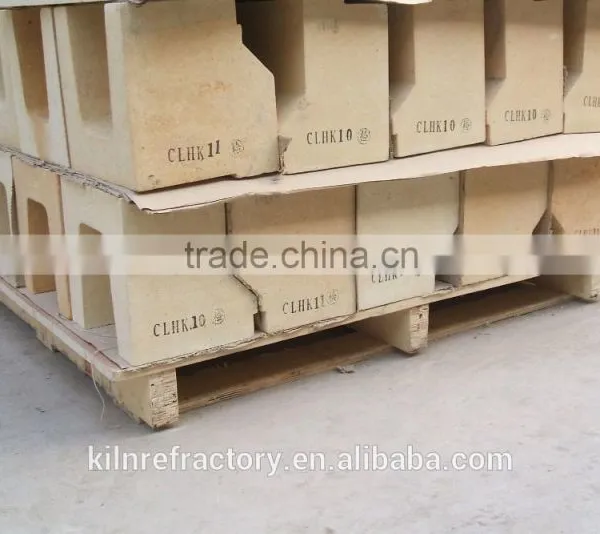

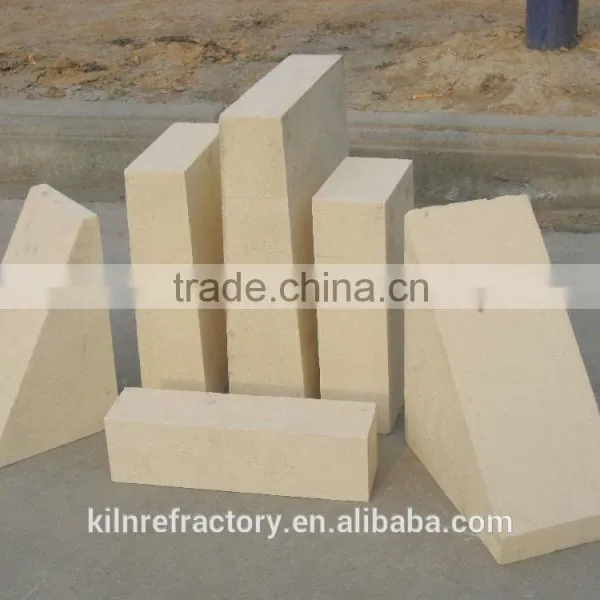

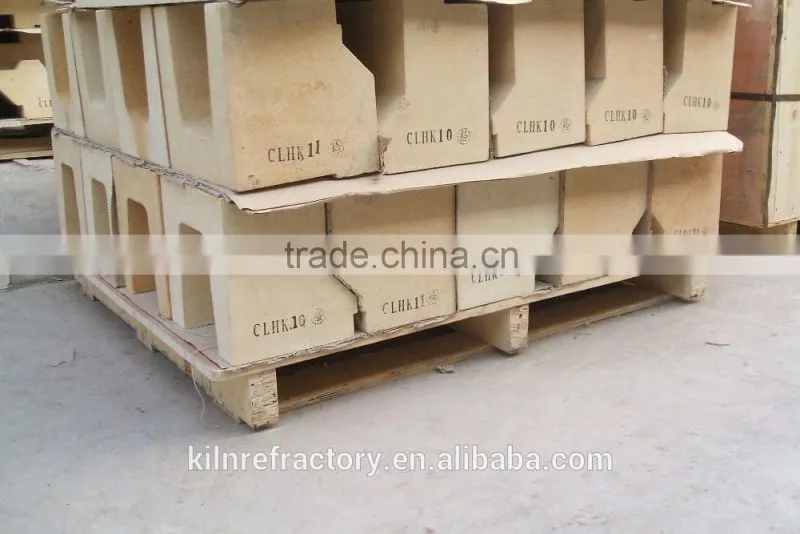

Good Thermal Shock Resistance Zirconia Glass Furnace Used Blocks
sintered zirconia bricks refractories belong to sintered ZrO2_Al2O3_SiO2 products family along with Zircon Mullite, Bonded AZS, Zirconia Corundum and Rebunded Fused Mullite bricks. Sintered ZrO2-Al2O3_SiO2 products like AZS have good resistance to alkali vapoor and thermal shock. and are mainly used in glass furnaces, they can stand aggressive conditions in contact with molten glass. Typical applications are superstructures, skew blocks, wall bricks and upper-checker in regenerators, paving, sub-paving and forehearth blocks in float glass furnaces. Rebunded Fused Mullite bricks (MFZ-6) is used as pure-oxygen burner blocks in alkali-free glass furnaces, crown blocks and arch blocks in ceramic frit furnaces or used in the areas of high tempreture and high thermal stress in oter industrial furnaces.
We offer complete line of sintered zirconia bricks - Bricks, Mortars, Castables at the most competitive prices, and we offer technical supports such as glass furnace design and installation consultant upon request.
We can produce sintered zirconia corundum brick according to your specification or requirements. Special detailed bricks technical data sheet are avalible upon request.
Good Thermal Shock Resistance Zirconia Glass Furnace Used Blocks Specifications
1.strong resistance to slag,
2.low thermal expansion coefficient
3.high refractories under load
sintered zirconia bricks Characteristics
The sintered zirconia bricks for Refractory Furnace possesses good features below
1.high refractoriness
2.erosion-resistance,
3.high performance under high temperature
Typical sintered zirconia bricks Specs
Products |
Zircon Mullite Brick |
Zircon Mullite Brick |
Bonded AZS Brick |
Bond AZS Brick |
Zirconia Corundum |
||||
|
Pressing |
Slip Casting |
Pressing |
Slip Casting |
Pressing |
Slip Casting |
Regular Shape |
Special Shape |
Pressing |
A2O3 (%) |
>=60 |
>=60 |
>=50 |
>=50 |
>=48 |
>=48 |
>=48 |
>=48 |
>=48 |
ZrO2 (%) |
20 +-1 |
19 +-1 |
30 +-1 |
29 +-1 |
30 +-1 |
29+-1 |
30 +-1 |
30 +-1 |
33 +-1 |
Fe2O3 (%) |
<0.5 |
<0.5 |
<0.5 |
<0.5 |
<0.5 |
<0.5 |
<0.5 |
<0.5 |
<0.5 |
Apparent Porosity (5) |
<=18 |
<=22 |
<=18 |
<=22 |
<=17 |
<=20 |
<=18 |
<=20 |
<=17 |
Bulk Density (g/cm3) |
>=3.0 |
>=2.75 |
>=3.05 |
>=2.8 |
>=3.10 |
>=2.90 |
>=3.0 |
>=2.92 |
>=3.20 |
Refractoriness under Load T0.6 (°C) |
>=1640 |
>=1600 |
>=1650 |
>=1630 |
>=1630 |
>=1600 |
>=1650 |
>=1630 |
>=1680 |
Cold Crushing Strength (MPa) |
>=100 |
>=80 |
>=100 |
>=80 |
>=100 |
>=80 |
>=100 |
>=100 |
>=100 |
Note: all chemical-physical data are obtained based on the corresponding standard sized refractory bricks | |||||||||
Good Thermal Shock Resistance Zirconia Glass Furnace Used Blocks
Technical Consultations and Services
1:Professional and well-experienced experts providing furnace engineering consultations and material ptimizing advices through face to face communication with customers.
2: Inspection,test,and quality supervision
3:Supplying all round service to ordered products, such as pre-assembly,marking etc.
4:Assigned technical staff keeping track of each project,providing professionallized furnace installing instructions and after sale services.
