Diatomite brick for furnace, light weight fire brick
- 1500 Ton / Tons per Month
- Qingdao Tianjin Shanghai
- T/T L/C D/P D/A Credit Card
- Shandong supplier fiber reinforced calcium silicate board
- Placa de silicato de calcio 1000 * 500 * 50 mm
- High density thermal insulation material, high-temperature refractory lining
- High density calcium silicate board, carbon fiber, glass fiber
- High density non stick calcium aluminosilicate board
- Cement plant, power plant, aluminum plant, steel plant, chemical plant, metallurgical industry, thermal insulation board
Product Details
Place of Origin: | Henan, China | Shape: | Brick | Material: | Diatomite |
SiO2 Content (%): | 65-70% | Al2O3 Content (%): | 16.5-20% | MgO Content (%): | none |
CaO Content (%): | 0.4% | CrO Content (%): | none | ||
SiC Content (%): | none | Model Number: | Diatomite Insulation Brick | Brand Name: | Dengda |
Product Description
Diatomite brick for furnace, light weight fire brick
Diatomite Brick Description
Description:
This diatomite insulating bricks are made of high diatomite, bonding with other porous materials. Produced by our licensed technology, shaping by casting, sintering at high temperature then cutting and polishing to the demand sizes, the strength and insulating property are obviously improved.
Application:
Diatomite insulating bricks can be used in reduction cell and hot blast pipe of various thermal equipment, which placed in the high requirement on heat-insulating.
A- standard of our supply
B- standard of GB
C- standard of industry
Diatomite brick for furnace, light weight fire brick
1.High insulating properties
2.Strong compressive strength
3.Low heat storage
4.High purity
5.Tight dimensional tolerance
6.Energy saving
7.Low impurities
Diatomite brick for furnace, light weight fire brick Specifications&Data
Item | Diatomite Brick | |||
0. 6 | 0.8 | 1.0 | 1.3 | |
Al2O3 (%) | 40 | 40 | 40 | 40 |
Fe2O3 (%) | 1.5 | 1.5 | 1.2 | 2 |
SiO2 | 55 | 55 | 55 | 55 |
Bulk Density (g/cm3) | 0.6 | 0.8 | 1.0 | 1.3 |
Apparent Porosity % | 70 | 60 | 55 | 50 |
Cold Crushing Strength(Mpa) ≥ | 2.0 | 2.5 | 3.0 | 4.0 |
Reheating Linear Change (%)°C X 12H ≤ | 1300℃ -0.5 | 1350℃ -0.5 | 1350℃ -0.9 | 1350℃ -0.9 |
Thermal Conductivity(W/m.k)(1000°C) | 0.33 | 0.60 | 0.45 | 0.8 |
Diatomite brick for furnace, light weight fire brick Application
Diatomite Insulation Refractory Brick mainly used for the insulating lining of hot surfaces or backing heat-insulating layers of other refractory materials. The refractory linings or heat-insulating materials of the industries, such as, ethylene pyrolysis furnaces, tubular furnaces, reforming furnaces of synthetic ammonia, gas generators and high-temperature shullte kilns,etc
Diatomite brick for furnace, light weight fire brick Size
Straight type | Arch type | Wedge type |
L×W×H (mm) 230×114×65 230×114×75 230×114×32 220×110×60 220×110×50 220×110×40 220×110×30 | L×W×H/h (mm) 230×114×65/55 230×114×65/45 230×114×65/59 220×110×65/50 220×110×75/65 220×110×60/40 | L×W×H/h (mm) 230×114×65/55 230×114×65/45 220×110×75/65 220×110×60/40 |
Other sizes according to customer requirements |
Diatomite brick for furnace, light weight fire brick Packaging & Shipping

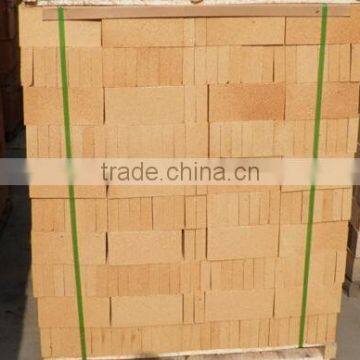

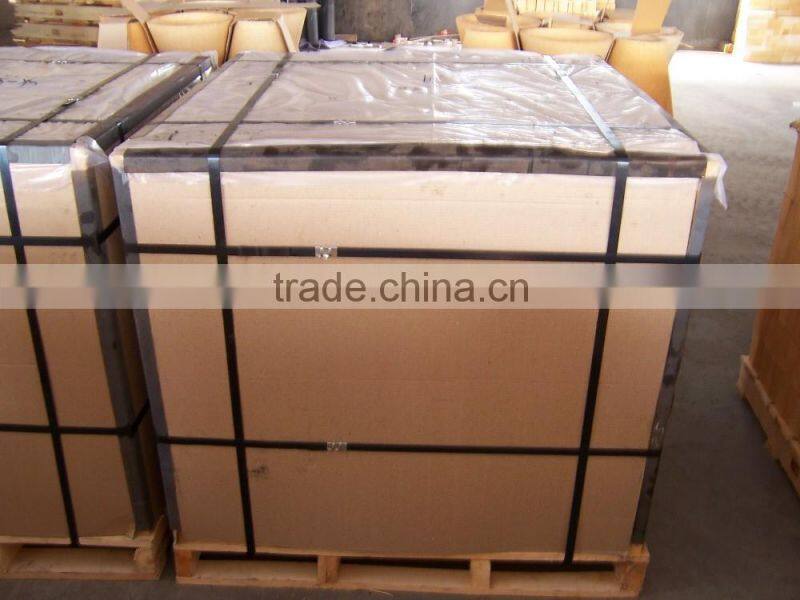

Diatomite Brick packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages
1.Best price, make the Insulating clay fire brick competitive in your market
2.Abundant Experience.
3.Strict Quality Control. Meet clients'quality requirement.
4.Large stocks. Guarantee prompt delivery.
5.Professional Packing. Avoid damage and secure the goods in transportation.
