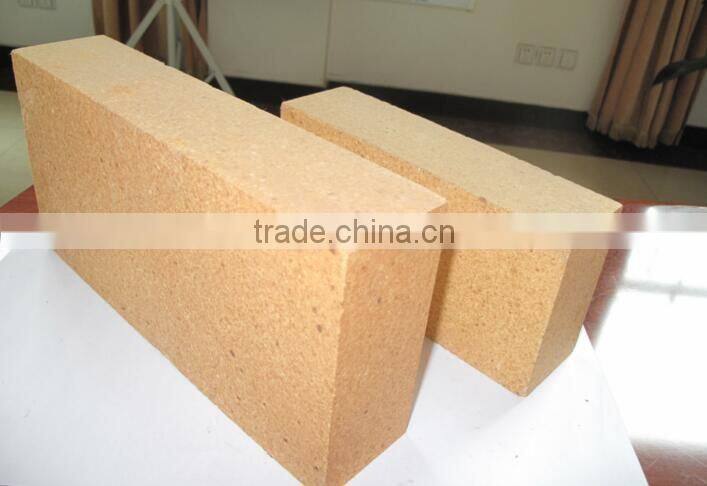

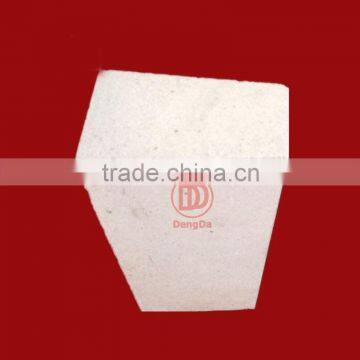

Manufacture SK32 SK34 Low Porosity Refractory Fire Clay Brick For Sale
Fire clay bricks are the most widely used refractories made from clay minerals. It can be easily located out in the nature and contains suitable content ratio of silica,cyanite and alumina. Some people call them fireplace bricks as they are used for building cooking chamber in wood fired ovens, for creating fireplaces, all sorts of fire boxes and wood heaters’ lining, linings in a small or the hugest industrial furnaces, you name it. Fire clay bricks have low porosity and are durable for various re-heating process.
Low porosity bricks are made from low mullite stones, the main mineral composition of the low mullite stones are pressed and sintered mullite phases. The bricks have very good physical and chemical properties in high temperature conditions.
Manufacture SK32 SK34 Low Porosity Refractory Fire Clay Brick For Sale
Features and advantages:
1.High refractoriness,
2.High-temperature endurable .
3.Good corrosion resistance.
4.Good spalling resistance and wear resistance.
5.Good thermal shock resistance.
6.High mechanical strength.
7.High-temperature creep rate is low.
8.Good volume stability at high temperature.
Manufacture SK32 SK34 Low Porosity Refractory Fire Clay Brick Physical And Chemical Indicators
Item |
Index |
|
Product |
SK32 |
SK34 |
Al2O3 |
38% |
38-45% |
Fe2O3 |
3% |
2.5% |
Bulk density |
≥2.1 g/cm3 |
≥2.2 g/cm3 |
Refractoriness |
≥1700℃ |
≥1730℃ |
Apparent porosity |
≤ 26% |
≤ 22% |
Cold crushing strength |
≥30MPa |
≥35MPa |
Refractoriness under load ( 0.2MPa) |
≥1250℃ |
≥1300℃ |
Reheating linear change(1500℃,2h) |
-0.5~0 |
-0.3~0 |
About Weight/PC |
3.5KG/PC |
3.65KG/PC |
PCS/Ton |
285PCS/Ton |
274PCS/Ton |
Item |
Low Porosity Clay Brick |
||
DN-12 |
DN-15 |
||
Refractoriness |
SK |
32 |
32 |
°C |
1770 |
1770 |
|
Chemical composition |
Al2O3 ≥ |
45 |
42 |
Fe2O3 ≤ |
1.2 |
1.5 |
|
Apparent Porosity% ≤ |
12 |
15 |
|
Bulk Density g/cm3 ≥ |
2.37 |
2.30 |
|
Cold Crushing Strength Mpa ≥ |
68 |
60 |
|
0.2Mpa Refractoriness Under Load T0.6 °C ≥ |
1500 |
1470 |
|
Reheating Linear Change(%) |
1400°C 2hour |
+0.05- -0.1 |
+0.0- -0.2 |
1350°C 2hour |
|
|
|

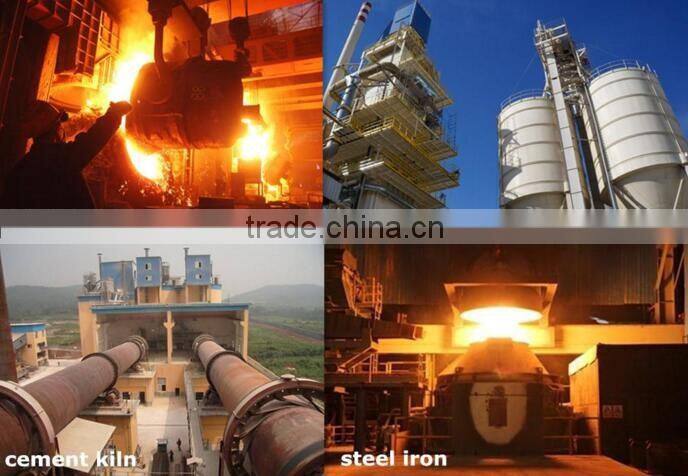

Fire Clay Brick Applications
Fire Clay bricks are mainly used in the low temperature parts of blast furnaces, waste incinerators and glass melting furnaces. Due to the scale-up of a variety of industrial furnaces and severity of operating conditions, super dense fire clay bricks that made of more refined chamotte being calcinated at high temperature are applied more than before. It's popular in the following furnaces:
1. Blast furnaces and hot blast furnaces
2. Waste incinerators
3. Glass melting furnaces
4.Metallurgical furnaces
