Help Center66mm 4ohm 10W Audio Speaker With Full Range
Related Products
-
50mm 8ohm 5W Internal Loudspeaker for Audio DeviceUS$ 1.2 - 1.7MOQ: 1000 Pieces -
50mm 4ohm 2W Small Music SpeakerUS$ 0.3 - 1MOQ: 500 Pieces
-
35mm 8ohm 3W Miniature Audio Speaker for LaptopNegotiableMOQ: 500 Pieces
-
57mm 4ohm 1W Miniature Round Ferrite SpeakerNegotiableMOQ: 500 Pieces
-
31mm 4ohm 2W Small Speaker for Audio DeviceNegotiableMOQ: 1000 Pieces
1.Description:
- 66mm full range speaker / 10w audio speaker
- Iron round basket with paper cone
- In wide frequency range and good sound
- ROHS compliant
2.Typical Applications:
- Music and singal output in machines and other equipment both indoors and outdoors
3.Technical Data:
| 1 | Model No. | 66FLP04M10(GP) |

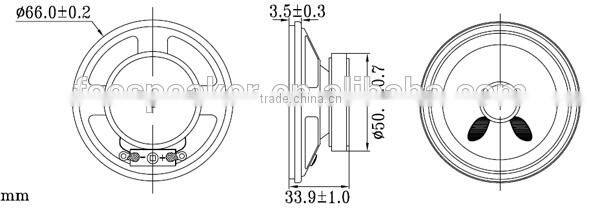

| 2 | Dimension | Outer Diameter 66mm,High 33.9mm |
| 3 | Nominal Impedance | 4 ohm |
| 4 | Power Rating | 10.0~15.0W |
| 5 | Lowest Resonant Frequency | 150 ± 30 Hz |
| 6 | Output Sound pressure Level | 86 ± 3 dB / 1 Watt 1 Meter |
| 7 | Frequency Range | 85~20K Hz |
4.Technical specifications:
All of our products are ROHS compliant.
