Specifications
1.4 port usb 3.0 hub2.Factory price
3.High speed, reach to 5Gbps
4.Available for logo printing, color, packing
2014 Hot Selling! High Speed 5Gbps por hub 4 Port USB 3.0 Hub
Compliant with USB Specification 4 port usb 3.0 hub
- Upstream port supports super speed(SS) high speed(HS) and full speed(FS) traffic.
- 3 downstream ports support SS, HS, FS, and low speed(LS) traffic.
- 1 downstream ports support HS, FS, and low speed(LS) traffic.
- 1 control pipe(endpoint 0, 64-byte data payload) and 1 interrupt pipe(endpoint 1, 1-byte data payload)
- Backward compatible to USB specification Revision 2.0/1.1.
- Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices.
- Supports USB data transfer rate of 1.5/12/480/5000 Mbps.
- Compliant with Universal Serial Bus 3.0 specification Revision 1.0.
- Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 0.96.
Smart Power Management
- Support USB3.0 U0/U1/U2/U3 power management states.
- Support gang mode over-current detection.
- Support both low/high-enabled power switches.
- Automatic switching between self-powered and bus-powered modes.
- Each USB port supplies maximum +5V / 900mA power output to USB device*
- Built-in DC jack power connector for receiving extra power from power adapter.
- Hot-swapping feature allows you to connect/disconnect devices without powering down the system.
- Driver free under Microsoft Windows 2000, XP, Vista, 7, Mac OS X and Linux operation system.
| Model Number: | HY0061A-10 | Ports: | 4 port usb 3.0 hub |
| Style: | USB 3.0 HUB | Chipset: | GL3520 |
| Interface: | USB 3.0 | Tansfer rate: | 5Gbps |
| Current: | 900mA per port | Voltage: | 5V |
| Power Supply: | No external power supply needed | Material: | ABS |
| Application: | Desktop and laptop | Capability: | Plu & play and hot swapping |
| Color: | Customized | Logo printing: | Available |
| Mini order qty: | 500pcs | Dimension: | 10*4.35*2 CM |
| Productivity: | 10000pcs/month | Packing: | Blister |
| Certificates: | CE&RoHS | Warranty: | 1 year |
| OS Support: | Driver free under Microsoft Windows(7, 8, 2000, XP, Vista), MacOS X, Linux operation system, Android System |
Features:
1) Made of high-strength ABS plastic, compact size & lightweight, easy to carry
2) Features LED power indicator design, straightforward
3) 4 port USB interface support hot-swappable, plug and play, easy to use
4) Interface parallel arrangement, the use of non-interfering, good compatibility
5) Cable length 30cm, good flexibility, and is more convenient to use
6) Supports overload voltage and instantaneous current protection,
effective protection of connected devices and HUB
7) USB3.0 interface theoretical transfer rate of up to 5Gbps, and downward compatible USB2.0/USB1.1
8) Free driver supports Windows XP/Vista/7/8 & USB support MAC

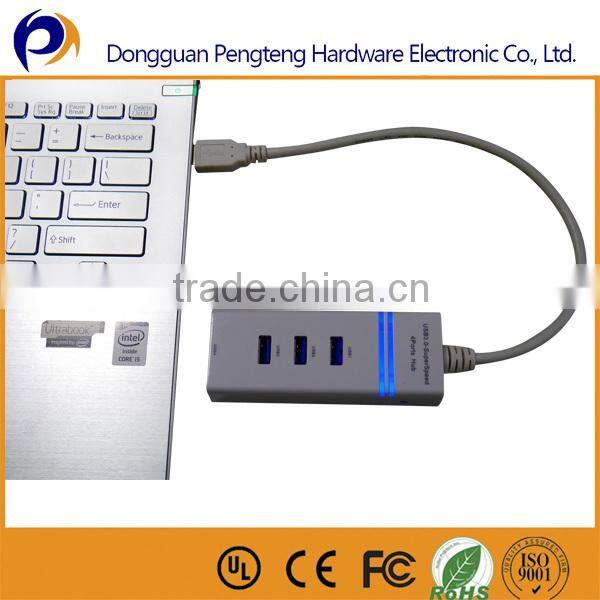

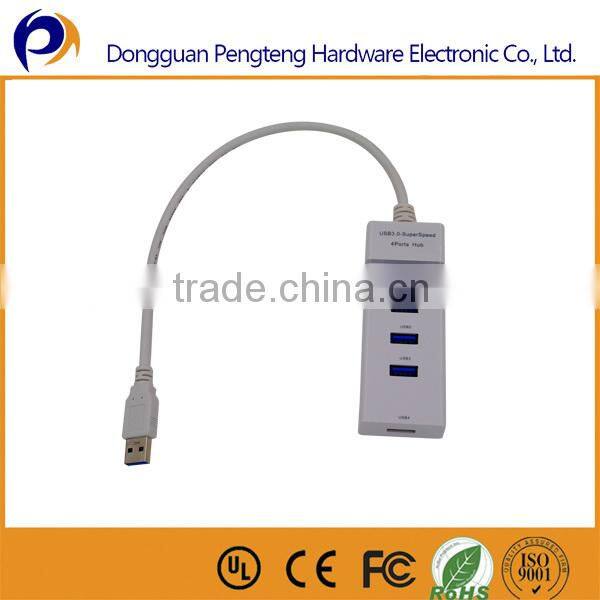

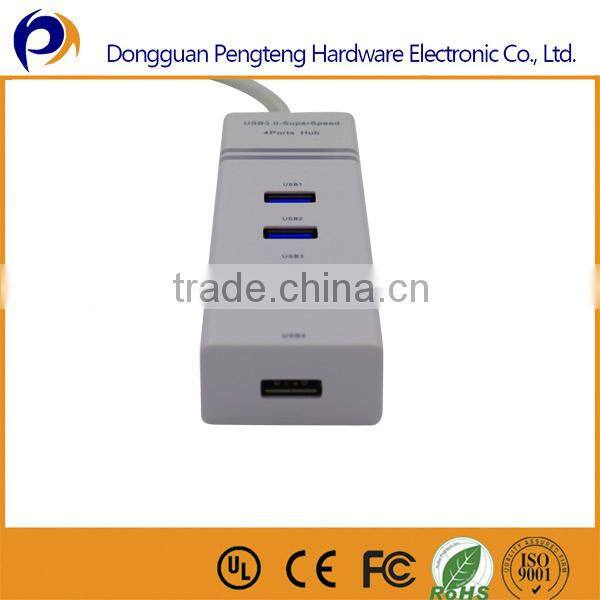

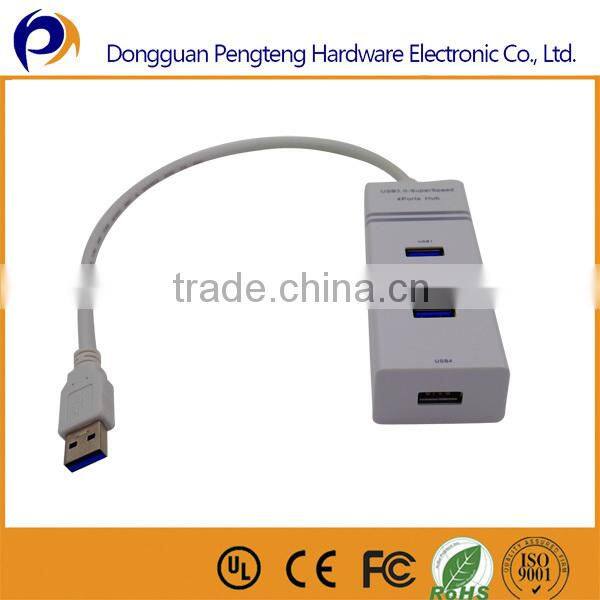

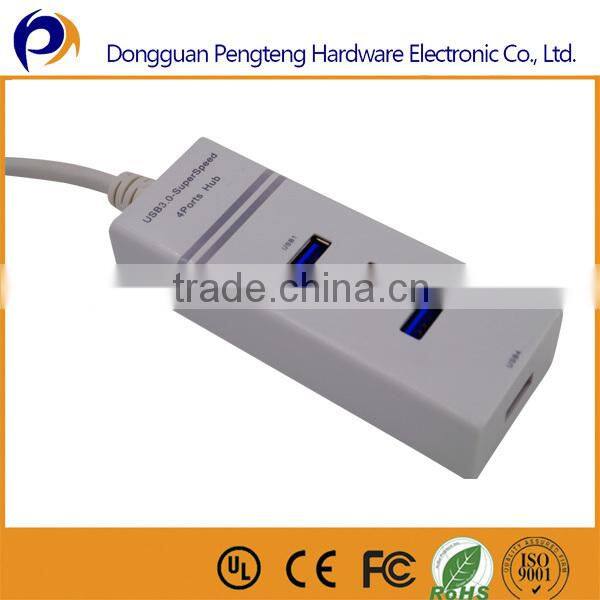

Product Show:
1. As a professional supplier / exporter who is specialized in technical design, we have amassed a large variety of mobile phone accessories and retractable cable as well as retractable earphones in order to make your sourcing process faster and simpler.
2. We provide customization services. Our team of R&D staff can supply samples in six days.
3. We have a strong sales team; we can provide the best service to customers.
1. Own factory, Low Price, Fast delivery
2. Professional manufacturer for 8 years.
3. Small batch order advantage, flexibly in dealing with orders
4. Quality: Strict control of raw materials and the production process
5. Development and design ability ( we have several products with patent)
6. Professional services team, dealing with all kinds of documents / payment & good at logistics operations
7. Support for Alibaba e-credit line payments and other payment methods
8. OEM/ODM service
We have enough confidence to be your best partner in China .
Welcome to send our E-mail or call us !
| Sample Transportation Methods | Destination | General Delivery Time (not including holiday) | |
| Express ( DHL / UPS / FedEx / TNT / EMS ) | Asia Countries | 3-5 working days | |
| USA / Australia | 3-7 working days | ||
| Europe | 3-7 working days | ||
| South America | 5-8 working days | ||
What is A USB HUB?
A USB hub is a device that expands a single USB port into several so that there are more ports
available to connect devices to a host system.
