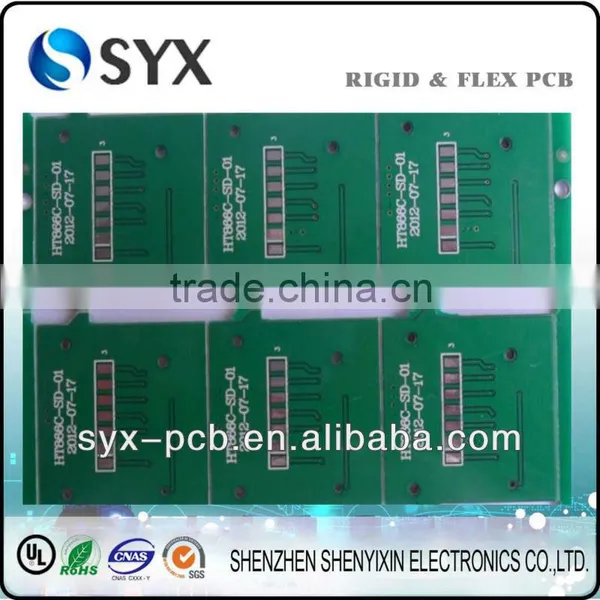

OEM FR4 Flex PCB Printed Circuit Board Factory(Ceramic,FR4,Aluminium Material,PCB Assembly Manufacturer)

US$ 0.08 - 1 MOQ: 1 Square Centimeter

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SYX

Model Number:

SYX-A84

Contact Supplier Request Quote Chat Now

Shenzhen Shenyixin Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SYX

Model Number SYX-A84

Base Material FR4

Copper Thickness 1.0 oz

Board Thickness 1.6mm

Min. Hole Size 0.3mm

Min. Line Width 3mil

Min. Line Spacing 3mil

Surface Finishing HASL(lead free)Our Factory Manufacture Capability Item Manufacture C

Specifications

1.OEM printed circiut board factor
2.Contract printed circuit board factory
3.SMT and DIP
4.FR4 PCB Assembly
5.FR4,alumi

Our Factory Manufacture Capability

Item	Manufacture Capability
Board Material	FR-4
Layer	1-12
Finished Board thickness	0.2 mm-3.8mm ( 8 mil-150 mil )
Board Thickness Tolerance	±10%
Copper thickness	0.5 OZ--2.0OZ
Impedance Control	YES
Hole tolerance	PTH:±0.075mm NPTH: ±0.05mm
Min drilled Hole size	0.15mm(6mil)
Min Laser hole size	0.1mm(4mil)
Min Space Width	0.075mm (3 mil)
Min Trace Width	0.075mm(3mil)
BGA Pitch	0.2 mm (8 mil)
Solder mask Color	Green , Red , Blue , Black , White
Panel Outline Tol (+/-)	CNC: ±0.125mm, Punching: ±0.15mm
Surface finish/treatment	HASL/HASL lead free , Immersion Gold
Certificate	ROHS, ISO9001:2008, SGS, UL certificate

PCB ASSEMBLY

Use a good drawing package that will locate the components you are using on the printed circuit board.
View your Gerber and Excellon files with a separate viewer, not just the one provided to you by your design package.
Consult with your PCB assembler to insure the finish you chose will work best with their assembly processes.
Begin by placing the components that require a specific location first.
Leave at least 100 mils between components and the Printed Circuit Board edge.
Attempt to space out your components evenly horizontally and vertically, and orient like printed circuit board components the same direction whenever possible. Insure that the orientation of polarized parts is the same. Avoid placing your components at angles other than 0 or 90 degrees
When it is necessary to have components on both sides, keep sensitive, heavy, or through hole components on the primary side. Also, any components that need special attention should be kept on the primary side of the printed circuit board as well.
When deciding where to place PCB assembly components, always attempt to minimize trace lengths.
Consider the volume of the run. If you have a low volume then PCB assembly by hand is a viable option. If you have a high volume run, it is most cost efficient to use automated printed circuit board assembly. Also, the volume is not only determined by the number of printed circuit boards ordered but also by the number of components on each PCB. Check with your PCB assembler to determine what volume your run is considered.
