Specifications

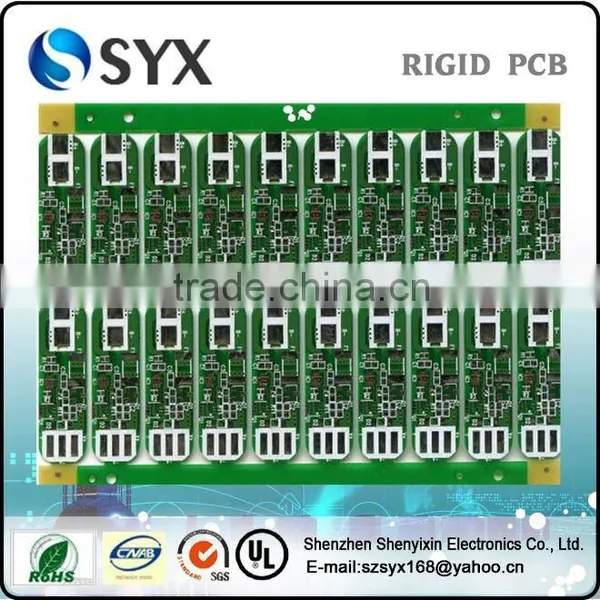

pcb making machine1.UL,ROHS,ISO,SGS,Layer:2-20
2.8 years experience in PCB
3.Drill Size:0.1mm,line:3 mil
Immersion gold circuit pcb, pcba & fpc , multilayer pcb, pcb making machine
Our Factory Manufacture Capability
Item |
Manufacture Capability |
Material |
FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant) /CEM-3, Aluminum, Metal based |
Layer No. |
1-- 20 |
Finished Board thickness |
0.2 mm-4.0mm’(8 mil-160 mil) |
Board Thickness Tolerance |
±10% |
Cooper thickness |
0.5 OZ-6OZ (18 um-210 um) |
Copper Plating Hole |
18-40 um |
Impedance Control |
±10% |
Warp &Twist |
0.50% |
Peelable |
0.012"(0.3mm)-0.02’(0.5mm) |
Images | |
Min Trace Width |
0.075mm (3mil) |
Min Space Width |
0.075mm (3mil) |
Min Annular Ring |
0.1mm (4 mil) |
Solder Mask | |
Min Solder Mask Dam |
0.0635 mm (2.5mil) |
Solder mask Clearance |
0.1mm (4 mil) |
Holes | |
Min Hole size (CNC) |
0.1 mm (4 mil) |
Min Punch Hole Size |
0.9 mm (35 mil) |
Hole Size Tol (+/-) |
PTH:±0.075mm;NPTH: ±0.05mm |
Hole Position Tol |
±0.075mm |
Plating | |
HASL |
2.5um |
Lead free HASL |
2.5um |
Immersion Gold |
Nickel 3-7um Au:1-5u'' |
OSP |
0.2-0.5um |
Certificate |
ROHS, SGS, UL, ISO9001: 2008. |
if you have specific requirements, please feel free to contact us.
We can do the best.
