Filling Equipment

Name: Filling Equipment
Brand: keyuan
SKU: 110261817

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Beverage

Packaging Type:

Bottles

Zhangjiagang Keyuan Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Beverage

Packaging Type Bottles

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Electric

Place of Origin Jiangsu, China

Brand Name keyuan

Model Number KB

Specifications

Washing, filling, capping machine
1.Glass or PET bottle
2.Vol:200-2000ml
3.High efficiency
4.Advanced technology

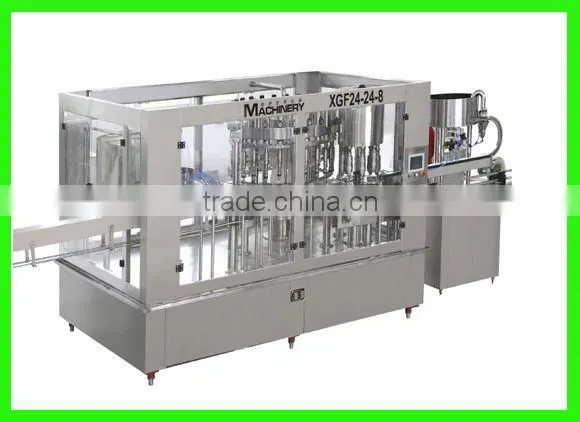

3-in-1 Bottled Water Filling Plant

Characterisitics

1.The washing , filling and capping 3 kinds of actions will be finished just by one machine

2.It is very convenient to change diverse sizes of bottles by means of advanced bottleneck clamping&bottle suspending technology

3.Advanced programmable PLC is equipped to control the main machine

4. Woking speed can be adjustedby frequency conversion device

Specification

Model(KB)	12-12-5	18-18-6	24-24-8	32-32-8	40-40-10	50-50-12	60-60-15	80-80-20
Number of washing,filling,capping heads	12-12-5	18-18-6	24-24-8	32-32-8	40-40-10	50-50-12	60-60-15	80-80-20
Suited bottle specification (mm)	Φ=50-100 H=170 330-1500ML			Φ50-Φ110 H=160-340
Production capacity(350ML) b/h	2000- 4000	4000- 6000	8000- 10000	10000-12500	12500 -15000	16000 -20000	20000 -24000	26000 -32000
Washing pressure (MPa)	0.2-0.25			0.2-0.25
Filling pressure (MPa)	0.15-0.35	0.15-0.35	0.15-0.35	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Motor power	1.5+0.55 +0.12	2.2+0.55 +0.18	3+0.55 +0.18	5.5+0.55 +0.18	7.5	11	15	19
Overall dimensions (L×W×H) mm	2300×1600 ×2500	2600×1920 ×2550	3100×2200 ×2800	3850×3000 ×2850	4850×3800 ×2750	5750×3550 ×2750	6500×5500 ×2750	7680×6640 ×2650
Weight kg	2800	3650	4800	6800	8650	10500	12800	15000
