Specifications
Semi-automatic shrink packaging machine1.wooden/plastic
2.stainless steel 304
3.semi-automatic
4.one year warranty

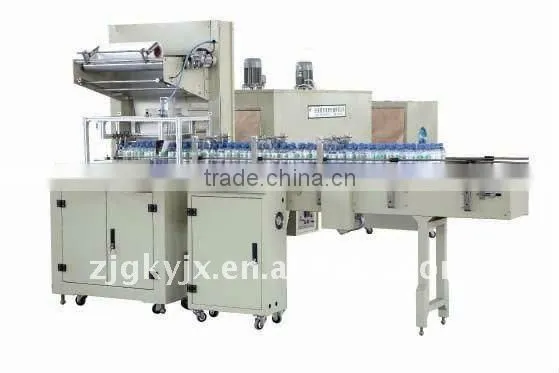

Semi-automatic shrink packaging machine
Specially designed for the full automaPc packaging production line of beer, beverago,pure water, fruil juice,dairy products,elc
With full automatic functions of bottle transfer and arrange,membrane paoking,sealing and cut, shrinkage,cooling and shaping,etc
Using advanced conatant temperature membrane heat binding technology in the world with clear and secure seal.
The quick seal cooling structure guarantee that the seal has a highor strength even if under high speed production condition.
Adopt with PLC automalic program circulation control with stable and reliable performance.
The original imported guido bar cylinder guarantee corroct operation and durable.
The inductive switch controls the membrano transfer system to reliably adjust and control membrane transfer length with less loss
All the transfer systom is controlled by frequency changing devices with stable and smooth transfer speed.
Unique thermal passage with centrifugal thermal air circulation system that has an equal heat distribution with beautiful and secure shrinkage effect
3 layers of heat insulation treatment with good insulating properly,quick temperature rise and energy saving.
The enhanced cooling shaping passage can quickly turn the packaging membrane into high strength status that is conveniently stored and transpoded
It is easy to change Ihe packaging combination and bottle type to integrate the multi-function into
Dimension for the whole unit |
L5500mm*W3200mm*H2100mm |
Thermal shrinkage passage dimension |
L1800mm*W650mm*H450mm |
| Max.package dimension | L600mm*W400mm*H350mm |
| Trabsfer belt dimension | 10-15Pcs/minute |
Operating power supply/power |
0.5-1s 140°C-160°C |
Packaging speed |
800-1200mm |
Sealing and cut time/temperature |
380V 19KW |
Operating air pressure |
0.6-0.8Mpa |
Air consumption |
0.5m3/minute |
Zhangjiagang Keyuan Machinery Co., Ltd. is a modern technical enterprise set up to meet the 21st century's development demand regarding beverage packing machinery and all sorts of water treatment facilities. Our company has production experience of more than 20 years. Our company is a professional enterprise producing full sets of beverage packing machinery and all sorts of water treatment facilities, integrating product development, scientific research & design, production, technical service and marketing.
At present, our company provides the following production lines:
Complete sets of gas containing drink production lines
Complete sets of Mineral water and spring water production lines
Complete sets of Pure water production lines
Complete sets of Fruit juice production lines
Bean milk & protein drink production lines
Complete sets of white spirit, soy and vinegar filling production lines
Keyuan would like to move forward together with you and will spare no effort. Welcome to Keyuan
1.Products since the acceptance inspection, one year warranty, life-long maintenance;
2.Free for the buyer personnel to technical training, (or on-site technical training)
3.The quality problem or the supplier of parts and equipment damage caused by careless operation and equipment failure, the 4.Supplier provide high quality, favorable service;
