automatic heat shrink packing machine

Specifications

1.suit for pure water, beverage, beer, wine etc
2.capacity:10-15pcs/min
3.PLC automatic
4. reduce consumption and durable

 products introduction

1) Specially designed for the full anto packaging production line for beers,beverage,pure water ,fruit juice ,dairy products,ect.

2) With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinkage, cooling and shaping, etc.

3)Adopt with PLC automatic program circulation control with stable and reliable performance.

4)3 layers of heat insulation treatment with good insulting property, quick temperature rise and energy saving.

5)The enhanced cooling shaping passage can quickly turn the packing membrane into high strength status that is conveniently stored and transported.

6)It is easy to change the packaging combination and bottle type to integrate the multi-function into one machine.

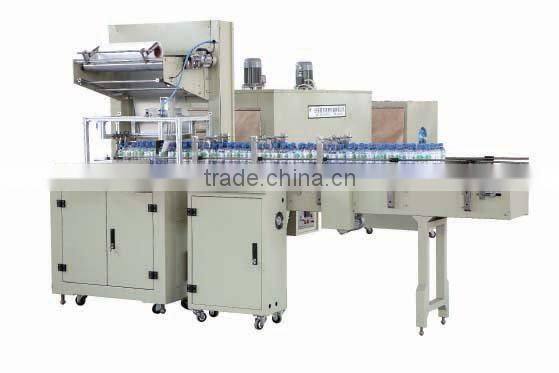

 products show







 main technical parameters



Dimension for the whole unit:	L5500mm×W3200mm×H2100mm
Thermal shrinkage passage dimension:	L1800mm×W650mm×H450mm
Max. package dimension:	L600mm×W400mm×H350mm
Transfer belt dimension:	800-1200mm
Packaging speed:	10-15Pcs/minute
Operating power supply/power:	380V 19KW
Sealing and cut time/temperature:	0.5-1.5s 140oC-160oC
Operating air pressure:	0.6-0.8Mpa
Air consumption:	0.5m3/minute
