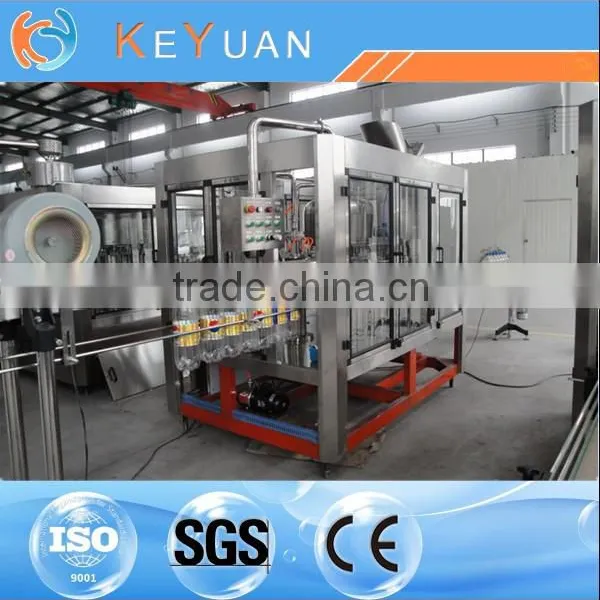

Water filling machinery/Automatic Non-carbonated Liquid Filling Machinery

Specifications

1.Certification:CE ISO
2.The speed of filling is fast
3.The liquid amount is controlled accurately
4.Its automation is high

Automatic  Water filling machinery/Automatic Non-carbonated Liquid Filling Machinery

Its working principle is hot filling type. The liquid filled in a high temperature in order to kill the bacterial in the drink and prolong the shelf life of products. It can fill fruit jucie both from fresh fruits or from power or concentrated juice. It can also fill drink tea, such as green tea and red tea and power prepared tea.



Model:	RXGF16-12-6	RXGF18-18-6	RXGF24-24-8	RXGF32-32-10	RXGF40-40-12
capacity (500ml based)	3000BPH	5000BPH	8000BPH	10000BPH	15000BPH
Suitable bottle:	Round bottle or square bottle
PET bottle: (mm)	(Bottle Diameter): φ50-φ110mm    (Height): 150 -340mm
Suitable cap specification	PE screw cap
filling precision:	≤± 5mm
filling pressure:(Mpa)	≤0.4Mpa
Machine power	4.4	5.2	5.2	6.2	6.8
Machine size:(mm)	2250*1650*2250	2600*1965*2250	2980*2200*2250	3880*2200*2250	4000*2650*2500
weight: (kg)	2800	3500	4500	6000	7000



Manufacturing process



Sample Exhibition







Company Information



We specialize in manufacturing beverage production line,
including packaging machinery, beverage processing machinery, filling machine, Water treatment equipment, packing machine, beverage machine, bottling machine, Blowing machinery and so on.











Shipping

If you like



When you send inquiry,please also included the capacity and bottles shape and bottle volume you need to work on the machine, it is easy and accurately for us to recommend right machines.



If you have any special needs,our manufacture also can design the machines according your requirement.
