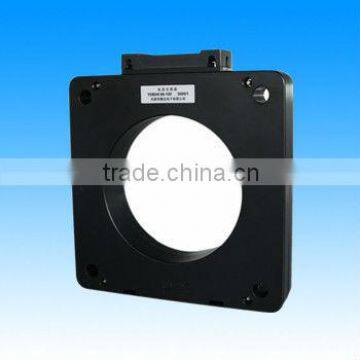

Low Voltage Current Transformer

Name: Low Voltage Current Transformer
Brand: YADA
SKU: 110255359
Availability: InStock

US$ 10 - 60 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

YADA

Model Number:

YDBH0.66-60III

Guangdong Yada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name YADA

Model Number YDBH0.66-60III

Usage Current

Phase Three

Coil Structure Toroidal

Coil Number Autotransformer

Specifications

Low voltage current transformer Vacuum-heat treatment for the iron core achieves excellent performance and stable precision.

Low voltage current transformer

Instruction:

ELECTRIC CHARACTERICS)

NO.	description	measured terminal	measured value	Measured condition	Standard equipment
1	Rated input current		1200A	25°C	CL1800 Instrument of transformer calibrator CL181 Verification Regulation of Instrument Transformer Test Set CL189 / Program control insulation/dielectric strength tester
2	Rated input current	S₁-S₂	1A
3	Current RMS		1200A
4	peak current		2 times the RMS
5	Rated voltage		660V
6	Working frequency		50/60Hz
7	Nonlinearity	S₁-S₂	<0.5%
8	Angular variation		≤10'
9	Rated load		10VA
10	Withstand voltage	P-S	3.0kVac	1mA,1min
11	Insulation resistance	P-S	≥100Mohm	500Vdc Rated voltage
12	Turn ratio	N1:N2=1:1200
13	Class of enamel-insulated wire	CLASS B(130°C)
14	Working temperature	-40°C~65°C
