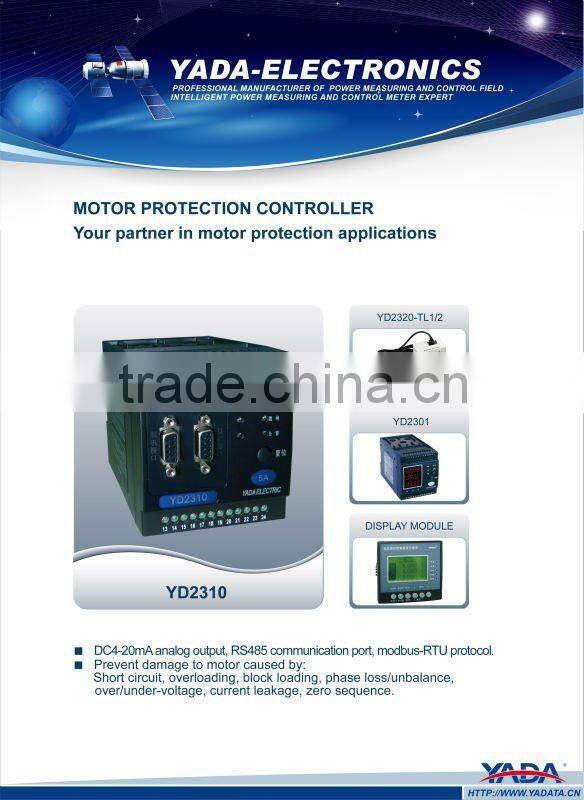

Intelligent Motor Protector

Name: Intelligent Motor Protector
Brand: YADA
SKU: 110255265
Availability: InStock

US$ 150 - 200 MOQ: 2 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

YADA

Model Number:

YD2310

Guangdong Yada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name YADA

Model Number YD2310

Specifications

YD2300 Series Intelligent Motor Protector are practical protectors to prevent damages to motors caused by short circuit etc.

Intelligent Motor Protector

Feature

Model	Structure	Function & Feature
YD2301T	Integrated	² The motor protector replaces the thermal relay protection by adopting Normal Close Contact Output. ² The running of the protected motor will not be interrupted when the protector stopped due to power failure. ² RS485 module is optional.
YD2302T	The display part and the controlling part are separated
YD2301L	Integrated	² Multiple startup modes are available; current protection; ² RS-485 communication; ² One route DC4-20mA output (optional).
YD2302L	The display part and the controlling part are separated
YD2301C	Integrated	² Multiple startup modes are available; current and voltage protection; ² One route DC4-20mA output (optional); ² RS-485 port.
YD2302C	The display part and the controlling part are separated
YD2310	The display part and the controlling part are separated	² Universal protections and measuring; ² 4-20mA(or thermal resistance) input; ² Real-time clock; ² 1~19 harmonics analysis; ² Two routes of RS-485 ports; ² One route of DC4-20mA output(optional)

Model Description

YD23
Model	Rated Current	Controlling Mode	Code	Additional Function	Code
YD2301T	1A	Direct Startup		4-20mA Output	M1
YD2302T	5A	Two-way Startup		Thermal protection	T
YD2301L	10A	Y/ Startup		Leakage Protection	L
YD2302L	50A	Autotransformer Step-down Startup		4-20mA Input	M2
YD2301C	100A	Note: a. Functions with only applicable for YD2310; b. Built-in current transformer is used for rated current not more than 100A; independent specialized current transformer is needed when rated current is over 100A; Output current of CTs the secondary side is 1A.
YD2302C	250A
YD2310	500A
	820A

Specification

Parameters of performance
Rated Working Voltage	AC380V/660V, 50Hz
Rated Working Current	1A0-1A, 5A1A-5A, 10A1A-10A, 50A10A-50A, 100A50A-100ABuilt-in CT; 250A100A-250A, 500A250A-500A, 820A250A-820AIndependent CT
Power supply	AC85V-265V, 50Hz or DC85V-330V
Capacity of Relay Output Contact	AC250V 5A
Accuracy
Current	±1.0%≤120%Ie, ±3.0%120%Ie~800%IeYD2301/YD2302
Current	±0.5%≤120%Ie, ±2.0%120%Ie~800%IeYD2310
Voltage	YD2301C/YD2302C±1.0%, YD2310±0.5%
Frequency	±0.05HzYD2310
Power Factor	±1%YD2310
Power	±1%YD2310
Energy	±1%YD2310
Electric Insulation Resistance
Insulation Resistance	100MΩ/500V
Insulation for Medium Intensity	2kvr.m.s, 50Hz, 1min
Working Conditions
Operating Conditions	Temp: -1055, 20%RH-95%RH
Storage Conditions	Temp: -2570, 20%RH-95%RH
Atmospheric Pressure	80kPa∼110kPaRelative altitude less than 2KM
Electro-magnetic Compatibility
Electrostatic Discharge	Electrostatic Discharge Test GB/T 14598.14idt IEC60255-22-2: Class Contact discharge: 8kV
Radiated, Radio- frequency, Electromagnetic field Immunity	Radiated, Radio- frequency, Electromagnetic field Immunity Test GB/T 14598.10idt IEC60255-22-4: Class 40db μV/m
Electrical Fast Transient Burst Immunity	Electrical Fast Transient Burst Immunity Test GB/T 14598.10idt IEC60255-22-4: Class Communication Port: 2 kV, other ports: 4kV
Surge (Impulse) Voltage	Standard Lightening Wave Impulse Voltage Test GB/T 14598.3-1993eqv IEC60255-5: Peak value: 4kVheavy currentor 1kVweak current
