Specifications
5 gallon water washing filling capping machine production line1packaging machine
2.high capacity
3.factory price

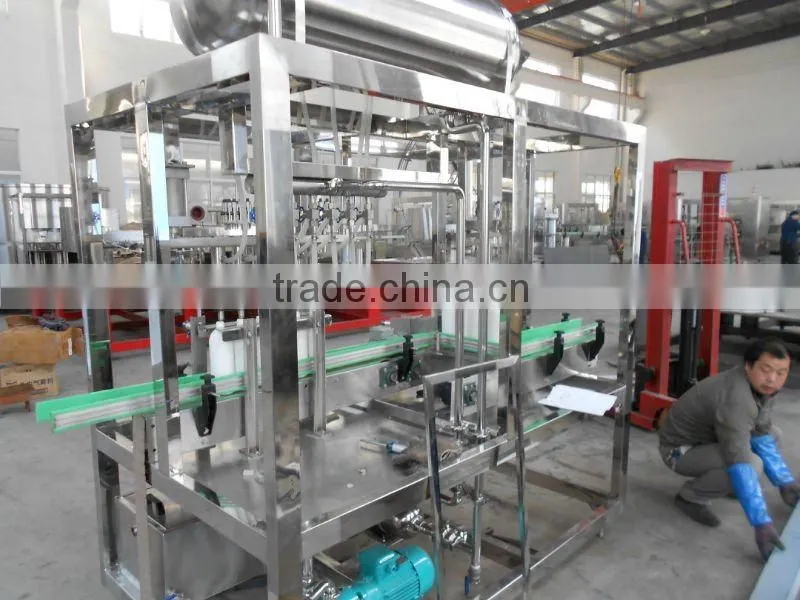

5 gallon water washing filling capping machine production line
Description:
5Gallon Filling Machine
5Gallon Beverage Machine ,water filling machine
5Gallon Filling Machine
This filling line specially produces 5 gallons filling dinking water, whose types (b/h) are: 100 type, 200 type, 300 type, 450 type, 600 type, 900 type, 1200 type and 2000 type.
1. It integrates bottle washing, filling and sealer into unit, Multiple injections of washing and sterilizing and bleaching are used in bottle.
2. The sealer can seal bottle caps qutomatically.
3. The 5 Gallon filling machine equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.5Gallon Filling Machine

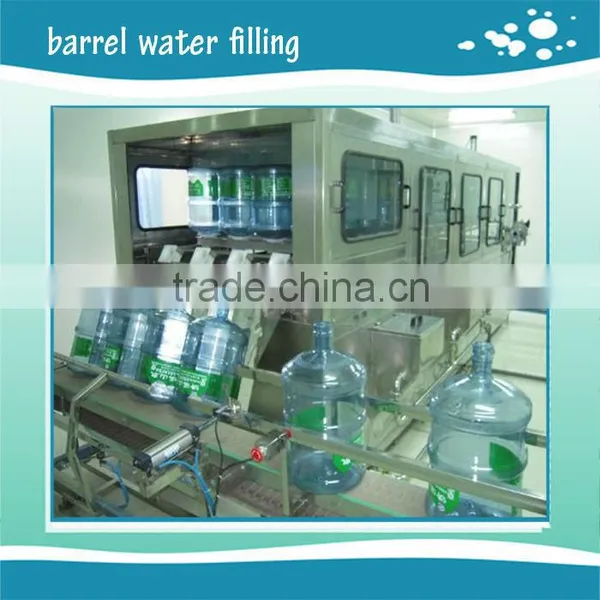

images show:
Technique parameter:
| Main Technical parameters | |||||||
| Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
| Filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
| volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size(mm) | φ 270× 490 | φ 270× 490 | φ 270× 490 | φ 270× 490 | φ 270× 490 | φ 270× 490 | φ 270× 490 |
| Capacity(b/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
| Gas pressure(mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption(m 3 /min) | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
| Motor power(kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
| Rated voltage(V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Outline dimension(mm) | 3790× 650 × 1550 |
3550× 800 × 1800 2800× 1100 × 1800 |
3550× 1200 × 1800 3800× 1100 × 1800 |
3650× 1500 × 1800 3800× 1100 × 1800 |
2200× 1860 × 2700 |
2560× 2350 × 2750 |
3100× 2800 × 2750 |
| Weight(kg) | 800 | 2800 | 4000 | 5500 | 7500 | 9500 | 11800 |
Certificates:
Factory and workshop:
working:
Packing:
Keyuan would like to move forward together with you and will spare no effort.
Any question about this machine ,contact us please ,sincere service for you .
welcome to KEYUAN!
