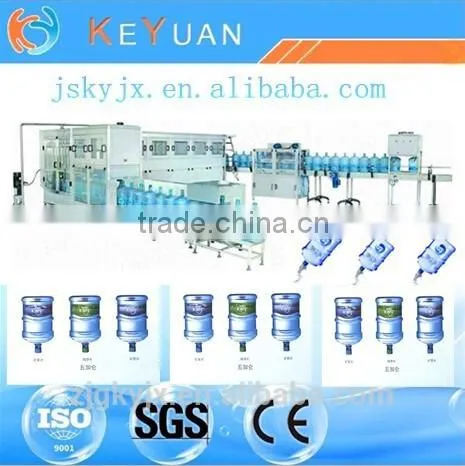

QGF Filling Machine
Production Introduction:
1. Model QGF series Barreled filling machine is combined with washer, filler and sealer machine on one unit, controlled by PLC
2. It is an ideal equipment to produce mineral water, distilled water, pure water production. The completed machine is full automatic, made of 304S.S.
3. You can match with de-capper, leakgae inspection, cap loading and barrel loading device, shrinking film machine, coding system to be a complete full-automatic water barrel filling production line.
4. All the components are from international famous brands like Mitsubishi, Airtac. etc.
5. Capacity range: 150bph , 300bph, 450bph, 600bph, 900bph, 1500bph,1800bph,
6. Accept customized requirements
Technical Parameters:
| Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-1200 | QGF-1500 | QGF-1800 |
| Filling heads | 1 | 2 | 3 | 4 | 8 | 10 | 12 |
| (L)Volume | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| (mm)barrel size | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| (b/n)Capacity | 150 | 300 | 450 | 600 | 1200 | 1500 | 1800 |
| (Mpa)Gas pressure | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
|
(m3min) Gas consumption |
0.37 | 0.67 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| (kw)Moto power | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| (V)Rated Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| (kg)Weight | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
Production Detail:

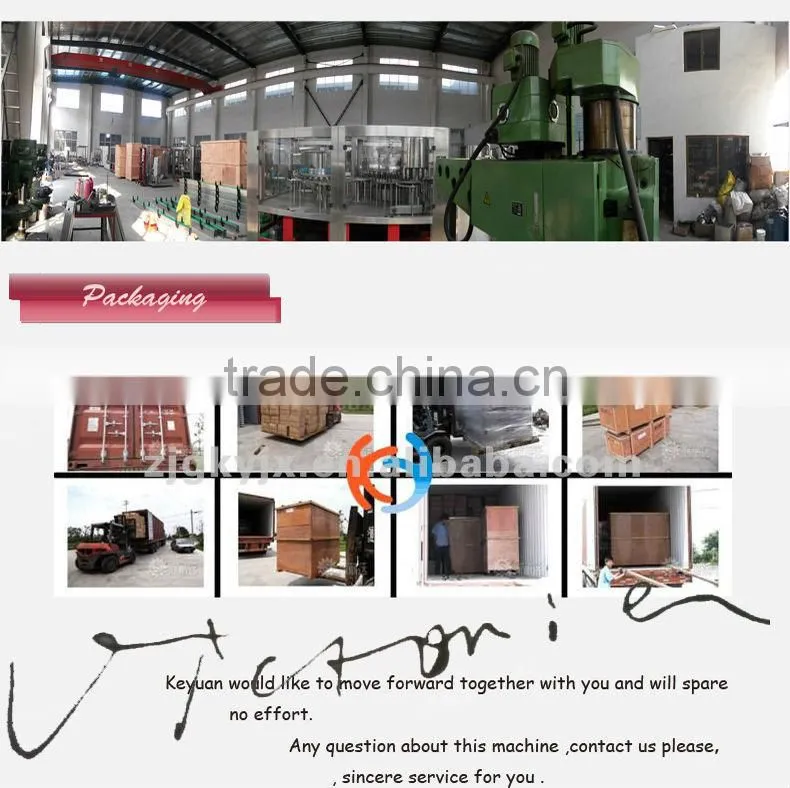

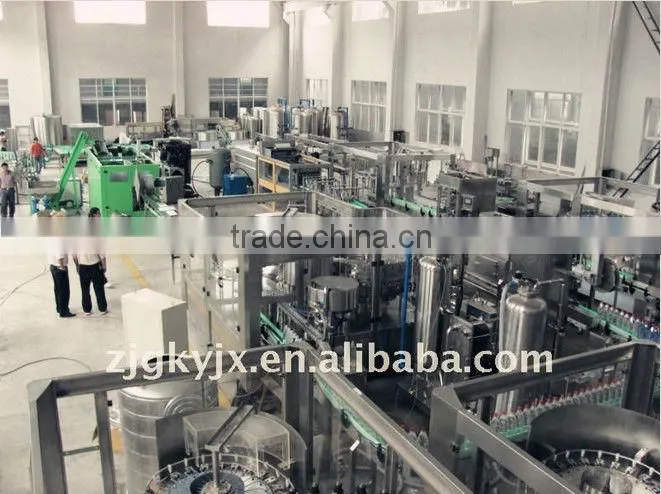

Workshop:
Certificate:
