Specifications
1.one year warranty2.wooden/plastic
3.stainless steel 304
4.capacity large
5.storn water easy

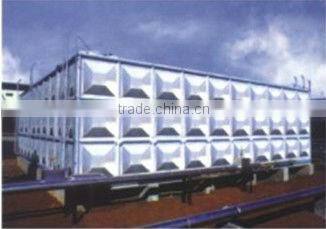

Large capacity of stainless steel storage tank
Description:
1.Source licensing square combined stainless steel water tank design of the relevant parameters, is on the basis of current water supply and drainage design of building" norms" of the relevant provisions of the.
2.This product uses the SUS304 SUS444 SUS316L stainless steel, stamping forming. Has the advantages of high strength, light weight, low cost, environmental protection and sanitation etc.

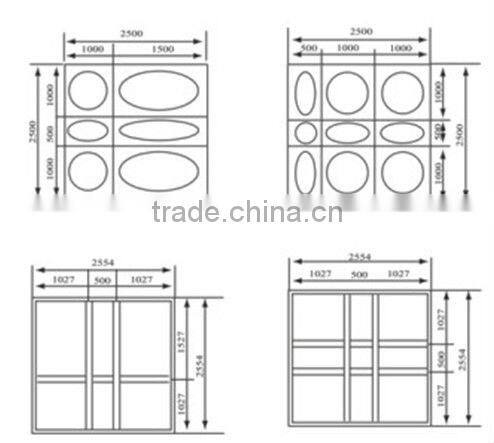

3.Combined type water tank is composed of three main standard module assembly; by 1000 * 1000, 1000 * 500, 500 * 500 standard block, according to the different structure design parameters, using different thickness of the module, in the factory or spot welding assembly, by advanced micro molecular leak test technology check sealing performance. After passing the factory or acceptance of water.
4.This product is applicable to:
a:Building water storage tank, regulating water tank, fire water tank, heating system, condensate tank expansion to, as well as the construction, geological survey, national defense projects such as the temporary reservoir tank.
b:Chemical industry of liquid storage tank, oil tank, boiler industry, add water, water tank insulation.
c:Water treatment industry, raw water tank, clear water tank, the environmental protection industry sewage treatment tank
5.This product has 17 kinds of standard specifications for customer choice, and according to customer requirements, design and production 1-1000 cubic square Water tank
6.The water inlet of the water tank, a water outlet, an overflow port, discharge orifice and into the hole, its size and location by design and set.
7.The product is used as a hot water tank or the expansion water tank, the seal must be heat seal
8.Tank insulation, according to customer requirements, the use of different materials and technology
9.A float valve and a water level controller attachment, by the client to installation and commissioning, the company is not responsible for installation and commissioning of responsibility
10.The company is the professional manufacturers, customers can introduce installation company, the company to undertake the installation engineering.
images show:
Technique parameter:
| Model | Volume | Surface area | Plate thickness | Specifications |
| ST1.0FB |
1m3 | 6m² | 1.5m/m | 1000*1000*1000 |
| ST2.0FB | 2m3 | 8m² | 1.5m/m | 2000*1000*1000 |
| ST4.0FB | 4m3 | 16m² | 1.5m/m | 2000*2000*1000 |
| ST5.0FB | 5m3 | 19m² | 1.5m/m | 2000*2500*1000 |
| ST6.0FB | 6m3 | 22m² | 1.5m/m | 3000*2000*1000 |
| ST8.0FB | 8m3 | 24m² | 1.5m/m | 2000*2000*2000 |
| ST10.0FB | 10m3 | 28m² | 1.5m/m | 2000*2500*2000 |
| ST12.0FB | 12m3 | 32m² | 1.5m/m | 3000*2000*2000 |
| ST15.0FB | 15m3 | 37m² | 1.5-2m/m | 3000*2500*2000 |
| ST20.0FB | 20m3 | 46m² | 1.5-2m/m | 4000*2500*2000 |
| ST25.0FB | 25m3 | 55m² | 1.5-2m/m | 5000*2500*2000 |
| ST30.0FB | 30m3 | 62m² | 1.5-2m/m | 5000*3000*2000 |
| ST40.0FB | 40m3 | 76m² | 1.5-2m/m | 5000*4000*2000 |
| ST50.0FB | 50m3 | 85m² | 1.5-2m/m | 5000*4000*2500 |
| ST60.0FB | 60m3 | 94m² | 1.5-2m/m | 5000*6000*2000 |
| ST80.0FB | 80m3 | 128m² | 2m/m | 8000*4000*2500 |
| ST100.0FB | 100m3 | 160m² | 2m/m-3m/m | 10000*5000*2000 |
Certificates:
Factory and workshop:
working:
Packing:
Keyuan would like to move forward together with you and will spare no effort.
Any question about this machine ,contact us please ,sincere service for you .
welcome to KEYUAN!
