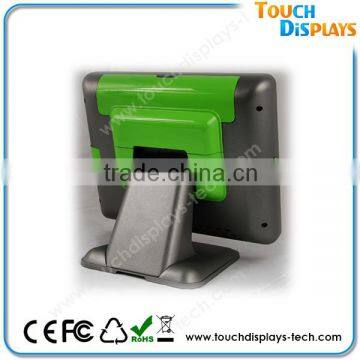

1515E 15" LCD Desktop Flat _Touch PC Monitor
restaurant pos system
Benefits:
- Fully-integrated, easy-to-use, plug-and-play multi-touch desktop device
- Multi-touch 10 points (support Windows 7/8/Linux/XP,Andriod operating system)
- Responds to a light touch in activating response
- Easy-to-clean surface without bezels
- Top I/O design is for hide all cable
Applications
1.Countertop kiosk information systems
2.Gaming and amusement
3.Point-of-sale(POS)
4.Point-of-service
Optional Accessories
Stand/Customer Second Display/VFD/Cash Drawer/Thermal Printer 58mm or 80mm
Magnetic Card Reader MSR/ iButton/ Handheld Scanner
Specifications
Model |
1515E-IDT |
|
Case/Bezel Color |
Black/Silvery/white(Cistomized) |
|
Display Size |
15.0" |
|
Style |
True Flat |
|
Touch panel |
Projected Capacitive touch screen (SAW touch screen optional) |
|
Touch response time |
8ms (PCT typical) and 10ms(SAW typical) |
|
Touchcomputors Dimensions |
372x 212 x 318 mm(with stand);372x 56 x 318 mm(without stand)
|
|
LCD Type |
TFT LCD(LED backlight) |
|
Useful Screen Area |
304 mm x 228 mm |
|
Aspect ratio |
4:3 |
|
Optimal (native) Resolution |
1024 x 768 |
|
LCD panel Pixel pitch |
0.297 x 0.297 mm
|
|
LCD panel Colors |
16.7 million |
|
LCD panel Brightness |
400 cd/m2 (high brightness customized upto 1000 cd/m2) |
|
LCD panel Response Time |
30 ms |
|
|
Viewing Angle (typical, from center) |
Horizontal (left/right)
|
±80° or 160° total |
Vertical (up/down) |
±80° or 160° total |
|
Contrast Ratio |
800:1 |
|
output Video signal connector |
Mini D-Sub 15-Pin VGA type and HDMI type |
|
Input interface |
usb 2.0*4(usb 3.0*2 optional)PCI-E(3G SIM card,wifi and bluetooth optional) |
|
Earphone*1Mic*1Com*3RJ45*1 | ||
Extend interface |
USB2.0*4Com*21*PLTHdd&SSD&CF Card external interface |
|
Power Supply Type |
Monitor input: +12VDC ±5%,4.0 A; DC Jack (2.5) |
|
AC to DC power brick input: 100-240 VAC, 50/60 Hz | ||
|
Power Comsuption: 48W max
| ||
|
ECM (Embed Computer Modul) |
ECM1: Intel® processor D2550 (Dual Core 1.86GHz,Fanless); ECM2: Intel® processor D2700 (Dual Core 2.13GHz,Fanless); ECM3: Intel® processor P8600 (Dual Core 2.4GHz,Fan-cool); ECM4: Intel® processor i3 2310M(Dual Core 2.1GHz, Fan-cool); ECM5: Intel® processor i5 2410M (Dual Core 2.3GHz/2.9GHz Turbo, Fan-cool); ECM6: Intel® processor i7 2620M (Dual Core 2.7GHz/3.4GHz Turbo, Fan-cool); HDD:320G(500G-1TB optional);SDD:32G(upto 128G optional);CF Card 32G(upto 128G Optional); Memory: DDR3 2G(upto 8G); Operation System:Win7win8XpwinCEVistaLinux ECM7: Android dual core 1.5G, Rom 1G,Flash 4G ECM8: Android quad-core 1.2G,Rom 1G, Flash 4G Operation System: 4.2.2 |
|
Temperature |
Operating: 0°C to 40°C ;Storage -20°C to 60°C |
|
Humidity (non condensing) |
Operating: 20%-80%; Storage: 10%-90% |
|
Shipping Carton Dimensions |
556 x 206 x 456 mm(with stand);470 x 210 x 420 mm(without stand) |
|
Weight (approx.) |
Actual: 6.8 kg ;Shipping: 8.2 kg |
|
Warranty Monitor |
3 years(Except for LCD panel 1 year) |
|
Backlight lamp life: typical 50,000 hours to half brightness | ||
Agency Approvals |
CE/FCC Rohs |
|
Mounting Options |
75 mm and 100mm VESA mount |
|
1.Optional:ODM, OEM, welcome
2.Skype: touchdisplays.sales2
3.Touch screen technology: Projected Capacitive TouchScreen,SAW TouchScreen, Resistive TouchScreen,Infrared TouchScreen
4.All of our products have 3 years(Except for LCD panel 1 year) warranty .
5.Track the order until you get the goods.
6.All our products are inspected strictly by our QC department before delivery.
