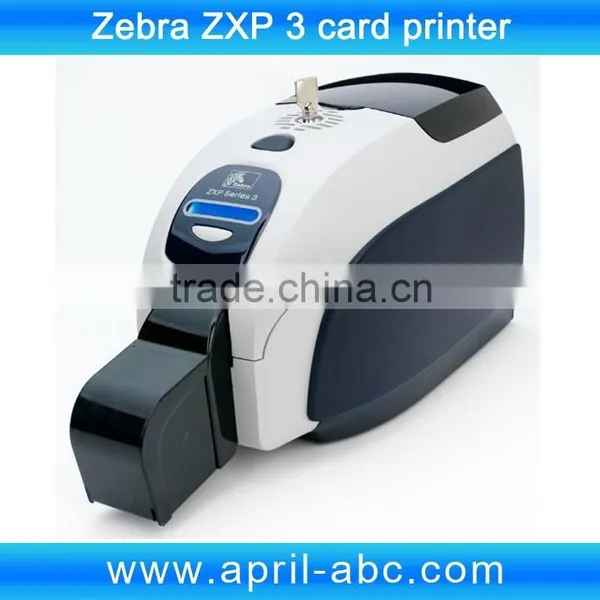

Zebra ZXP Series 3 card printer
Printing Specifications |
Dye-sublimation thermal transfer direct to card |
Full color or monochrome printing | |
Single- and dual-sided printing | |
700 cph monochrome single-sided | |
180 cph single-sided YMCKO | |
140 cph dual-sided YMCKOK | |
Edge-to-edge printing on standard CR-80 media | |
Standard features |
Auto calibration of ribbon |
USB connectivity | |
Microsoft Certified Windows drivers | |
Energy Star Certified | |
Print Touch NFC tag for online Printer documentation access | |
100 card covered feeder (30 mil) | |
45 card capacity output hopper (30 mil) | |
16-character LCD operator control display | |
300 dpi (11.8 dots/mm) print resolution | |
Two-year warranty on printer | |
Two-year (unlimited passes) original printhead | |
One-year hot swap (U.S.only) | |
Secure lock slot | |
Optional Characteristics |
Operating temperature: 60° F (15° C) to 86° F (30° C) |
Storage temperatures: 23° F (-5° C) to 158° F (70° C) | |
Operating humidity: 20% to 65% non-condensing | |
Storage humidity: 20% to 70% non-condensing | |
Media Storage: | |
Temperature: 41F to 77F (5C to 30C) | |
Humidity: 35% to 65% non-condensing | |
Do not store in directt sunlight | |
Electrical | |
Auto-switching single-phase AC power | |
Operating range: 90-132VAC and 190-264VAC RMS | |
Frequency range : 47-63 Hz. | |
Power requirement is 100W maximum continuous and 607W peak (for 450 microsec) output power. | |
FCC Class A | |
Optional Features |
*Built-in 10/100 Ethernet connectivity |
*CardSense™ single-card feed mode | |
ZebraCare™ extended product warranty programs | |
*Lockable enclosure with obscure output bin | |
Communition Interfaces |
USB V2.0 (cable included) - standard |
*Built-in 10/100 Ethernet - optional | |
|
Magnetic stripe encoder – ISO 7811 (new and re-encoded, tracks 1,2, and 3, high and low coercivity, stripe down, 30 mil card only |
Smart card contact station ISO 7816 | |
Combined MIFARE® ISO 14443 (13.56 MHz) and ISO 7816 Contact Encoder Specifications – PC/SC and EMV level 1 certified (50 card capacity [30 mil] external output hopper) | |
Card Compatibility |
Card Compatibility |
NOTE: For optimum print quality and printer performance, use of Zebra genuine supplies is recommended. | |
Card Thickness: 10-40 mil | |
Card Size: CR-80, ISO 7810 format, Type ID-1, 2.12" (54 mm) x 3.38"(86 mm) | |
Card Material: PVC and PVC composite | |
Smart Card Contact – ISO 7816-1,2,3,4 | |
Smart Card Contactless MIFARE® ISO 14443A/B | |
Spot Color or monochrome print only on < 20 mil card thickness | |
Supplies Specifications |
NOTE: |
