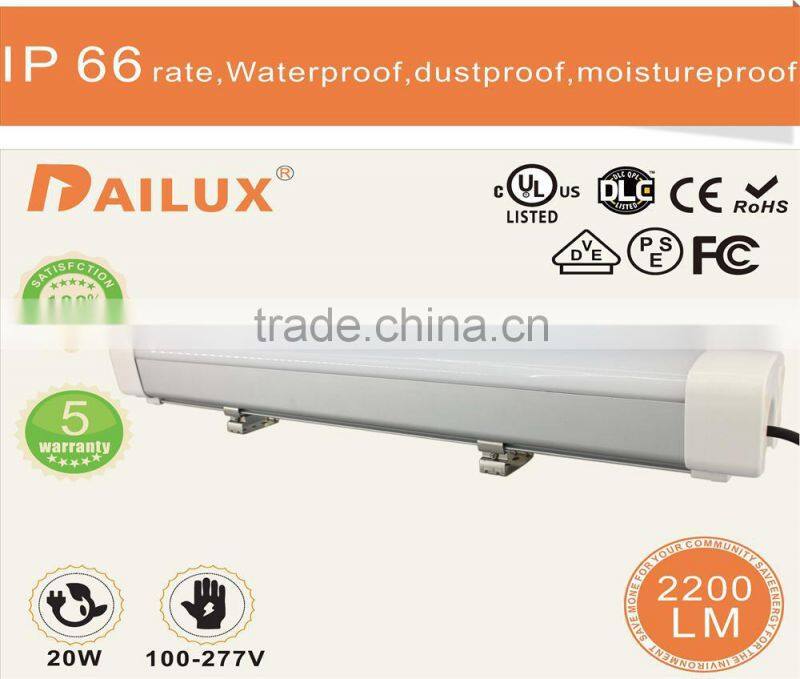

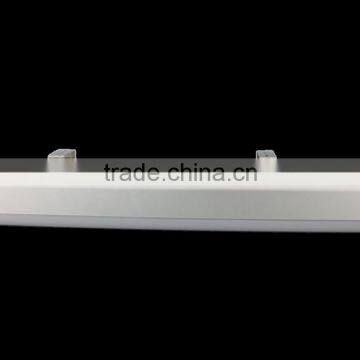

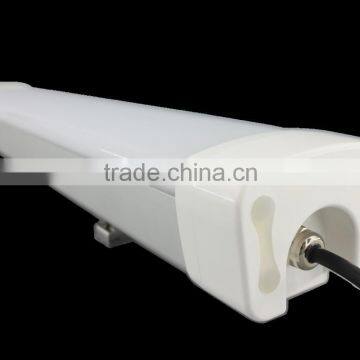

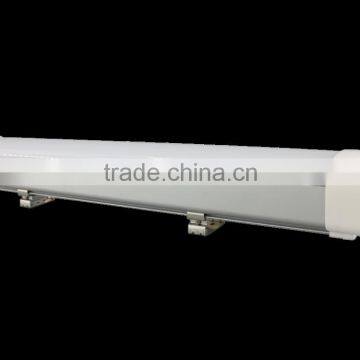

20w IP66 led tri-proof light with 5years warranty
Product Description
| Input voltage | AC100-277VAC |
| Rated wattage | 20W |
| Claimed equiv. conventional lamp power | 100W |
| Operating frequency | 50/60 Hz |
| Power factor λ | 0.9 |
| Rated luminous flux | 2200 lm |
| Color temperature | 2700-3500K,4000- 4500K ,5000-5500K,6000-6500K |
| Color rendering index Ra | 70 |
| Luminaire Efficiency | >85% |
| LED Luminous Efficiency | >110LM/W |
| Beam Spreads | 110° |
| Starting time | < 0.5 s |
| Dimming | NO |
| Operating Temperature | -40°C~50°C |
| Lifetime | 50,000 hours |
| Limited Warranty | 5 years |

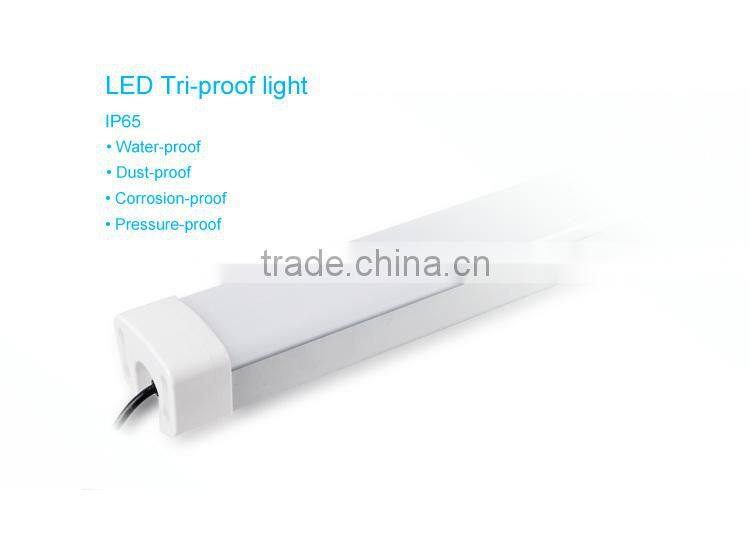

Product Features
• IP65 protection class,waterproof,dustproof,moistureproof.
• Extremely long life.
• No UV and near-IR radiation in the light beam.

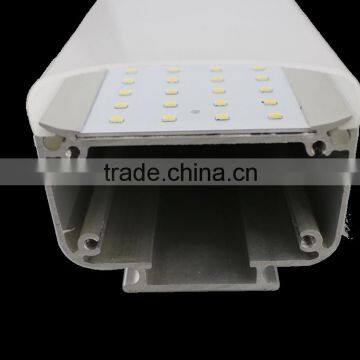

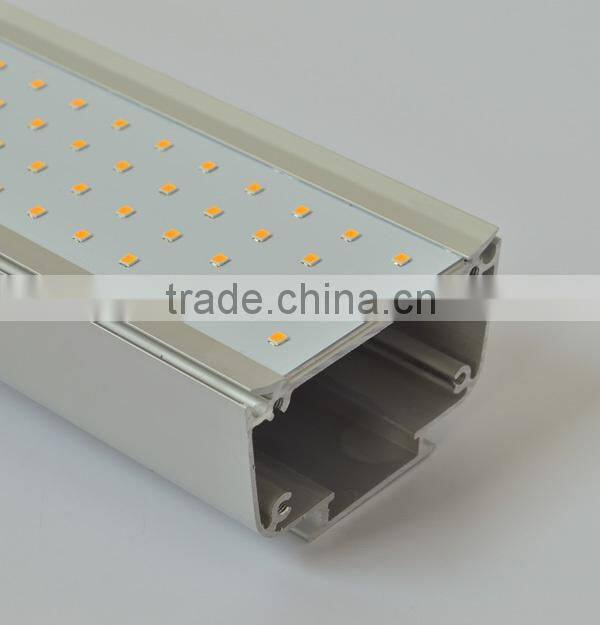

• Overall profile radiator professional thermal management.
• High light efficiency.
• Better lighting uniformity by adopting high - performance.
• Alternative to line-voltage halogen lamps.
• Constant current driver ensure the stability, no flashing.
• Conform to ROHS,no any harmful substance.
• The built-in power supply, installation simple and beautiful.
• Ideal for economical spotlighting.
Areas application:
• Garage
• Factory
• Metro
• Restaurants
• Warehouse
• Department stores
• The ship waterproof lighting

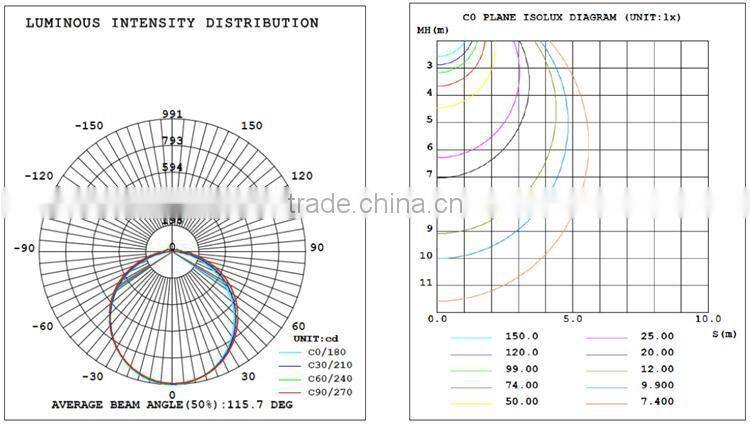

Light Distribution diagram
Dimensions & weight
More suitable products
| LED Tri-proof light | LP-S-20-30W | LP-S-40W | LP-S-50-60W | LP-S-80W |
| Size(mm) | 600*89*74mm | 900*89*74mm | 1200*89*74mm | 1500*89*74mm |
| Lumen(lm) | 2200/3300±5%lm | 4400±5%lm | 5500/6600±5%lm | 8800±5%lm |
| Efficiency(lm/w) | 110lm/w | |||
| LED chips | SMD2835 | |||
| Input voltage(VAC) | AC100-277V | |||
| CRI(Ra) | >80 | |||
| Beam Angle | 110° | |||
|
Correlated Color Temperature |
WW:2700-3500K NW:4000-4500K PW:5000-5500K CW:6000-6500K |
|||

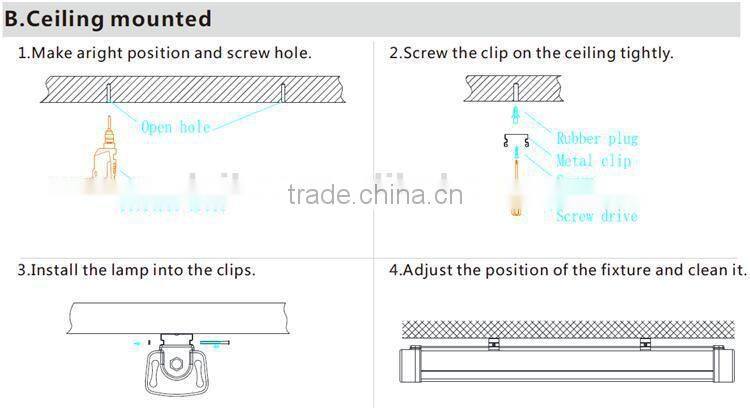

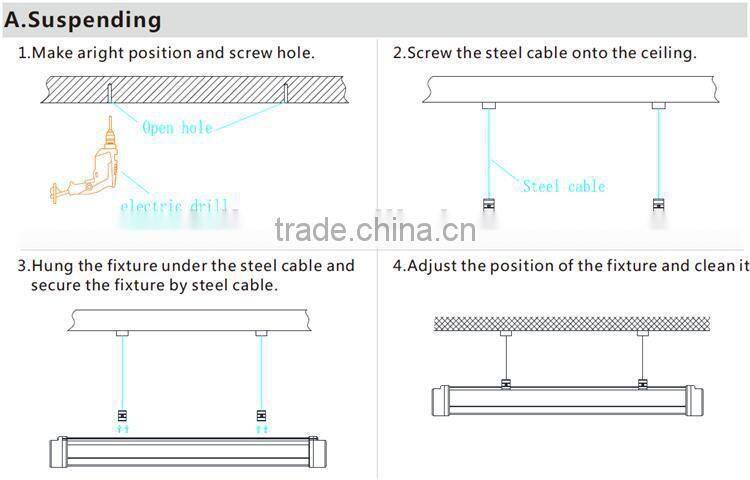

Installation
Ordering Information
Example: TP-S-20W-WW-B1
| Product | Series | Watt | CCT | Voltage | Beam Spread | CRI | Packaging Option |
|
TP Tri-Proof Lights |
S Single |
20W 30W 40W 50W 60W 80W |
WW 2700-3500K NW 4000-4500K PW 5000-5500K CW 6000-6500K |
Blank 100-277VAC |
Blank 110° Wide Flood |
Blank 82CRI |
B1 Single Pack |
Payment Terms: T/T,paypal,western uinon,moneygram 30% deposits before production, 70% balance to be paid before shipment.
Packing ,shipping and delivery date:

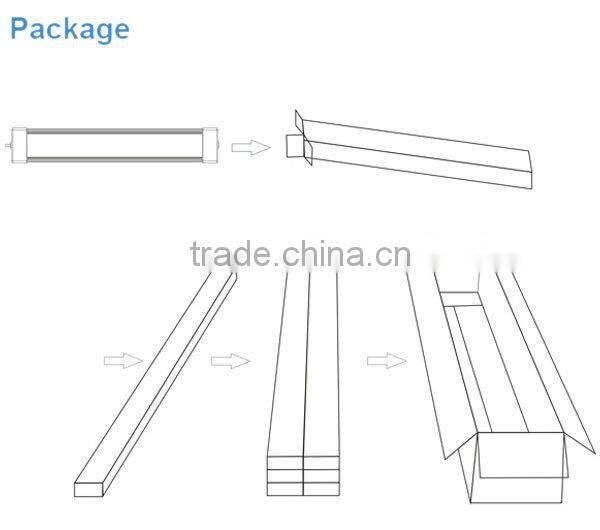

Packing Details:
First,the lamp fixed with foam models;Second, Kraft carton sealing;
At last,wooden crate could make sure safety enough for speical parts.
Shippment Details:
1.Delivery date:with 3~5days for samples,and 7~10days for large quantity after receive payment.
2.Shipping port: Shenzhen(Yantian),Hongkong
Delivery data:
1.Your inquiry for above 20w led tri-proof light solutons will be replied during 12 hours
2.Service time:7days x 24 hours
3.Advanced production technology,Experienced production workers,Standard package,quick delivery.
4.A department will do service with your product after-sale.
FAQ
•How do you ensure the quality of High Quality Led Tri-proof Light 0.6m, 1.2m, 1.5m wtih 5 years warranty solutions?
We are strictly focus on quality control. All goods are 100% inspected and made aging time at 72 hours before shipping.
•How much will the shipping cost?
We are committed to keeping shipping costs as low as possible. The shipping charges are calculated based on the ordered products and order quantity.
•Do you offer free sample of High Quality Led Tri-proof Light 0.6m, 1.2m, 1.5m wtih 5 years warranty solutions?
Samples are not free, but we will return samples fee when you placing bulk quantity order at next time.
•How about the warranty?
We are offering 5 years warranty for products,the date calculated from delivery.
We encourage you to order samples before placing large orders to ensure the products meet your requirements. Take accurate measurements for all aspects of any light retrofit.
Our Client Service
DAILUX Energy-saving Technology provides clients with a highly accessible, responsive, and efficient client experience. Aided by our proprietary suite of sales tools, DAILUX Energy-saving Technology empowers clients to make informed decisions, in real-time. From initial energy audit to final product delivery, DAILUX Energy-saving Technology delivers the most efficient experience in the industry.
Do you need help in selecting the right products to reduce your electrical consumption?
Call us and tell us about your project, your goals.You can reach us at
