10kw Tent Architectural Umbrellas Membrane Structures Welding Machine
- Shenzhen
- T/T
You May Like
-
Rotary HF Kitchen Corkscrew Welding Machine
-
High Frequency Double Side Clamshell Welding Machine
-
10kw H.F Architectural Umbrellas Membrane Structure Welder
-
HF Iphone Cover Welding&cutting Machine
-
Plastics Blister Packaging HF High Quality Simultaneous Machine
-
8kw/15kw HF High Quality Plastic Sealing Machine for Food
Product Details
| Place of Origin | Guangdong, China | Brand Name | Sinopwr | |
| Model Number | ZG-10KW-X | Voltage | 50/60HZ AC380V 3P | |
| Power | 10KW | Frequency | 27.12MHz | |
| Welding Area | 100*800mm | Usage | tarpaulin welding | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
10kw tent architectural umbrellas membrane structures welding machine

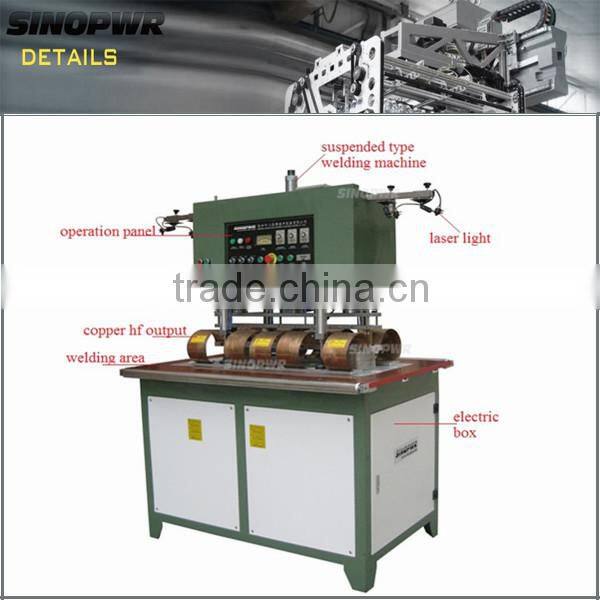

1.Machine with cross line laser positioning light, convenient para splicing;
2.on both sides of the work plate equipped with roller, to avoid scratch when material feed location;
3. NL - 5557 fire tube protection device, make the mould and products to minimize the damage degree;
4.Machine die can be hung on the roof beam, infinite width convenient feeding large products for splicing;.
5.European standard high-frequency oscillatory square box, more reliable and Stable in output.
6. Laser scan system, precise positioning welding.
It is especially designed for procession on welding tarpaulin,sunshade,painting canvas,film curtain, Advertising ,spark protection cloth ,tent of truck, canvas of agricultural,canopy,canvas/digesters/ fabric, computer advertising / printing/ Film cloth, the membrane structure, tent Canvas shade etc
Specifications:
| Model | ZG-10KW-X | ZG-12KW-X | ZG-15KW-X |
| Power | 10KW | 12KW | 15KW |
| Input power | 18KVA | 20KVA | 25KVA |
| Voltage | 50/60HZ AC380V 3P | ||
| Frequency | 27.12MHz | ||
| Rectifier | silicon diode | ||
| Oscillation tube | E3069 | 3130RB | 8T85RB |
| Max pressure | 600kg | 750kg | 1,000kg |
| Operation mode | pneumatic | ||
| Deep of throat | 750mm | ||
| Max distance of electrodes | 150mm | ||
| The press stoke | 150mm | ||
| The size of upper electrode | 100*800mm | 100*900mm | 100*1000mm |
| The size of lower electrode | 450*950mm | 450*1050mm | 450*1150mm |
| The range of temperature | 30~200°C adjustable | ||
| Welding time | 0---10sdjustable | ||
| Productivity | < 360times/hour | ||
FAQ:
1,How to install the machine?
2,How do I use the machine ?
3,How to set operating Mold and machine maintance?
4,Machine configuration
5,Troublesolving
