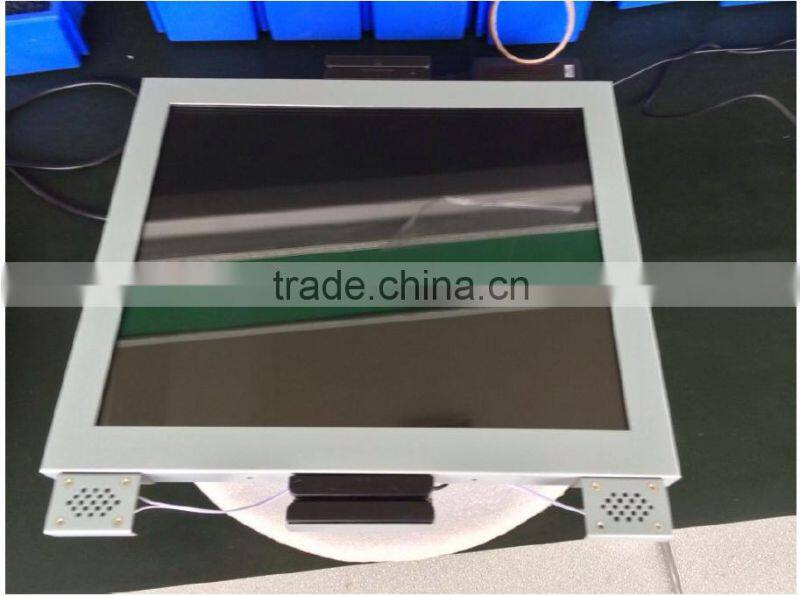

Multilingual on Screen Display Touch Screen Monitor Open Frame Touch All in One pc Computer

Case/Bezel Color

Black/Silvery/white(Customized)

Display Size

17"

LCD Type

TFT LCD(LED backlight)

Aspect ratio

5 : 4

Useful Screen Area

337.920(H) × 270.336(V) mm

Touch panel

Projected Capacitive touch screen

Touch response time

5ms (PCAP typical)

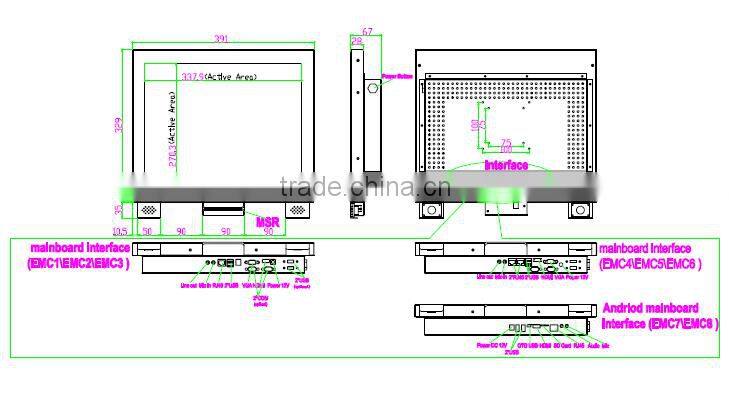

Touch Monitor Dimensions

391 x 329 x 67 mm

Optimal (native) Resolution

1280 x 1024

Extend interface

USB2.0*4Com*21*PLTHDD&SSD&CF Card external interface

output Video signal connector

Mini D-Sub 15-Pin VGA type and HDMI type

Input interface

USB 2.0*4(USB 3.0*2 optional)PCI-E(3G SIM card, WIFI and Bluetooth optional)

Earphone*1Mic*1Com*3RJ45*1

LCD panel Pixel pitch

0.264 x 0.264 mm

LCD panel Colors

16.7 million

LCD panel Brightness

250 cd/m2 (high brightness customized upto 1000 cd/m2)

LCD panel Response Time

5ms

Viewing Angle

(typical, from center)

Horizontal (left/right)

±85° or 170° total

Vertical (up/down)

  ±80° or 160° total

Contrast Ratio

1000:1

Power Supply Type

Monitor input: +12VDC ±5%,4.0-6.0 A optional; DC Jack (2.5¢)

AC to DC power brick input: 100-240 VAC, 50/60 Hz

Power Consumption: 48W-72W optional

ECM

(Embed Computer Modul)

ECM1:  Intel® processor D2550 (Dual Core 1.86GHz,Fanless);

ECM2:  Intel® processor D2700 (Dual Core 2.13GHz,Fanless);

ECM3:   Intel® processor P7550 (Dual Core 2.26GHz,Fan-cool);

ECM4:  Intel® processor i3 2310M(Dual Core 2.1GHz, Fan-cool);

ECM5:  Intel® processor i5 2415M (Dual Core 2.3GHz/2.9GHz Turbo, Fan-cool);

ECM6: Intel® processor i7 2620M (Dual Core 2.7GHz/3.4GHz Turbo, Fan-cool);

HDD: 500G(1TB optional);SDD:32G(up to 128G optional);

CF Card 32G(up to 128G Optional); Memory: DDR3 2G(up to 8G);

Operation System:  Win7Pos ready7Win8.1XPWinCEVistaLinux

ECM7:   Android dual core 1.5G, Rom 1G,Flash 4G

ECM8:   Android quad-core 1.2G,Rom 1G, Flash 4G

Operation System: 4.2.2

Memory

DDR3 2G(up to 8G optional)

Temperature

Operating: 0°C to 40°C ;Storage -20°C to 60°C

Humidity (non condensing)

Operating: 20%-80%; Storage: 10%-90%

Shipping Carton Dimensions

420 x 210 x 470 mm

Weight (approx.)

Actual: 6.8 kg ;Shipping: 8.2 kg

Warranty Monitor

3 years(Except for LCD panel 1 year)

Backlight lamp life: typical 30,000 hours to half brightness

Agency Approvals

CE/FCC RoHS(UL GS optional)

Mounting Options

75 mm and 100mm VESA mount
