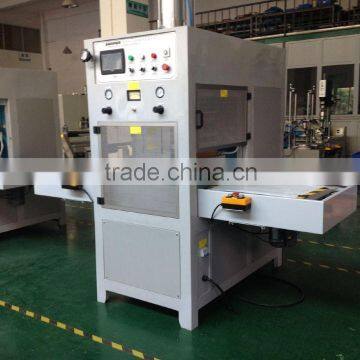

12KW HF blister earphone high frequency double heads welding machine
HF Welder is designed specifically for production of small and large format tensile structures, membranes, tarpaulin, tents, oil booms, truck covers, swimming pool liners & covers, airline hangars, large billboards, fast doors, side curtains, etc. This basic design machine can be fitted with special impulse electrode for welding nonHF weldable fabrics made of PE and PP, as well as FlexEL ‘soft’ multilayer welding electrode and curved HF electrodes for sealing round window profiles made of clear PVC and any other shapes requiring precision welding.
This series HF welders is equipped with special deep and wide trough behind the electrode for material storage and handling. Machine has smooth glide wheels for easy movement inaround welded fabric, or relocation to a desired place in manufacturing hall.
Specifications:
| Model | ZG-8KWT | ZG-10KWT | ZG-12KWT | ZG-15KWT |
| Power | 8000W | 10000W | 12000W | 15000W |
| Input power | 15KVA | 18KVA | 20KVA | 25KVA |
| Voltage | 3Phase 220v/380V 50/60HZ or customized | |||
| Frequency | 27.12MHz | |||
| Rectifier | silicon diode | |||
| Oscillation tube | 7T69RB | E3069RB | E3130RB | 8T85RB |
| Max pressure | 10000kg | 15000kg | 20000kg | 30000kg |
| Operation mode | pneumatic | hydraulic | ||
| Max distance of electrodes | 200mm | |||
| The press stroke | 100mm | |||
| The size of upper electrode | 350*450mm | 400*600mm | 500*700mm | 700*800mm |
| The size of lower electrode | 350*450mm | 400*600mm | 500*700mm | 700*800mm |
| The range of temperature | 30~200 °C adjustable | |||
| Welding time | 0---10sdjustable | |||
| Productivity | < 360times/hour | |||
FAQ:
1,How to install the machine?
2,How do I use the machine ?
3,How to set operating Mold and machine maintance?
4,Machine configuration
5,Troublesolving
