Chengdu Zenghong Sci-Tech Co., Ltd.: Chengdu, Sichuan, China; Main products: POS terminal, touch moitor, Advertising machine, POS all in one, kiosk monitor

Home > Products > Open frame touch all in one PC > 1000:1 Contrast Ratio 19" All in One Open Frame Touchscreen Computer

1000:1 Contrast Ratio 19" All in One Open Frame Touchscreen Computer

FOB Price

US$ 201 - 620 / Unit

1 Unit(Min. Order)

Port China port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	All-In-One
Screen Size	Other, 19", 19"	Processor Brand	Intel
Memory Capacity	2GB	Hard Drive Capacity	500GB
Graphics Card Type	Integrated Card	Display Type	LCD
Widescreen	No	Processor Main Frequency	1.86GHz
Brand Name	Touchdisplays	Model Number	1931E
Place of Origin	Sichuan, China

Product Description

19" All-In-One Open Frame Touch Computers

Product Description

Features

1. Small footprint , retail-hardended , flexible touchcomputers

2. 1000:1 contrast ratio, and 250-nit brightness (LCD panel)
3. Long lasting product cycle-enclosure

4. Multilingual on-screen display (OSD)

5. High quality panel with 170° x 160° viewing angle

6. Optional front mount and rack mount bezels
7. optional Front bezel be sealed IP64

8. Fully RoHS compliant
9. Mounting options including rear-mount and VESA mount

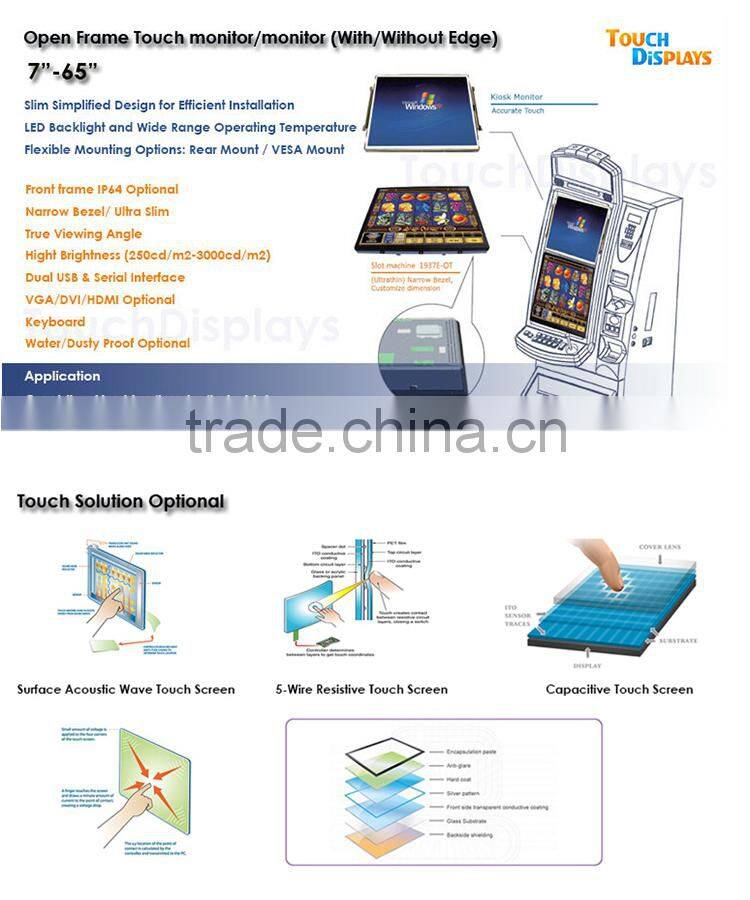

10. Resistive and Surface Acoustic Wave Single-touch Technology

Applications

1. Countertop kiosk information systems 3. Self-service Equipment

2. Gaming and amusement 4. Point-of-information

Accessories

1. Power Cord (US, EU or UK type)

2.Power Brick

3.User Manual (English only)

Specifications

Case/Bezel Color		Black/Silvery/white(Customized)
Display Size		19"
LCD Type		TFT LCD(LED backlight)
Aspect ratio		5:04
Useful Screen Area		376.3 mm x 301.1 mm
Touch panel		Projected Capacitive touch screen
Touch response time		5ms (PCAP typical)
Touch Monitor Dimensions		415 x 343 x 54 mm
Optimal (native) Resolution		1280 x 1024
Extend interface		USB2.04Com21*PLTHDD&SSD&CF Card external interface
output Video signal connector		USB2.04Com21*PLTHDD&SSD&CF Card external interface
Input interface		USB 2.04(USB 3.02 optional)PCI-E(3G SIM card, WIFI and Bluetooth optional)
		Earphone1Mic1Com3RJ451
LCD panel Pixel pitch		0.294 x 0.294 mm
LCD panel Colors		16.7 million
LCD panel Brightness		250 cd/m2 (high brightness customized upto 1000 cd/m2)
LCD panel Response Time		5ms
Viewing Angle (typical, from center)	Horizontal (left/right)	±85 or 170° total
	Vertical (up/down)	±80 or 160° total
Contrast Ratio		1000:01:00
Power Supply Type		Monitor input: +12VDC ±5%,4.0-6.0 A optional; DC Jack (2.5¢)
		AC to DC power brick input: 100-240 VAC, 50/60 Hz
		Power Consumption: 48W-72W optional
ECM (Embed Computer Modul)		ECM1: Intel® processor D2550 (Dual Core 1.86GHz,Fanless);
		ECM2: Intel® processor D2700 (Dual Core 2.13GHz,Fanless);
		ECM3: Intel® processor P8600 (Dual Core 2.4GHz,Fan-cool);
		ECM4: Intel® processor i3 2310M(Dual Core 2.1GHz, Fan-cool);
		ECM5: Intel® processor i5 2415M (Dual Core 2.3GHz/2.9GHz Turbo, Fan-cool);
		ECM6: Intel® processor i7 2620M (Dual Core 2.7GHz/3.4GHz Turbo, Fan-cool);
		HDD:500G(1TB optional);SDD:32G(up to 128G optional);
		CF Card 32G(up to 128G Optional); Memory: DDR3 2G(up to 8G);
		Operation System: Win7Pos ready7Win8.1XPWinCEVistaLinux
		ECM7: Android dual core 1.5G, Rom 1G,Flash 4G
		ECM8: Android quad-core 1.2G,Rom 1G, Flash 4G
		OperationSystem:4.2.2
Memory		DDR3 2G(up to 8G optional)
Temperature		Operating: 0°C to 40°C ;Storage -20°C to 60°C
Humidity (non condensing)		Operating: 20%-80%; Storage: 10%-90%
Shipping Carton Dimensions		516 x 206 x 456 mm
Weight (approx.)		Actual: 5.8 kg ;Shipping: 7.2 kg
Warranty Monitor		3 years(Except for LCD panel 1 year)
		Backlight lamp life: typical 50,000 hours to half brightness
Agency Approvals		CE/FCC RoHS(UL GS optional)
Mounting Options		75 mm and 100mm VESA mount

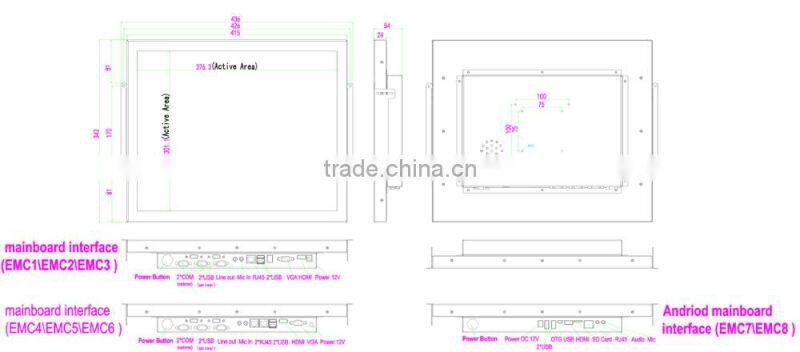

Drawings

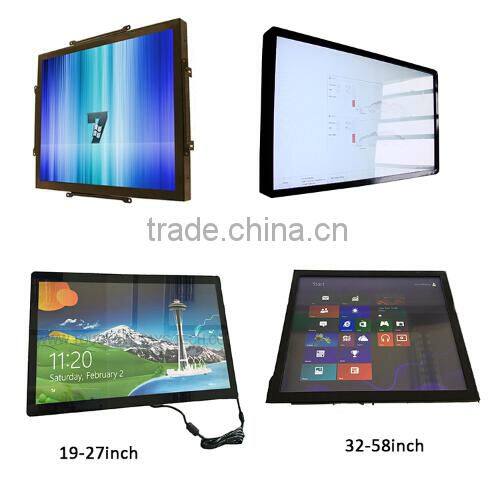

More to Choose

Company Profile

Certifications

Our Service

On-Time Delivery: Full refund if product isn't received in guaranteed delivery time

Returns & Refund: Full refund if product isn't received in guaranteed delivery time

Longer Protection: 15 days more protection after order completion

Returns Extra: Return any prodct,only those in perfect condition

Guaranteed Quality: Guaranteed quality of full refund

Payment:

We accept: T/T, Wester union, Paypal.

T/T payment, It is available for any orders once the value more than $800.00. Wester union payment,

It is available for any orders.

Paypal Payment, It is available for any orders once the value less than $1000.00.

Shipment : We ship worldwide by EMS, DHL, UPS, FedEx, TNT, China Post, E-packet,Singapore Post,Hong Kong

Post and so on.We are unable to control the delivery time because it is processed by Third-party service, but if the parcel has not arrive within expected time, please contact us, we will help you to track it

and give you a satisfied reply.

If you are staisfied with our product and service, Please leave Us postive feedback & a 5 star review!

We are looking forward to establishing a long-term partnership with you!
