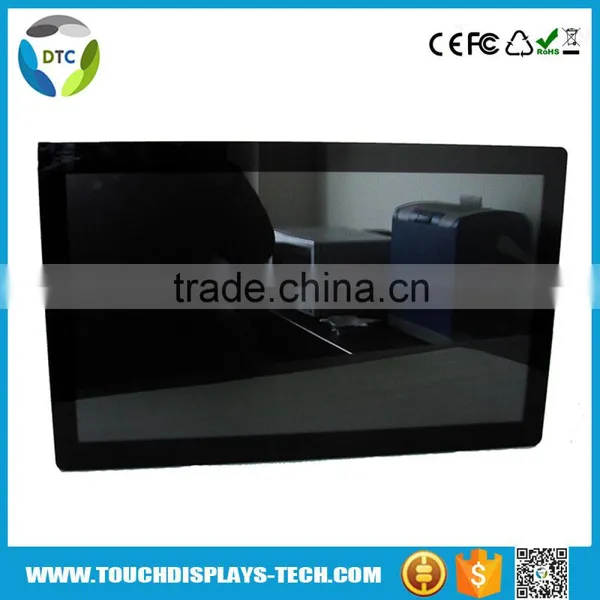

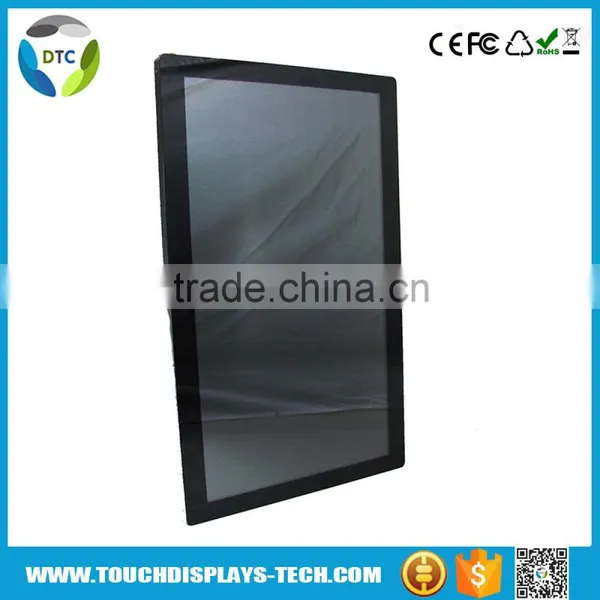

18.5" Digital Lcd Monitor Touch Screen POS/kiosks Monitor
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
TouchDisplays
Model Number:
1851E-IOT
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
18.5" High Brightness Advertising Stands for Kiosk LCD MonitorNegotiableMOQ: 1 Unit -
Digital Signage With Wifi Android 3g/lcd Network Advertising Player 27inchNegotiableMOQ: 1 Unit
-
Factory Price High Quality Led Ultra-thin Floor Standing Digital SignageNegotiableMOQ: 1 Unit
-
27 Inch Advertising Display / Led Outdoor Digital SignageNegotiableMOQ: 1 Unit
-
18.5 Inch Magic Mirror Digital SignageNegotiableMOQ: 1 Unit
Place of Origin
Sichuan, China
Brand Name
TouchDisplays
Model Number
1851E-IOT
Type
TFT
Application
Indoor
Panel Size
18.5"
Max Resolution
1366 x 768
Viewing Angle
409.8 (H) x 230.4 (V) mm
Pixel Pitch
0.3 x 0.3 mm
Color
16.7 million
Contrast Ratio
1000:1
Brightness
250 cd/m2
Response Time
8s
Input Voltage
100-240 VAC
18.5" Digital lcd Monitor Touch Screen POS/kiosks Monitor
Product Overview |
Features
1.Small footprint , retail-hardended , flexible touchcpmputers
2.1000:1 contrast ratio, and 250-nit brightness (LCD panel)
3. Long lasting product cycle-enclosure

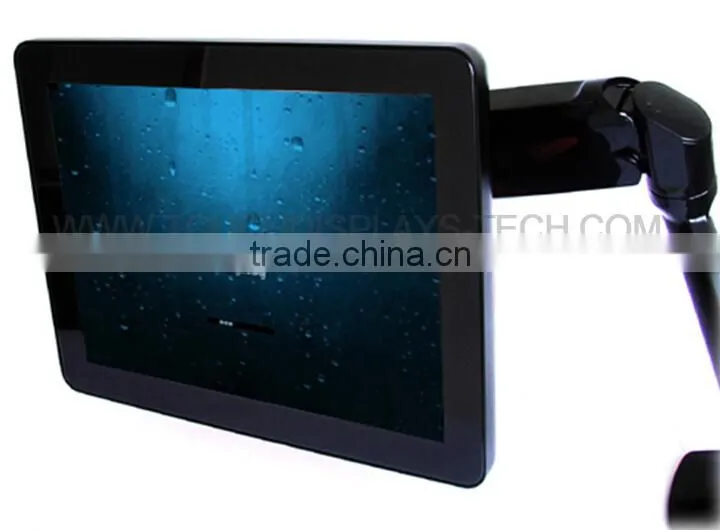

4.Mounting including VESA mount
5. High quality panel with 170° x 160° viewing angle
6.Optional front mount and rack mount bezels
7.Front bezel be sealed IP64 optional
8. Fully RoHS compliant
9. Projected Capacitive Multi-touch Technology

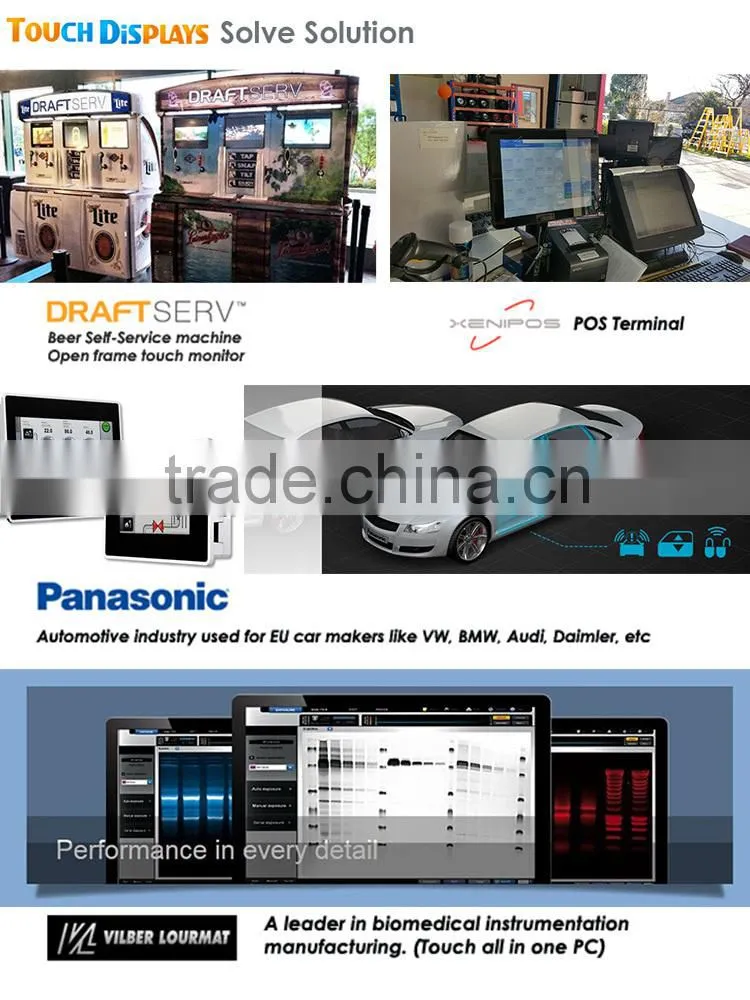

Applications
1. Countertop kiosk information systems
2.Gaming and amusement
3. Point-of-sale (POS)
4. Point-of-information
Accessories
1.Power Cord (US, EU or UK type)
2.Power Brick
3.User Manual (English only)

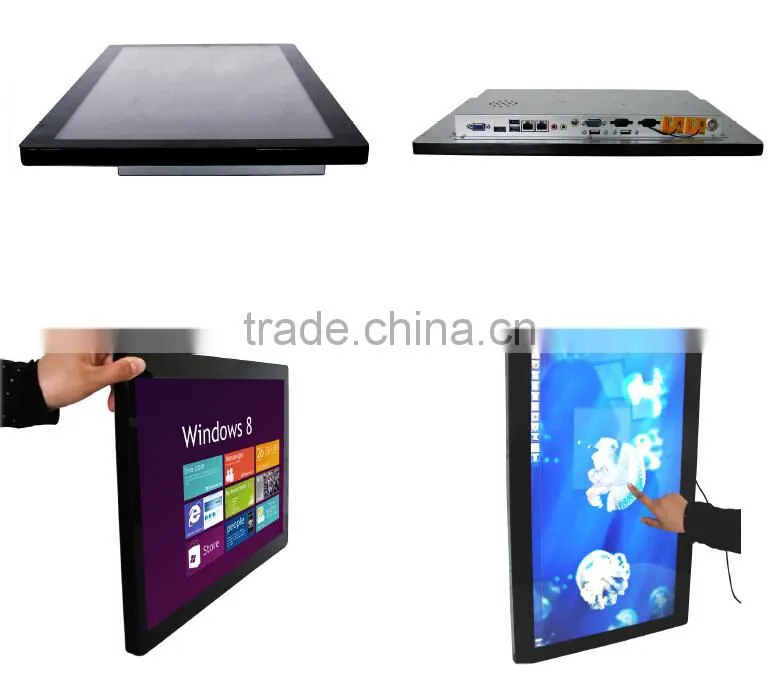

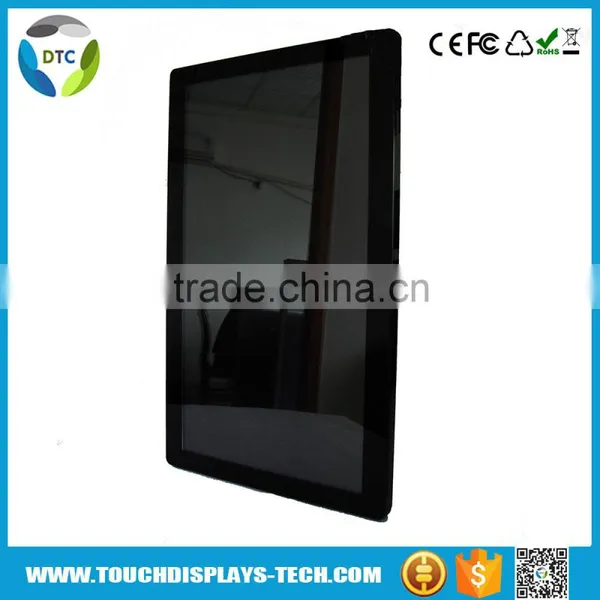

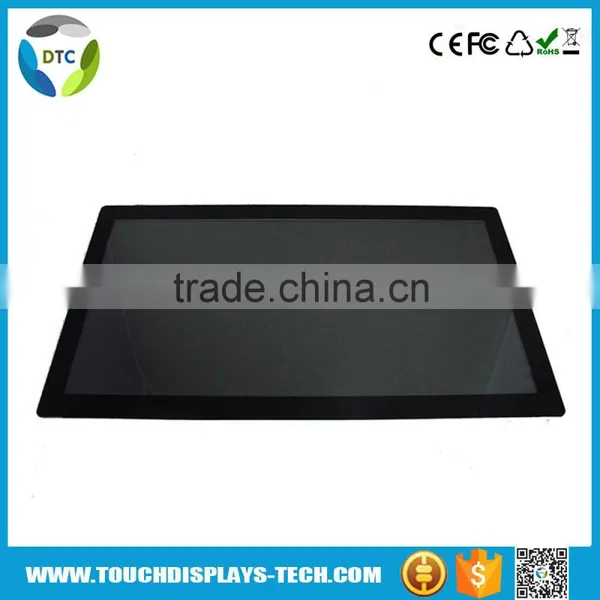

Product Picture & Specification |
| Model | 1851E-IOT | |
| Case/Bezel Color | Black/Silvery/white(Customized) | |
| Display Size | 18.5" | |
| Touch panel | Projected Capacitive touch screen | |
| Touch response time | 8ms (PCT typical) | |
| Touchcomputors Dimensions | 452.8 x 45.6 x 281.4 mm | |
| LCD Type | TFT LCD(LED backlight) | |
| Useful Screen Area | 409.8 (H) x 230.4 (V) mm | |
| Aspect ratio | 16:9 | |
| Optimal (native) Resolution | 1366 x 768 | |
| LCD panel Pixel pitch | 0.3 x 0.3 mm | |
| LCD panel Colors | 16.7 million | |
| LCD panel Brightness | 250 cd/m2 (high brightness customized up to 1000 cd/m2) | |
| LCD panel Response Time | 5 ms | |
| LCD panel Contrast Ratio | 1000:1 | |
|
Viewing Angle (typicalr from center) |
Horizontal (left/right |
±85° or Viewing Angle 170° total( true viewing angle ) |
|
Vertical (up/down |
±80° or 16° total( true viewing angle ) | |
| output Video signal connector | Mini D-Sub 15-Pin VGA type and HDMI type | |
| Input interface |
USB 2.0*4(USB 3.0*2 optional)PCI-E(3G SIM card, WIFI and Bluetooth optional) |
|
| Earphone*1Mic*1Com*3RJ45*1 | ||
| Extend interface |
USB2.0*4Com*21*PLT HDD&SSD&CF Card external interface |
|
| Power Supply Type |
Monitor input: +12VDC ±5% r 4.0-6.0 A optional; DC Jack (2.5) |
|
| AC to DC power brick input: 100-240 VACr 50/60 Hz | ||
| Power Consumption: 40W optional | ||
|
ECM (Embed Computer Modul) |
ECM1: Intel® processor D2550 or 1037U (Dual Core 1.86GHz,Fanless); ECM2: Intel® processor P8400 (Dual Core 2.13GHz,Fanless); ECM3: Intel® processor P8600 (Dual Core 2.4GHz,Fan-cool); ECM4: Intel® processor i3-2310M & J1900 (Dual Core 2.1GHz, Fan-cool); ECM5: Intel® processor i5-2410M (Dual Core 2.3GHz/2.9GHz Turbo, Fan-cool); ECM6: Intel® processor i7-2620M (Dual Core 2.7GHz/3.4GHz Turbo, Fan-cool); HDD:500G(1TB optional);SDD:32G (up to 128G optional); CF Card 32G(up to 128G Optional); Operation System: POS Ready7 Win7Win8XPWinCEVistaLinux ECM7: Android dual core 1G, Rom 1G,Flash 2G ECM8: Android quad-core 1.2G,Rom 1G, Flash 4G Operation System: 4.2 or 4.4.2 |
|
| Memory | DDR3 2G(up to 8G optional) | |
| Temperature | Operating: 0°C to 40°C ;Storage -20°C to 60°C | |
| Humidity (non condensing) | Operating: 20%-80%; Storage: 10%-90% | |
| Shipping Carton Dimensions | 556 x 206 x 456 mm(2 pcs) | |
| Weight (approx.) | Actual: 4.4 kg ;Shipping: 13 kg | |
| Warranty Monitor | 3 years(Except for LCD panel 1 year) | |
| Backlight lamp life: typical 30,000 hours to half brightness | ||
| Agency Approvals | CE/FCC RoHS(UL GS optional) | |

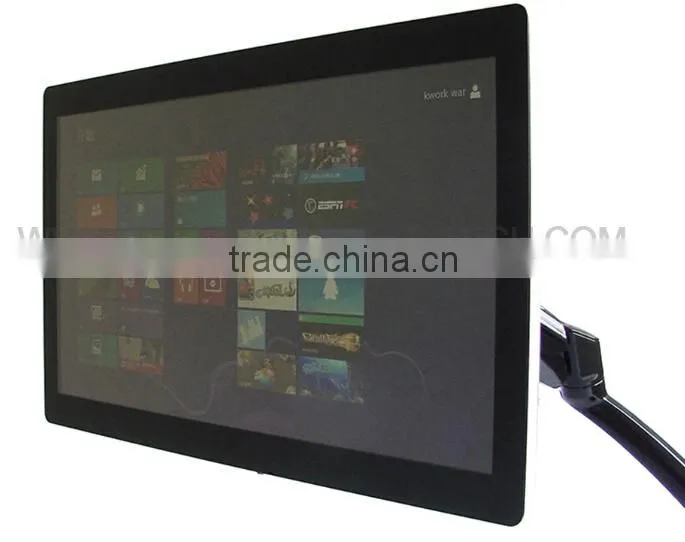

| Mounting Options | 75 mm and 100mm VESA mount | |
Drawings |

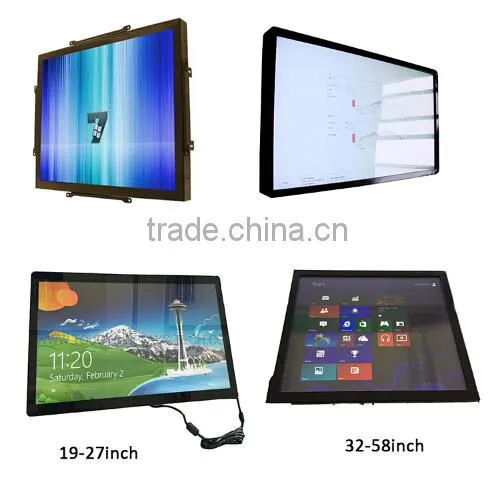

More to Choose |
