Surface Mounted Install Style and Ceiling Lights Item Type IP65 Dimmable LED ceiling light
Specifications--
led ceiling light CLR315 Series---Microwave sensor,Dimmable,Emergency
Rated Voltage |
220-240VAC |
Wattage |
18W |
Lumens Flux |
1600lm |
Temperature |
--40℃~50℃ |
ED chip |
SMD2835 Epistar |
Driver |
built-in power--TUV certified |
Power factor |
0.9 |
Beam Angle |
150 degrees |
CRI |
>80 |
Lifespan |
50,000 hours |
Emergency(yes/no) |
YES –3w Emergency |
Microwave sensor(yes/no) |
YES |
Dimmable (yes/no) |
YES 1-10V dimmable |
IP Grade |
IP65 |
Dimensions |

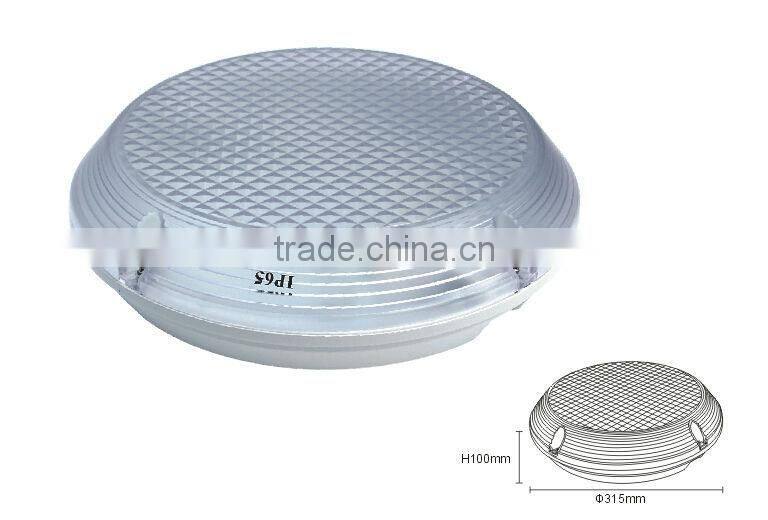

315mm*100mm(CLR315 series) |
Warranty |
5 years |
Certifications |
CE&ROHS*DLC&TUV&FCC |
Emergency time |
Output power |
batteries |
3 hours |
3W |
12V 1600mAh NiMH |
2.Microwave Sensor option
Input Voltage |
DC 5V |
Microwave radiation frequency |
ISM 5.8GHZ |
Recommend installation height |
2.5m |
Built in daylight sensor |
below 25Lux |
Detecting distance |
5-6m |
Detecting direction |
360° |
Wiring instructions
1. Emergency option
2.Microwave Sensor option
Detail photos for above Surface Mounted Install Style and Ceiling Lights Item Type IP65 Dimmable LED ceiling light
Product Features
• Integral emergency options; Microwave sensor; 1-10V dimmable options
• IP65 protection class,waterproof,dustproof,moistureproof.
• Overall profile radiator professional thermal management.
• Long lifespan (over 50000 hrs), 5 years warranty.
• Comply with latest safety and EMC standard.
• Better lighting uniformity by adopting high - performance.
• No harmful ultraviolet (UV) rays.
• Conform to ROHS,no any harmful substance.
• Available in cool white, neutral white, and warm white color.
• With built-in power supply,security,beautiful and easy installation.
Specially,there are 6 options for you!
Part No. |
Color Temp. |
Output power |
Input power |
Lumen Flux |
Note |
CLR315 |
2700K-6500K |
15W |
18W |
1600lm |
Standard |
CLR315-E |
2700K-6500K |
17W |
22W |
1800lm(E:400LM) |
3W Emergency |
CLR315-MWS |
2700K-6500K |
18W |
22W |
1600lm |
Microwave sensor |
CLR315-MWS-E |
2700K-6500K |
20W |
26W |
1800lm(E:400LM) |
3W Emergency and Microwave sensor |
CLR315-VD |
2700K-6500K |
18W |
22W |
1600lm |
1-10V Dimmable |
CLR315-VD-E |
2700K-6500K |
20W |
26W |
1800lm(E:400LM) |
3W Emergency and 1-10V Dimmable |

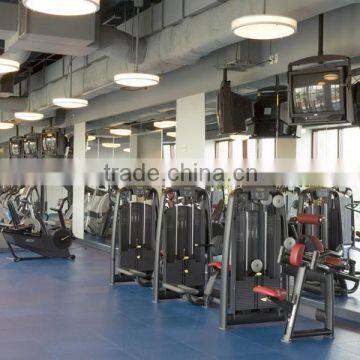

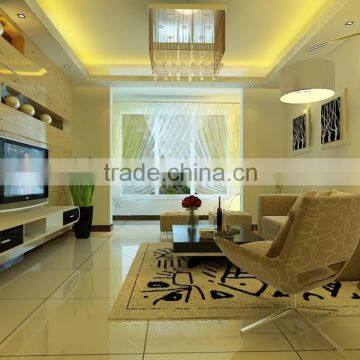

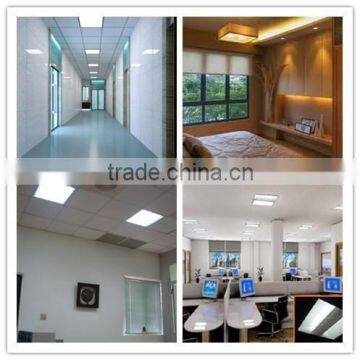

Application:
Hotel &restaurant; School & Offices. Supermarket & Hospital Commercial Complexes,
Residential/Institution Buildings Corridor, Hall, Stairway entrance lighting Place,etc.

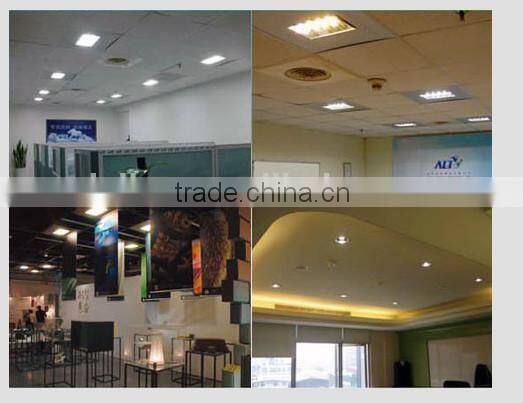

Project Case
Payment Terms: T/T,paypal,western uinon,moneygram 30% deposits before production, 70% balance to be paid before shipment.
Packing Details:
1.the lamp fixed with foam models
2.Kraft carton sealing
3.wooden crate could make sure safety enough for speical parts.
Shipping Details:
1.Delivery date:with 3~5days for samples,and 7~10days for large quantity after receive payment.
2.Shipping port: Shenzhen(Yantian),Hongkong
1.Your inquiry for above Surface Mounted Install Style and Ceiling Lights Item Type IP65 Dimmable LED ceiling light will be replied during 12 hours
2.Service time:7days x 24 hours
3.Advanced production technology,Experienced production workers,Standard package,quick delivery.
4.A department will do service with your product after-sale.
DAILUX Energy-saving Technology is committed to providing state-of-the-art energy saving products and services that will save our clients money and help them reduce their environmental footprint. DAILUX Energy-saving Technology works with industrial, commercial and residential establishments lighting throughout North America and Europe market and has selective distribution.Now,We offer energy efficient LED products including PAR56 LED Bulb, LED high bay lamp, Module led high bay, LED tri-proof light, LED retrofit corn bulbs.
The management at DAILUX Energy-saving Technology has:
- 12 years experience in LED lighting and and development of LED radiator we r &d team,.
- over 4 years of sales management and product development experience.
- an intrinsic understanding of how electricity works.
- Rapid and satisfying after-sale services.
- Rapid turnaround time for customized solutions
Our Certifications:
Unique advantages of Dailux Energy Saving lamp
Dailux Energy Saving factory
Q1:What's the warranty?
A1:We are offering 5 years warranty for products,if any quality problems on your side occured in this period,we'll take on the shipping cost and replacement.
Q2:What's the colour temperature?
A2:Dailux Energy Saving offer lamps in warm,natural,pure and cool white with colour temperatures measured in Kelvin(K),the lower the colour temperature is,the warmer the light given by the LED.
warm white:2700-3500K natural white:4000-4500K
pure white:5000-5500K cool white:6000-6500K
Q3:What's the CRI?
A3:CRI is a figure which feedback the real objects colours,higher CRI with higher cost,For led tubes,the CRI is mostly 70-75Ra,and 80Ra with higher cost but there are some suppliers write a high data to attract clients,pls note.
Q4:Do your led lights emit UV light?
A4:No,but you should never point an led light into your eyes,the light is very bright and could cause damage.
Q5: Do you offer free sample of Surface Mounted Install Style and Ceiling Lights Item Type IP65 Dimmable LED ceiling light?
A5:Samples are not free, but we will return samples fee when you placing bulk quantity order at next time.
Q6: Do you have other shape of Surface Mounted Install Style and Ceiling Lights Item Type IP65 Dimmable LED ceiling light?

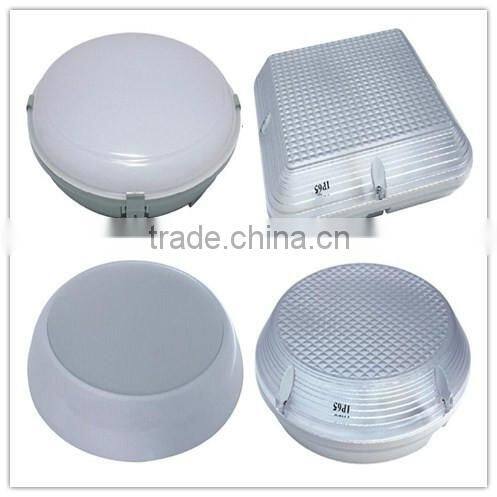

A6:Yes,there are 2 options for you.rectangle/square shape,round shape.The clear pictures pls see as below:
Dailux original design LED solutions
Thanks for your visiting above light,waiting for your coming~
